Electro-hydraulic front and rear differential lock, Terralock automatic diff lock and 4WD management (standard)
Terralock automatic traction management: automatic 4WD engagement and front and rear differential locks
Frame Type
Not Published
Not Published
Steering
Power steering
Not Published
Brakes
Hydraulic wet disc
Not Published
Seat Suspension & Adjustability
Comfort seat with low-frequency suspension standard; Dynamic Comfort (dynamic damping, heated) and Auto Comfort (semi-active, heated and ventilated) seats optional
Comfort seat with low-frequency suspension standard; Dynamic Comfort seat (low-frequency suspension, heated) and Auto Comfort seat (active suspension, heated and ventilated) optional; swiveling backrest; Comfort Ride cab suspension optional
Front Axle Type
Class 1.75 heavy-duty 4WD front axle (Terraglide front axle suspension optional)
Standard FWD axle (Class 3 and 4); Terraglide suspended FWD axle or SuperSteer FWD axle optional; heavy-duty 2WD axle available on Electro Command models
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
173 in
204.3 in (front linkage to rear linkage)
Overall Width
90 in standard (74 in minimum, narrow)
89.8 in (minimum; 91 in with 650/65R38 tires)
Wheelbase
98 in
Standard FWD axle: 104 in; Terraglide suspended axle: 105.7 in; SuperSteer axle: 109.8 in; 2WD: 96 in
Ground Clearance
Not Published
18.8 in (18.4R38, 520/70R38 or 600/65R38 rear tires; 16.8 in with 16.9R38, 20.8 in with 650/65R38)
Min. Turn Radius without Brakes
182 in
15.1 ft (standard FWD axle, 55 degree turn angle); 14.1 ft (2WD or SuperSteer axle, 65 degree turn angle)
Height to Top of ROPS
Not Published
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
106 in (low-profile roof, 540/65R34 tires)
115.2 in (standard cab, 18.4R38 tires); 110.4 in (low profile cab); 117.7 in (Comfort Ride suspension cab)

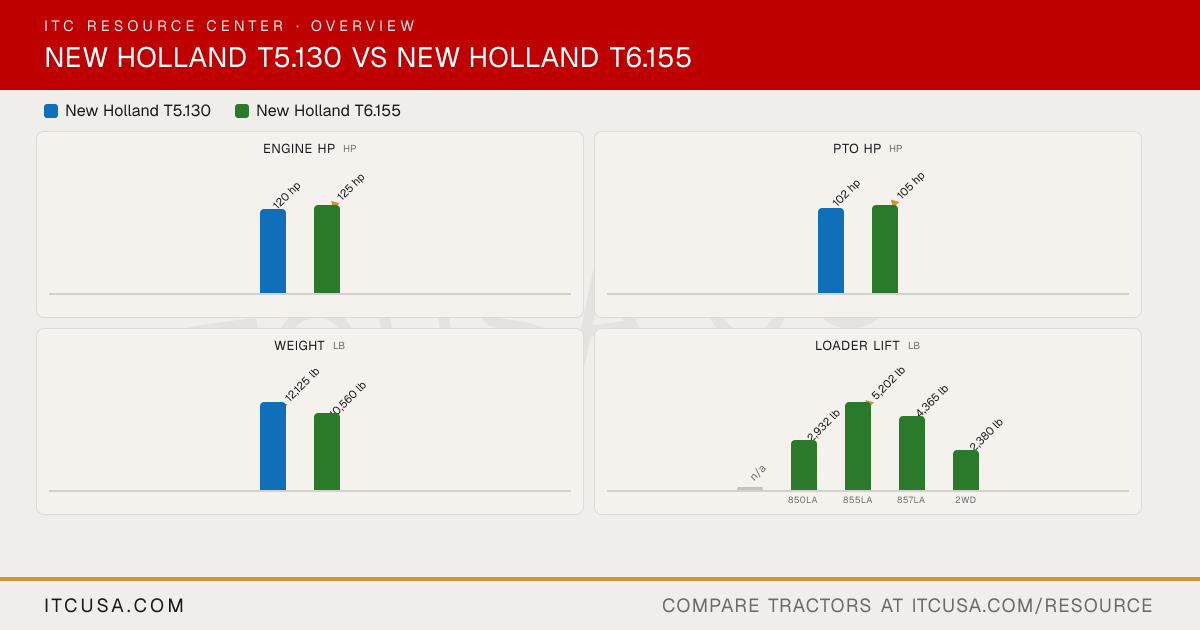

Tractor Weight (Base)
12,125 lb (minimum shipping weight, cab)
10,560 lb (minimum shipping weight, cab FWD, less ballast; average 11,376 lb, maximum 12,513 lb; 2WD is 1,234 lb less)
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Not Published
Rear: 16.9R38, 18.4R38, 520/70R38, 600/65R38, 650/65R38 (Comfort Ride cab only), 480/70R38, 540/65R38 or 650/60R38 with matching front tires
