| Engine Manufacturer | FPT | FPT |
|---|
| Engine Model | NEF4 | F36 |
|---|
| Engine Type | 4-cylinder diesel | 4-cylinder |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 273 in³ | Not Published |
|---|
| Rated Engine Speed | 2200 rpm | Not Published |
|---|

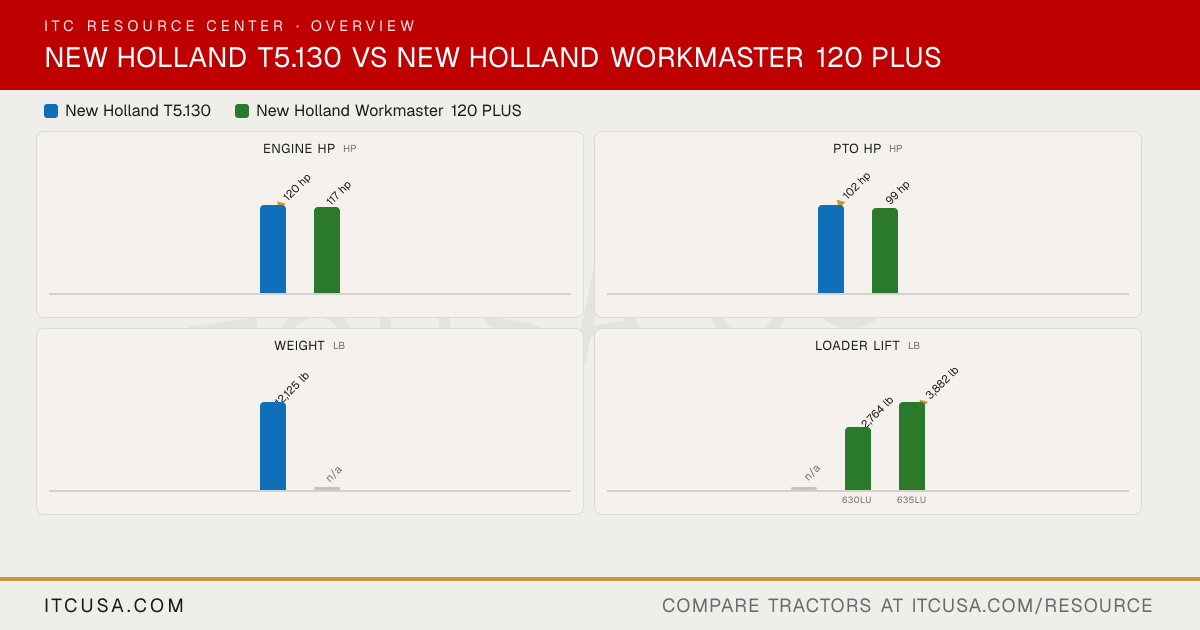

| Engine Power (Gross) | 120 hp | 117 hp |
|---|
| PTO Power | 102 hp | 99 hp |
|---|
| Engine Emissions Constraints | Stage V | Not Published |
|---|
| Cooling System Type | Liquid cooled | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Not Published | Not Published |
|---|
| Alternator | 120 A | Not Published |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Implement Flow | 21.1 gpm (29 gpm MegaFlow CCLS pump optional) | Not Published |
|---|
| Steering Flow | 9.6 gpm | Not Published |
|---|
| Total Hydraulic Flow | Not Published | 26.6 gpm |
|---|
| Overall Hydraulic Pump Flow | Not Published | Not Published |
|---|
| Hydraulic System Type | Closed center load sensing (CCLS) | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | Not Published |
|---|
| No. of Optional Remote Valves | Up to 4 rear (up to 3 mid-mount) | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 47.5 gal | 34.3 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Direct-drive PTO with push-pull engagement and Soft Start | Not Published |
|---|
| PTO Rear | 540/540E/1000 rpm | Not Published |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II | Not Published |
|---|
| Hitch Lift Capacity | 12,125 lb (at ball ends) | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 10,228 lb | Not Published |
|---|
| Lift Control Type | Electronic Draft Control (EDC) | Not Published |
|---|
|
|---|
| Transmission Type | Dynamic Command: 24x24 dual-clutch 8-step semi-powershift; Auto Command: continuously variable (CVT) | 12x12 electronic power shuttle |
|---|
| No. of Speeds | Dynamic Command: 24F/24R; Auto Command: continuously variable | 12 forward / 12 reverse |
|---|
| Max Travel Speed (Forward) | 25 mph | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Terralock automatic differential lock and automatic 4WD (standard) | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Power steering | Not Published |
|---|
| Brakes | Hydraulic wet disc | Not Published |
|---|
| Seat Suspension & Adjustability | Standard: low-frequency suspension seat; optional: heated seat with dynamic damping, or heated and ventilated semi-active-suspension seat | Air ride seat (standard); instructor seat available |
|---|
| Front Axle Type | Class 1.75 heavy-duty 4WD front axle; Terraglide suspension optional | Class 1.0 HD heavy-duty front axle |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Width | 90 in standard (74 in minimum, narrow) | Not Published |
|---|
| Wheelbase | 98 in | Not Published |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | 182 in | Not Published |
|---|
| Height to Top of ROPS | Not Published | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 106 in (low-profile roof, 540/65R34 tires) | Not Published |
|---|
| Overall Length | 173 in (max, weight carrier to rear linkage) | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | Not Published | Not Published |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Not Published | Not Published |
|---|
| R1 Agricultural - Front | Not Published | Not Published |
|---|
| R1 Agricultural - Rear | Not Published | Not Published |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Skid-steer style or European style attachment system | Not Published |
|---|
| Loader Model | 800TL Series wide-frame loader (NSL or MSL) | 630LU; 635LU |
|---|
| Loader Lift Height | Not Published | 143.9 in (630LU and 635LU) |
|---|
| Loader Lift Capacity (Full Height) | Not Published | 630LU: 2,764 lb; 635LU: 3,882 lb (at max height, @ 31.5 in) |
|---|
| Loader Breakout Force | Not Published | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
