Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

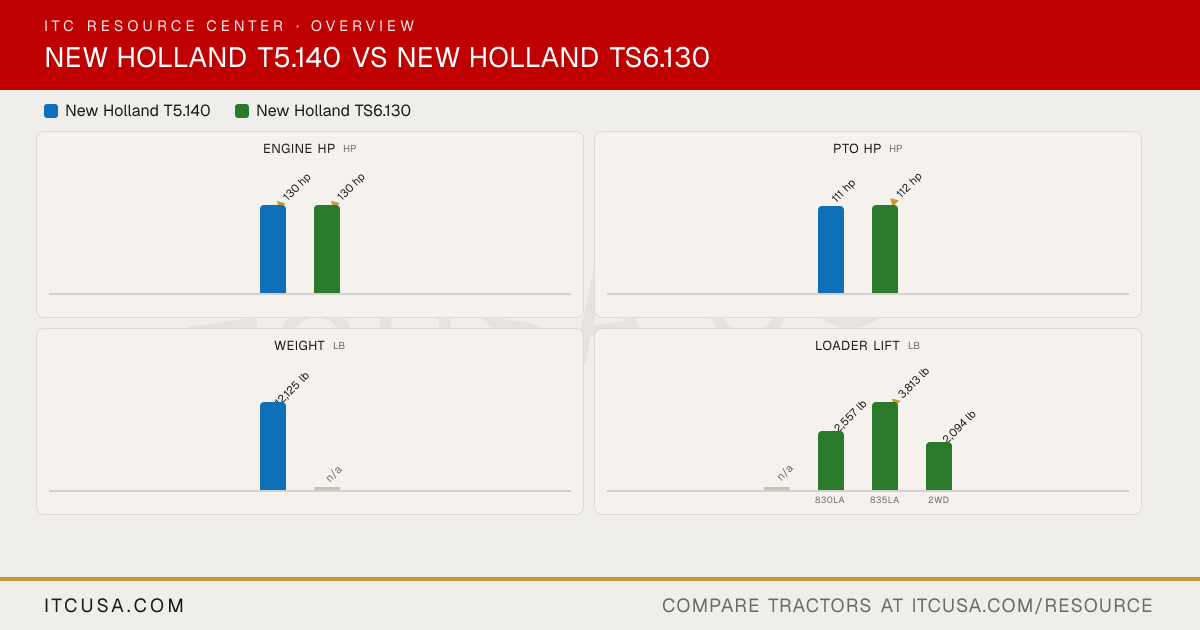

Across 5 measurable specs, this matchup is a dead heat: 2 categories to the New Holland T5.140, 2 to the New Holland TS6.130, 1 tied. Machine pages: New Holland T5.140 and New Holland TS6.130.
Terralock Auto Diff and Auto 4WD (standard); electro-hydraulic front and rear differential lock
Not Published
Frame Type
Not Published
Not Published
Steering
Power steering
Not Published
Brakes
Hydraulic wet disc
Not Published
Seat Suspension & Adjustability
Comfort seat, low-frequency suspension, cloth (standard); Dynamic Comfort or Auto Comfort seats with heating and active ventilation (optional); instructor seat optional
Mechanical suspension seat standard; deluxe air suspension seat with swivel and full-size cushioned instructor seat optional (VisionView cab)
Front Axle Type
Class 1.75 heavy-duty 4WD front axle (standard); Terraglide front axle suspension (optional)
Heavy-duty front axle, 2WD or 4WD (both optional, cab only)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
173 in (max, weight carrier to rear linkage)
184.7 in (4WD, with front weights); 184.5 in (2WD, with front weights)
Overall Width
74 in (narrow); 90 in (standard)
Not Published
Wheelbase
98 in
Not Published
Ground Clearance
Not Published
Not Published
Min. Turn Radius without Brakes
182 in (4WD / Terraglide suspended front axle; brake use not stated)
