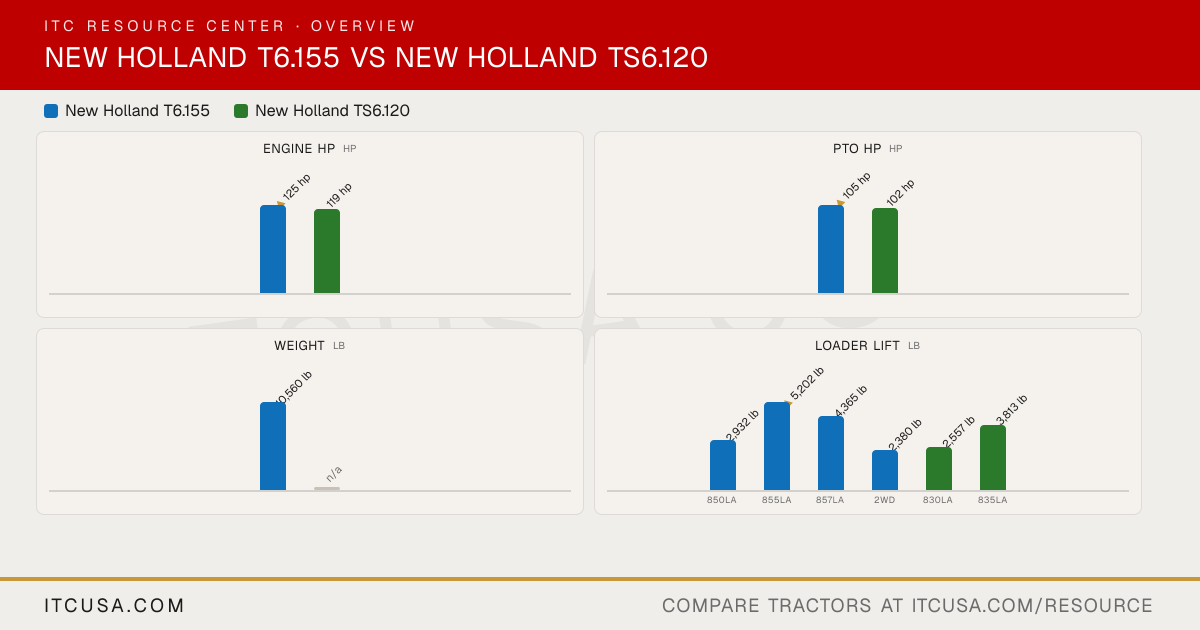

▶ EngineEngine Manufacturer FPT FPT Engine Model NEF NEF Engine Type 4-cylinder, 16-valve, turbocharged, air-to-air intercooled diesel with high-pressure common rail and electronic fuel delivery control 4-cylinder, 16-valve, turbocharged, air-to-air intercooled diesel with high-pressure common rail No. of Cylinders 4 4 Displacement 274 in³ 274 in³ Rated Engine Speed 2100 rpm 2200 rpm Engine Power (Gross) 125 hp 119 hp PTO Power 105 hp 102 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Not Published Not Published Air Cleaner Not Published Not Published Fuel System High-pressure common rail with electronic fuel delivery control High-pressure common rail fuel injection Alternator 150 A 120 A ▶ HydraulicsPump Type Value: fixed displacement implement pump; Plus, Elite, Dynamic Command: closed-center load-sensing (CCLS) pump Fixed displacement pumps (steering, implement, auxiliary) with combining/diverter valve Implement Flow Value: 21.1 gpm; Plus, Elite: 29.9 gpm 19 gpm (combined implement and auxiliary pump flow) Steering Flow 12.4 gpm (17.2 gpm optional pump with Class 4 front axle) 9 gpm Total Hydraulic Flow Value: 33.5 gpm (21.1 + 12.4, computed); Plus, Elite: 42.3 gpm (29.9 + 12.4, computed) 28 gpm Overall Hydraulic Pump Flow Value: 33.5 gpm (21.1 + 12.4, computed); Plus, Elite: 42.3 gpm (29.9 + 12.4, computed) 28 gpm Hydraulic System Type Value: fixed displacement (open) system; Plus, Elite, Dynamic Command: closed-center load-sensing (CCLS) Fixed displacement pumps with combining/diverter valve; deluxe closed-center rear remote valves with flow control Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 mechanical (Value, Plus, Elite) Not Published No. of Optional Remote Valves 3 or 4 mechanical; 3 or 4 electro-hydraulic (Elite); 2 or 3 mid-mount valves (mechanical or electronic) Not Published ▶ Fluid CapacityFuel Tank Capacity 52.2 gal (58.6 gal with auxiliary tank); Dynamic Command: 60 gal 57.5 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent, direct-drive PTO with push-pull engagement and Soft Start; reversible PTO shaft Not Published PTO Rear 540/1000 rpm (540 at 1969 engine rpm, 1000 at 1893 engine rpm) 540/1000 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Not Published Category II (flex link ends) Hitch Lift Capacity Not Published 3,735 lb (ASAE); 5,499 lb with one optional auxiliary lift cylinder; 7,326 lb with two Hitch Lift Capacity (at 24”) Value: 8,338 lb; Auto Command: 9,214 lb; Plus, Elite and Auto Command with optional larger rams: 11,649 lb Not Published Lift Control Type Electronic draft control Not Published ▶ Transmission & DrivetrainTransmission Type Electro Command 16x16 semi-powershift (standard; AutoShift, 17x16 Economy, 17x16 Fast Mover 31 mph and 32x32 creeper options); Dynamic Command 23x23 semi-powershift (24x24 Economy, 31 mph and creeper options) 8x8 synchronized power shuttle (hydraulic, left-hand) standard; 16x8 Dual Power synchronized hydraulic shuttle with Hi-Lo (premium); 10:1 creeper optional; High-Clearance: 8x8 synchronized with left-hand mechanical shuttle (hydraulic shuttle optional) No. of Speeds Electro Command: 16F/16R (17F/16R Economy or Fast Mover, 32F/32R creeper); Dynamic Command: 23F/23R (24F/24R options) 8F/8R (base); 16F/8R (premium Dual Power with Hi-Lo); High-Clearance: 8F/8R Max Travel Speed (Forward) 25 mph (Electro Command 16x16 and Dynamic Command 23x23 standard); 31 mph (Fast Mover 17x16 and Dynamic Command 24x24 31 mph options, FWD only); 19 mph (2WD) 19 mph or 25 mph (25 mph 4WD only) Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Not Published Differential Lock & Limited Slip Options Terralock automatic traction management: automatic 4WD engagement and front and rear differential locks Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Not Published Not Published Brakes Not Published High-Clearance: internal wet brakes (external drop-box final drive rear axle) Seat Suspension & Adjustability Comfort seat with low-frequency suspension standard; Dynamic Comfort seat (low-frequency suspension, heated) and Auto Comfort seat (active suspension, heated and ventilated) optional; swiveling backrest; Comfort Ride cab suspension optional Mechanical suspension seat standard; deluxe air suspension seat with swivel and full-size cushioned instructor seat optional (VisionView cab) Front Axle Type Standard FWD axle (Class 3 and 4); Terraglide suspended FWD axle or SuperSteer FWD axle optional; heavy-duty 2WD axle available on Electro Command models 4WD heavy-duty front axle, Standard Duty Class 3 (4WD only, cab or ROPS); High-Clearance: 4WD with electro-hydraulic on-the-go engagement, 72 to 84 in adjustable front tread Front Axle Rating Not Published Not Published Drawbar Capacity Not Published High-Clearance pintle hitch: 3,975 lb vertical load; 8,362 lb horizontal towing weight ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 204.3 in (front linkage to rear linkage) 184.7 in (4WD, with front weights); High-Clearance: 192.9 in (4WD, with front weights) Overall Width 89.8 in (minimum; 91 in with 650/65R38 tires) Not Published Wheelbase Standard FWD axle: 104 in; Terraglide suspended axle: 105.7 in; SuperSteer axle: 109.8 in; 2WD: 96 in 99.2 in (4WD, Standard Duty Class 3 axle); High-Clearance: 107.5 in Ground Clearance 18.8 in (18.4R38, 520/70R38 or 600/65R38 rear tires; 16.8 in with 16.9R38, 20.8 in with 650/65R38) High-Clearance: 25.25 in (lowest part of front axle) Min. Turn Radius without Brakes 15.1 ft (standard FWD axle, 55 degree turn angle); 14.1 ft (2WD or SuperSteer axle, 65 degree turn angle) Not Published Height to Top of ROPS Not Published 117.3 in; High-Clearance: 128.9 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 115.2 in (standard cab, 18.4R38 tires); 110.4 in (low profile cab); 117.7 in (Comfort Ride suspension cab) 110.2 in ▶ WeightTractor Weight (Base) 10,560 lb (minimum shipping weight, cab FWD, less ballast; average 11,376 lb, maximum 12,513 lb; 2WD is 1,234 lb less) 10,362 lb (shipping, 4WD, ROPS, flange axle); 11,002 lb (4WD, ROPS, bar axle); 11,200 lb (4WD, cab, flange axle); 12,192 lb (4WD, cab, bar axle); High-Clearance: 10,957 lb (4WD, ROPS, flange axle) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Rear: 16.9R38, 18.4R38, 520/70R38, 600/65R38, 650/65R38 (Comfort Ride cab only), 480/70R38, 540/65R38 or 650/60R38 with matching front tires 18.4-38 R1 rear with 14.9-28 R1 front (4WD); High-Clearance: 13.6-38 R2 front and rear R1 Agricultural - Front Not Published 14.9-28 (4WD) R1 Agricultural - Rear 18.4R38 (reference tire; also 16.9R38, 520/70R38, 600/65R38, 650/65R38, 480/70R38, 540/65R38, 650/60R38) 18.4-38 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Euro style (850LA, 855LA, 857LA); Euro or skid steer style (810LA) Skid steer (SSL) or Euro style attachment couplers Loader Model FWD: 850LA (NSL), 855LA (MSL); SuperSteer FWD: 857LA (MSL); 2WD: 810LA (NSL) 830LA (NSL); 835LA (MSL) Loader Lift Height 850LA: 162.0 in; 855LA: 162.0 in; 857LA: 166.8 in; 810LA (2WD): 142.8 in (to pivot pin, base equipment tires) 830LA: 150.0 in; 835LA: 150.0 in (to pivot pin) Loader Lift Capacity (Full Height) 850LA: 2,932 lb; 855LA: 5,202 lb; 857LA: 4,365 lb; 810LA (2WD): 2,380 lb (to maximum height, measured 31.5 in forward of the pivot pin, with rear counterbalance) 830LA: 2,557 lb; 835LA: 3,813 lb (to maximum height, measured 31.5 in forward of the pivot pin) Loader Breakout Force 850LA: 4,673 lb; 855LA: 5,974 lb; 857LA: 4,894 lb; 810LA (2WD): 3,439 lb (measured 31.5 in forward of the pivot pin) 830LA: 3,681 lb; 835LA: 3,968 lb (measured 31.5 in forward of the pivot pin) ▶ WarrantyWarranty Length & Coverage Not Published Not Published
