Across 5 measurable specs, the New Holland TK4.80F leads 3 categories to 2. Machine pages: New Holland TK4.80F and New Holland Workmaster 75.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | New Holland TK4.80F | New Holland Workmaster 75 |
|---|
| Engine HP (hp) | ▲ 75 hp | 74 hp |
| PTO HP (hp) | ▲ 65 hp | 60 hp |
| Loader Lift (lb) | — | 3,153 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 7,793 lb | 3,500 lb |
| Lift Height (in) | — | 131.3 in |
| Hydraulic Flow (gpm) | 9.4 gpm | ▲ 20.2 gpm |
| Travel Speed (mph) | 6.8 mph | ▲ 25 mph |

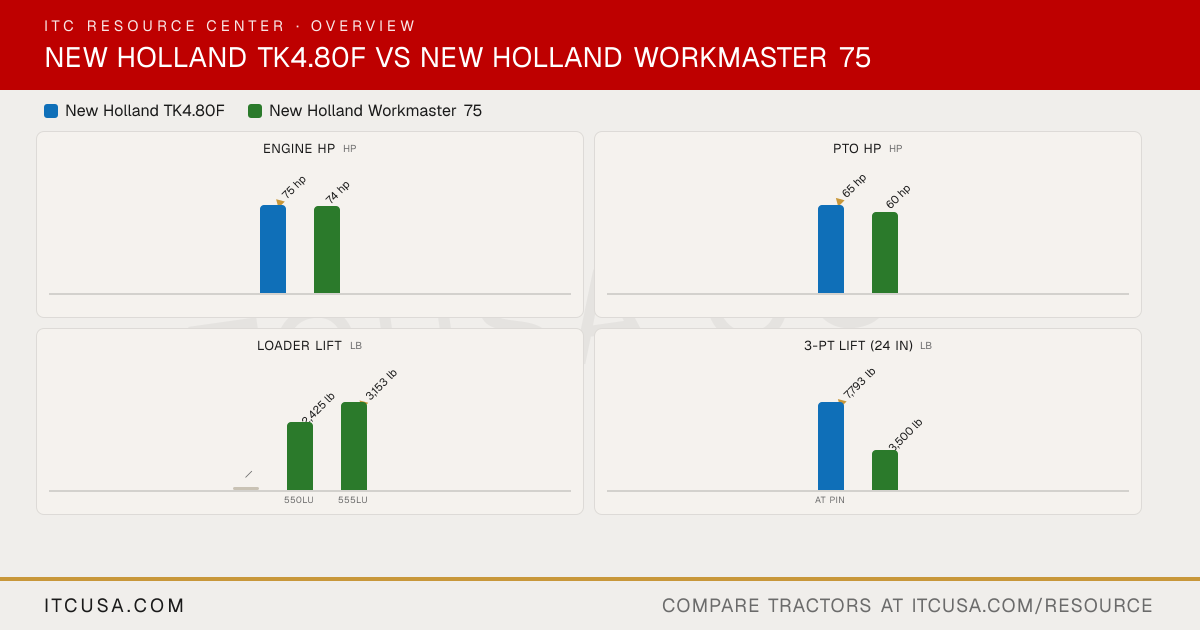

The headline numbers at a glance.
New Holland TK4.80FNew Holland Workmaster 75
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | New HollandTK4.80F | New HollandWorkmaster 75 |
|---|
|
|---|
| PTO Power | 65 hp | 60 hp |
|---|
| Alternator | Not Published | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Engine Type | Turbocharged intercooled diesel | Turbocharged 3-cylinder diesel |
|---|
| Fuel System | High pressure Common Rail | High-pressure common rail |
|---|
| Displacement | 207 in³ | 179 in³ |
|---|
| No. of Cylinders | 4 | 3 |
|---|
| Rated Engine Speed | 2300 rpm | 2300 rpm |
|---|
| Cooling System Type | Liquid-cooled | Not Published |
|---|
| Engine Manufacturer | FPT Industrial | FPT Industrial |
|---|
| Engine Power (Gross) | 75 hp | 74 hp |
|---|
| Engine Emissions Constraints | Tier 4A / Stage IIIB CEGR | Tier 4B CEGR + DOC (no DPF; no regeneration) |
|---|
|
|---|
| Weight with ROPS and Loader | Not Applicable | Not Published |
|---|
| Weight with Cab and Loader | Not Applicable | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
|
|---|
| Pump Type | Not Published | Dual pumps |
|---|
| Steering Flow | Not Published | 7.6 gpm |
|---|
| Implement Flow | 9.4 gpm | 12.6 gpm |
|---|
| Total Hydraulic Flow | Not Published | 20.2 gpm |
|---|
| Hydraulic System Type | Open center | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| Overall Hydraulic Pump Flow | Not Published | 20.2 gpm |
|---|
| No. of Optional Remote Valves | 4 | 1 |
|---|
| No. of Standard Remote Valves | Not Published | 2 |
|---|
|
|---|
| PTO Rear | 540/540E (Std); 540/1000 (Opt) | 540 rpm |
|---|
| PTO Type | Fully independent | Hydraulic wet clutch |
|---|
| Lift Control Type | Lift-O-Matic | Lift-O-Matic |
|---|
| Hitch Lift Capacity | 7,793 lb | Not Published |
|---|
| Mid-PTO Availability | Not Applicable | Not Published |
|---|
| Category, 3-Point Hitch | Not Published | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | Not Published | 3,500 lb |
|---|
|
|---|
| R3 Turf - Rear | Not Applicable | Not Published |
|---|
| R3 Turf - Front | Not Applicable | Not Published |
|---|
| Tire Size & Options | Not Applicable | Not Published |
|---|
| R4 Industrial - Rear | Not Applicable | Not Published |
|---|
| R4 Industrial - Front | Not Applicable | Not Published |
|---|
| R1 Agricultural - Rear | Not Applicable | Not Published |
|---|
| R1 Agricultural - Front | Not Applicable | Not Published |
|---|
|
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Fuel Tank Capacity | 21.1 gal | Not Published |
|---|
| Front Axle Fluid Capacity | Not Applicable | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
|
|---|
| Loader Lift Height | Not Applicable | 550LU: 131.3 in; 555LU: 130.0 in |
|---|
| Loader Breakout Force | Not Applicable | Not Published |
|---|
| Quick Attach Loader System | Not Applicable | 550LU, 555LU: 72 in bucket; SSL or Euro-style quick attach |
|---|
| Loader Lift Capacity (Full Height) | Not Applicable | 550LU: 2,425 lb; 555LU: 3,153 lb |
|---|
|
|---|
| Clutch | Not Published | Not Published |
|---|
| No. of Speeds | 8F/8R | 12F/12R |
|---|
| Transmission Type | Mechanical forward-reverse shuttle | 12x12 power shuttle |
|---|
| Max Travel Speed (Forward) | 6.8 mph | 25 mph |
|---|
| Max Travel Speed (Reverse) | 6.8 mph | Not Published |
|---|
| Differential Lock & Limited Slip Options | Not Applicable | Not Published |
|---|
|
|---|
| Brakes | Not Published | Not Published |
|---|
| Steering | Steering-O-Matic; Steering-O-Matic Plus (optional) | Not Published |
|---|
| Frame Type | Not Published | Not Published |
|---|
| Front Axle Type | Not Applicable | Not Published |
|---|
| Drawbar Capacity | 1,323 lb vertical load | Not Published |
|---|
| Front Axle Rating | Not Applicable | 6,500 lb dynamic capacity |
|---|
| Seat Suspension & Adjustability | Air suspended seat (optional) | ROPS: Not Published; CAB: Cloth air-suspension seat |
|---|
|
|---|
| Wheelbase | 52.8 in | 83.6 in |
|---|
| Overall Width | 55.1-57.1 in (1400-57.1 in) | Not Published |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Height to Top of ROPS | 94.1 in | 99.8 in |
|---|
| Height to Top of Cab Model | Not Applicable | 100.2 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Overall Length with 3-Point Hitch | 137.6 in | 154.1 in |
|---|
New Holland TK4.80F vs New Holland Workmaster 75: Quick Answers
- Which has more horsepower, the New Holland TK4.80F or the New Holland Workmaster 75?
- The New Holland TK4.80F leads on engine hp at 75 hp hp, compared to 74 hp hp for the New Holland Workmaster 75.
- Which has more PTO horsepower, the New Holland TK4.80F or the New Holland Workmaster 75?
- The New Holland TK4.80F leads on pto hp at 65 hp hp, compared to 60 hp hp for the New Holland Workmaster 75.
- Which has more three-point hitch lift capacity, the New Holland TK4.80F or the New Holland Workmaster 75?
- The New Holland TK4.80F leads on 3-pt lift (24 in) at 7,793 lb lb, compared to 3,500 lb lb for the New Holland Workmaster 75.
