| Engine Manufacturer | FPT | FPT |
|---|
| Engine Model | NEF | F36 |
|---|
| Engine Type | 4-cylinder, 16-valve, turbocharged and intercooled, common-rail diesel | 4-cylinder |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 274 in³ | Not Published |
|---|
| Rated Engine Speed | 2200 rpm | Not Published |
|---|

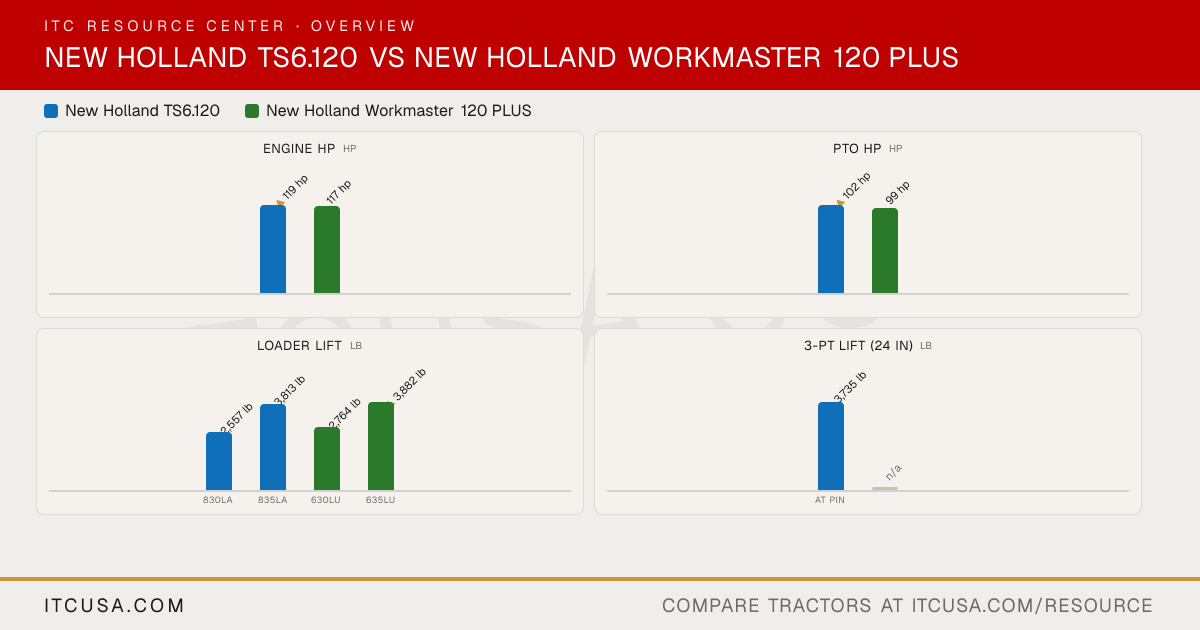

| Engine Power (Gross) | 119 hp | 117 hp |
|---|
| PTO Power | 102 hp | 99 hp |
|---|
| Engine Emissions Constraints | Tier 4B/Final | Not Published |
|---|
| Cooling System Type | Not Published | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | High-pressure common rail fuel injection | Not Published |
|---|
| Alternator | 120 A | Not Published |
|---|
|
|---|
| Pump Type | Fixed-displacement pumps for steering, implement and auxiliary circuits, with a combining/diverter valve | Not Published |
|---|
| Implement Flow | 13 gpm (implement pump); 9 gpm auxiliary pump standard on Plus, optional on Value | Not Published |
|---|
| Steering Flow | 7 gpm | Not Published |
|---|
| Total Hydraulic Flow | 29 gpm (with the 9 gpm auxiliary pump: standard on Plus, optional on Value) | 26.6 gpm |
|---|
| Overall Hydraulic Pump Flow | 29 gpm (with the 9 gpm auxiliary pump: standard on Plus, optional on Value) | Not Published |
|---|
| Hydraulic System Type | Fixed-displacement pumps with combining/diverter valve; closed-center rear remote valves with flow control | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | Not Published |
|---|
| No. of Optional Remote Valves | Not Published | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 57.5 gal | 34.3 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Not Published | Not Published |
|---|
| PTO Rear | 540/1000 rpm | Not Published |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II (flex link ends) | Not Published |
|---|
| Hitch Lift Capacity | 3,735 lb (ASAE); 5,499 lb with one optional auxiliary lift cylinder; 7,326 lb with two | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | Not Published | Not Published |
|---|
| Lift Control Type | Not Published | Not Published |
|---|
|
|---|
| Transmission Type | 8x8 synchronized power shuttle (hydraulic, left-hand) standard; 16x8 Dual Power synchronized hydraulic shuttle with Hi-Lo (premium); 10:1 creeper optional; High-Clearance: 8x8 synchronized with left-hand mechanical shuttle (hydraulic shuttle optional) | 12x12 electronic power shuttle |
|---|
| No. of Speeds | 8F/8R (base); 16F/8R (premium Dual Power with Hi-Lo); High-Clearance: 8F/8R | 12 forward / 12 reverse |
|---|
| Max Travel Speed (Forward) | 19 mph or 25 mph (25 mph 4WD only) | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Not Published | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Not Published | Not Published |
|---|
| Brakes | High-Clearance: internal wet brakes (external drop box final drive) | Not Published |
|---|
| Seat Suspension & Adjustability | Mechanical-suspension seat standard; air-suspension seat with swivel and full-size cushioned instructor seat optional (VisionView cab) | Air ride seat (standard); instructor seat available |
|---|
| Front Axle Type | 4WD, Class 3 axle (cab or ROPS); High-Clearance: 4WD, electro-hydraulic on-the-go engagement, adjustable front tread 72 to 84 in | Class 1.0 HD heavy-duty front axle |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | High-Clearance pintle hitch: 3,975 lb vertical load; 8,362 lb horizontal towing weight | Not Published |
|---|
|
|---|
| Overall Width | Not Published | Not Published |
|---|
| Wheelbase | 99.2 in (4WD, Standard Duty Class 3 axle); High-Clearance: 107.5 in | Not Published |
|---|
| Ground Clearance | High-Clearance: 25.25 in (lowest part of front axle) | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Height to Top of ROPS | 117.3 in; High-Clearance: 128.9 in | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 110.2 in | Not Published |
|---|
| Overall Length | 184.7 in (4WD, with front weights); High-Clearance: 192.9 in (4WD, with front weights) | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 10,362 lb (shipping, 4WD, ROPS, flange axle); 11,002 lb (4WD, ROPS, bar axle); 11,200 lb (4WD, cab, flange axle); 12,192 lb (4WD, cab, bar axle); High-Clearance: 10,957 lb (4WD, ROPS, flange axle) | Not Published |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | 18.4-38 R1 rear with 14.9-28 R1 front (4WD); High-Clearance: 13.6-38 R2 front and rear | Not Published |
|---|
| R1 Agricultural - Front | 14.9-28 (4WD) | Not Published |
|---|
| R1 Agricultural - Rear | 18.4-38 | Not Published |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Skid steer (SSL) or Euro style attachment couplers | Not Published |
|---|
| Loader Model | 830LA (NSL); 835LA (MSL) | 630LU; 635LU |
|---|
| Loader Lift Height | 830LA: 150.0 in; 835LA: 150.0 in (to pivot pin) | 143.9 in (630LU and 635LU) |
|---|
| Loader Lift Capacity (Full Height) | 830LA: 2,557 lb; 835LA: 3,813 lb (to maximum height, measured 31.5 in forward of the pivot pin) | 630LU: 2,764 lb; 635LU: 3,882 lb (at max height, @ 31.5 in) |
|---|
| Loader Breakout Force | 830LA: 3,681 lb; 835LA: 3,968 lb (measured 31.5 in forward of the pivot pin) | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
