New Holland Workmaster 35 vs Yanmar YT235C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the New Holland Workmaster 35 leads 6 categories to 3. Machine pages: New Holland Workmaster 35 and Yanmar YT235C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland Workmaster 35	Yanmar YT235C
Engine HP (hp)	▲ 35 hp	34.2 hp
PTO HP (hp)	25.7 hp	▲ 27 hp
Weight (lb)	2,400 lb	▲ 3,823 lb
Loader Lift (lb)	▲ 1,500 lb	1,300 lb
3-Pt Lift (24 in) (lb)	1,433 lb	▲ 1,764 lb
Lift Height (in)	▲ 91.5 in	84 in
Breakout Force (lbf)	▲ 2,700 lbf	2,105 lbf
Hydraulic Flow (gpm)	▲ 13 gpm	11.2 gpm
Travel Speed (mph)	▲ 15 mph	11.7 mph

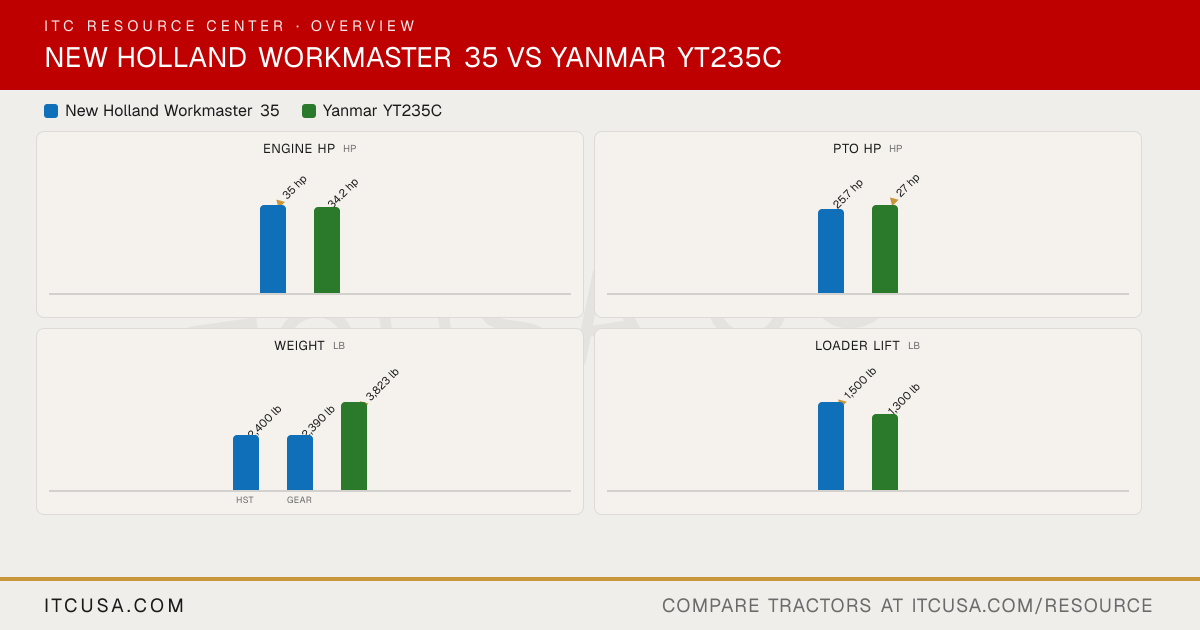

The headline numbers at a glance.

New Holland Workmaster 35Yanmar YT235C

Engine HPhp

▲35 hp

34.2 hp

PTO HPhp

25.7 hp

▲27 hp

Weightlb

2,400 lb

2,390 lb

▲3,823 lb

HSTGear

Loader Liftlb

▲1,500 lb

1,300 lb

3-Pt Lift (24 in)lb

1,433 lb

▲1,764 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandWorkmaster 35	YanmarYT235C


PTO Power	25.7 hp	27 hp
Alternator	70 A, 12 V	55 A, 12 V
Air Cleaner	Dual element dry air cleaner	Dual stage cyclonic (resin 5.5 in.)
Engine Type	Turbocharged diesel	3-cylinder, naturally aspirated diesel
Fuel System	High pressure common rail (ECU controlled timing)	Common rail direct injection
Displacement	0.1 in³	100.2 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2800 rpm
Cooling System Type	Pressurized liquid with recirculating bypass	Liquid cooled
Engine Manufacturer	LS Mtron	YANMAR
Engine Power (Gross)	35 hp	34.2 hp
Engine Emissions Constraints	Tier 4B Final	Tier 4

Weight with ROPS and Loader	HST: 2,400 lb; Gear: 2,390 lb (with ROPS / less tires)	Not Applicable
Weight with Cab and Loader	Not Applicable	3,823 lb

Warranty Length & Coverage	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)	Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours; Attachments: 1-year limited warranty

Pump Type	Gear	Not Published
Steering Flow	4.8 gpm	4.1 gpm
Implement Flow	8.2 gpm	7.1 gpm
Total Hydraulic Flow	13.0 gpm	11.2 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	13.0 gpm	11.2 gpm
No. of Optional Remote Valves	1 or 2	Not Published
No. of Standard Remote Valves	0	Not Published

PTO Rear	540 rpm (6-spline)	540 rpm
PTO Type	Independent	Independent (electro-hydraulic)
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1,808 lb	2,205 lb
Mid-PTO Availability	Optional	Standard
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	1,433 lb	1,764 lb

R3 Turf - Rear	41X14.00-20	13.6x16
R3 Turf - Front	25X8.50-14	25x8.5-14
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural; R3 Turf; R4 Industrial
R4 Industrial - Rear	43X16-20	15-19.6
R4 Industrial - Front	25X8.50-14	25x8.5-14
R1 Agricultural - Rear	11.2-24	9.5-22
R1 Agricultural - Front	7.0-14	6.0-14

Coolant Capacity	7.5 qt	Not Published
Crankcase Capacity	5.8 qt	Not Published
Fuel Tank Capacity	7.4 gal	7.4 gal
Front Axle Fluid Capacity	6.9 qt	Not Published
Transmission / Hydraulic System Capacity	8.5 gal	Not Published

Loader Lift Height	91.5 in (to bucket pivot pin)	84 in
Loader Breakout Force	2,700 lb (bucket pivot pin)	2,105 lb
Quick Attach Loader System	140TL: Quick Mount (easy attach/remove); optional skid steer quick attach plates	YL310: Skid steer style bucket attachment
Loader Lift Capacity (Full Height)	1,500 lb (bucket pivot pin, max height)	1,300 lb

Clutch	HST: Not Applicable; Gear: Dry disc, 9.4 in	N/A (hydrostatic)
No. of Speeds	HST: Infinite (3-range); Gear: 12F/12R	Unlimited (hydrostatic); 3 ranges
Transmission Type	HST: 3-range hydrostatic / dual pedal; Gear: 12x12 synchronized shuttle	Hydrostatic (Dual Touch Pedal)
Max Travel Speed (Forward)	HST: 14.96 mph; Gear: 14.33 mph	11.7 mph (with R4 tires)
Max Travel Speed (Reverse)	HST: 14.96 mph; Gear: 13.63 mph	8.2 mph (with R4 tires)
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock (foot pedal engagement)

Brakes	Wet disc	Wet disc
Steering	Power steering	Fully hydraulic power steering
Frame Type	Not Published	Not Published
Front Axle Type	4WD (FWD)	Selectable 4WD (2WD/4WD engagement)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	69 in	65 in
Overall Width	54 in	58.3 in (with R4 tires)
Ground Clearance	13 in	10.8 in (with R4 tires)
Height to Top of ROPS	89 in	Not Applicable
Height to Top of Cab Model	Not Applicable	83.6 in (with R4 tires)
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	134 in	116.9 in

New Holland Workmaster 35 vs Yanmar YT235C: Quick Answers

Which has more horsepower, the New Holland Workmaster 35 or the Yanmar YT235C?: The New Holland Workmaster 35 leads on engine hp at 35 hp hp, compared to 34.2 hp hp for the Yanmar YT235C.
Which has more PTO horsepower, the New Holland Workmaster 35 or the Yanmar YT235C?: The Yanmar YT235C leads on pto hp at 27 hp hp, compared to 25.7 hp hp for the New Holland Workmaster 35.
Which is heavier, the New Holland Workmaster 35 or the Yanmar YT235C?: The Yanmar YT235C leads on weight at 3,823 lb lb, compared to 2,400 lb lb for the New Holland Workmaster 35.
Which has more loader lift capacity, the New Holland Workmaster 35 or the Yanmar YT235C?: The New Holland Workmaster 35 leads on loader lift at 1,500 lb lb, compared to 1,300 lb lb for the Yanmar YT235C.
Which has more three-point hitch lift capacity, the New Holland Workmaster 35 or the Yanmar YT235C?: The Yanmar YT235C leads on 3-pt lift (24 in) at 1,764 lb lb, compared to 1,433 lb lb for the New Holland Workmaster 35.

More Head-to-Heads

Category Verdict

Spec	New Holland Workmaster 35	Yanmar YT235C
Engine HP (hp)	▲ 35 hp	34.2 hp
PTO HP (hp)	25.7 hp	▲ 27 hp
Weight (lb)	2,400 lb	▲ 3,823 lb
Loader Lift (lb)	▲ 1,500 lb	1,300 lb
3-Pt Lift (24 in) (lb)	1,433 lb	▲ 1,764 lb
Lift Height (in)	▲ 91.5 in	84 in
Breakout Force (lbf)	▲ 2,700 lbf	2,105 lbf
Hydraulic Flow (gpm)	▲ 13 gpm	11.2 gpm
Travel Speed (mph)	▲ 15 mph	11.7 mph

The headline numbers at a glance.

New Holland Workmaster 35Yanmar YT235C

Engine HPhp

▲35 hp

34.2 hp

PTO HPhp

25.7 hp

▲27 hp

Weightlb

2,400 lb

2,390 lb

▲3,823 lb

HSTGear

Loader Liftlb

▲1,500 lb

1,300 lb

3-Pt Lift (24 in)lb

1,433 lb

▲1,764 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandWorkmaster 35	YanmarYT235C


PTO Power	25.7 hp	27 hp
Alternator	70 A, 12 V	55 A, 12 V
Air Cleaner	Dual element dry air cleaner	Dual stage cyclonic (resin 5.5 in.)
Engine Type	Turbocharged diesel	3-cylinder, naturally aspirated diesel
Fuel System	High pressure common rail (ECU controlled timing)	Common rail direct injection
Displacement	0.1 in³	100.2 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2800 rpm
Cooling System Type	Pressurized liquid with recirculating bypass	Liquid cooled
Engine Manufacturer	LS Mtron	YANMAR
Engine Power (Gross)	35 hp	34.2 hp
Engine Emissions Constraints	Tier 4B Final	Tier 4

Weight with ROPS and Loader	HST: 2,400 lb; Gear: 2,390 lb (with ROPS / less tires)	Not Applicable
Weight with Cab and Loader	Not Applicable	3,823 lb

Warranty Length & Coverage	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)	Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours; Attachments: 1-year limited warranty

Pump Type	Gear	Not Published
Steering Flow	4.8 gpm	4.1 gpm
Implement Flow	8.2 gpm	7.1 gpm
Total Hydraulic Flow	13.0 gpm	11.2 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	13.0 gpm	11.2 gpm
No. of Optional Remote Valves	1 or 2	Not Published
No. of Standard Remote Valves	0	Not Published

PTO Rear	540 rpm (6-spline)	540 rpm
PTO Type	Independent	Independent (electro-hydraulic)
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1,808 lb	2,205 lb
Mid-PTO Availability	Optional	Standard
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	1,433 lb	1,764 lb

R3 Turf - Rear	41X14.00-20	13.6x16
R3 Turf - Front	25X8.50-14	25x8.5-14
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural; R3 Turf; R4 Industrial
R4 Industrial - Rear	43X16-20	15-19.6
R4 Industrial - Front	25X8.50-14	25x8.5-14
R1 Agricultural - Rear	11.2-24	9.5-22
R1 Agricultural - Front	7.0-14	6.0-14

Coolant Capacity	7.5 qt	Not Published
Crankcase Capacity	5.8 qt	Not Published
Fuel Tank Capacity	7.4 gal	7.4 gal
Front Axle Fluid Capacity	6.9 qt	Not Published
Transmission / Hydraulic System Capacity	8.5 gal	Not Published

Loader Lift Height	91.5 in (to bucket pivot pin)	84 in
Loader Breakout Force	2,700 lb (bucket pivot pin)	2,105 lb
Quick Attach Loader System	140TL: Quick Mount (easy attach/remove); optional skid steer quick attach plates	YL310: Skid steer style bucket attachment
Loader Lift Capacity (Full Height)	1,500 lb (bucket pivot pin, max height)	1,300 lb

Clutch	HST: Not Applicable; Gear: Dry disc, 9.4 in	N/A (hydrostatic)
No. of Speeds	HST: Infinite (3-range); Gear: 12F/12R	Unlimited (hydrostatic); 3 ranges
Transmission Type	HST: 3-range hydrostatic / dual pedal; Gear: 12x12 synchronized shuttle	Hydrostatic (Dual Touch Pedal)
Max Travel Speed (Forward)	HST: 14.96 mph; Gear: 14.33 mph	11.7 mph (with R4 tires)
Max Travel Speed (Reverse)	HST: 14.96 mph; Gear: 13.63 mph	8.2 mph (with R4 tires)
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock (foot pedal engagement)

Brakes	Wet disc	Wet disc
Steering	Power steering	Fully hydraulic power steering
Frame Type	Not Published	Not Published
Front Axle Type	4WD (FWD)	Selectable 4WD (2WD/4WD engagement)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	69 in	65 in
Overall Width	54 in	58.3 in (with R4 tires)
Ground Clearance	13 in	10.8 in (with R4 tires)
Height to Top of ROPS	89 in	Not Applicable
Height to Top of Cab Model	Not Applicable	83.6 in (with R4 tires)
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	134 in	116.9 in

New Holland Workmaster 35 vs Yanmar YT235C: Quick Answers

Which has more horsepower, the New Holland Workmaster 35 or the Yanmar YT235C?

The New Holland Workmaster 35 leads on engine hp at 35 hp hp, compared to 34.2 hp hp for the Yanmar YT235C.

Which has more PTO horsepower, the New Holland Workmaster 35 or the Yanmar YT235C?

The Yanmar YT235C leads on pto hp at 27 hp hp, compared to 25.7 hp hp for the New Holland Workmaster 35.

Which is heavier, the New Holland Workmaster 35 or the Yanmar YT235C?

The Yanmar YT235C leads on weight at 3,823 lb lb, compared to 2,400 lb lb for the New Holland Workmaster 35.

Which has more loader lift capacity, the New Holland Workmaster 35 or the Yanmar YT235C?

The New Holland Workmaster 35 leads on loader lift at 1,500 lb lb, compared to 1,300 lb lb for the Yanmar YT235C.

Which has more three-point hitch lift capacity, the New Holland Workmaster 35 or the Yanmar YT235C?

The Yanmar YT235C leads on 3-pt lift (24 in) at 1,764 lb lb, compared to 1,433 lb lb for the New Holland Workmaster 35.
