New Holland Workmaster 55 vs New Holland Workmaster 60
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, the New Holland Workmaster 55 leads 5 categories to 3. Machine pages: New Holland Workmaster 55 and New Holland Workmaster 60.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

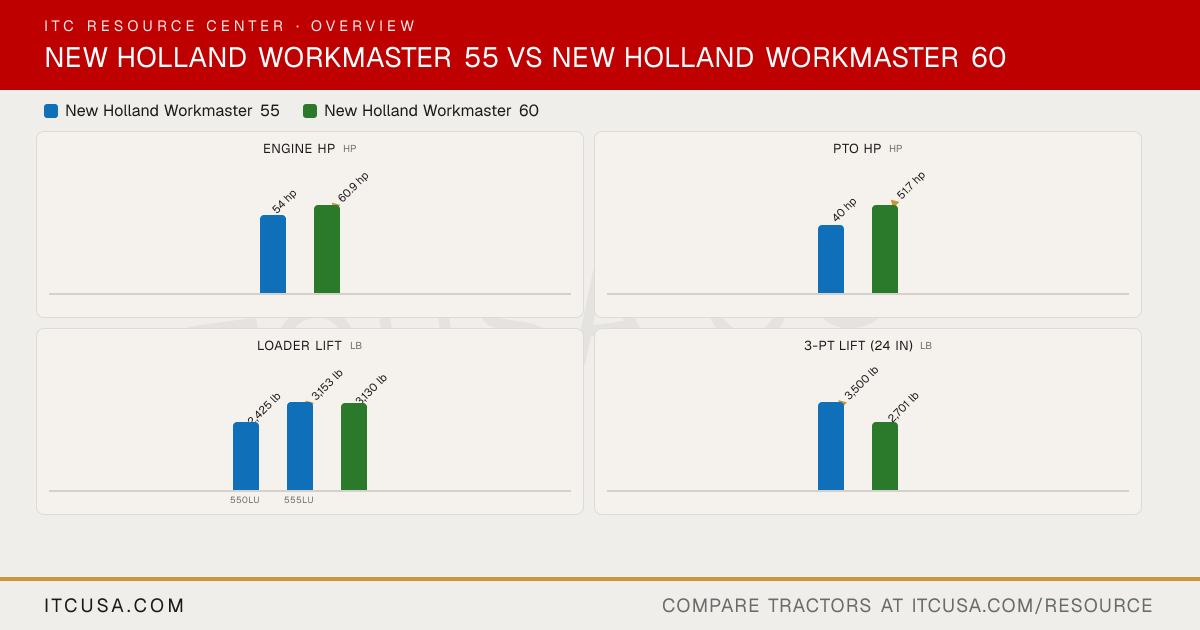

Category Verdict
| Spec | New Holland Workmaster 55 | New Holland Workmaster 60 |
|---|---|---|
| Engine HP (hp) | 54 hp | ▲ 60 hp |
| PTO HP (hp) | 40 hp | ▲ 51 hp |
| Weight (lb) | ▲ 6,800 lb | 5,059 lb |
| Loader Lift (lb) | 3,153 lb | ▲ 3,549 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 3,500 lb | 2,701 lb |
| Lift Height (in) | ▲ 131.3 in | 122 in |
| Breakout Force (lbf) | n/a | 3,527 lbf |
| Hydraulic Flow (gpm) | ▲ 20.2 gpm | 17.5 gpm |
| Travel Speed (mph) | ▲ 25 mph | 19.1 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | New HollandWorkmaster 55 | New HollandWorkmaster 60 |
|---|
| Engine Manufacturer | FPT | FPT |
|---|---|---|
| Engine Model | S8000 | R753 |
| Engine Type | Turbocharged 3-cylinder diesel | Turbocharged, intercooled 3-cylinder diesel |
| No. of Cylinders | 3 | 3 |
| Displacement | 179 in³ | 136 in³ |
| Rated Engine Speed | 2300 rpm | 2600 rpm |
| Engine Power (Gross) | 54 hp | 60 hp |
| PTO Power | 40 hp | 51 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Not Published | Pressurized liquid with recirculating bypass |
| Air Cleaner | PowerCore dry air cleaner | 2-stage |
| Fuel System | Bosch electronic high-pressure common rail | Common rail direct injection (CRDI) |
| Alternator | 120 A | 75 A |
New Holland Workmaster 55 vs New Holland Workmaster 60: Quick Answers
- Which has more horsepower, the New Holland Workmaster 55 or the New Holland Workmaster 60?
- The New Holland Workmaster 60 leads on engine hp at 60 hp hp, compared to 54 hp hp for the New Holland Workmaster 55.
- Which has more PTO horsepower, the New Holland Workmaster 55 or the New Holland Workmaster 60?
- The New Holland Workmaster 60 leads on pto hp at 51 hp hp, compared to 40 hp hp for the New Holland Workmaster 55.
- Which is heavier, the New Holland Workmaster 55 or the New Holland Workmaster 60?
- The New Holland Workmaster 55 leads on weight at 6,800 lb lb, compared to 5,059 lb lb for the New Holland Workmaster 60.
- Which has more loader lift capacity, the New Holland Workmaster 55 or the New Holland Workmaster 60?
- The New Holland Workmaster 60 leads on loader lift at 3,549 lb lb, compared to 3,153 lb lb for the New Holland Workmaster 55.
- Which has more three-point hitch lift capacity, the New Holland Workmaster 55 or the New Holland Workmaster 60?
- The New Holland Workmaster 55 leads on 3-pt lift (24 in) at 3,500 lb lb, compared to 2,701 lb lb for the New Holland Workmaster 60.
