Which has more horsepower, the New Holland Workmaster 75 or the Yanmar SM475?

They are effectively tied: both machines are rated at 74 hp hp for engine hp.

Which has more PTO horsepower, the New Holland Workmaster 75 or the Yanmar SM475?

The Yanmar SM475 leads on pto hp at 64.1 hp hp, compared to 60 hp hp for the New Holland Workmaster 75.

Which has more loader lift capacity, the New Holland Workmaster 75 or the Yanmar SM475?

The Yanmar SM475 leads on loader lift at 3,325 lb lb, compared to 3,153 lb lb for the New Holland Workmaster 75.

Which has more three-point hitch lift capacity, the New Holland Workmaster 75 or the Yanmar SM475?

The New Holland Workmaster 75 leads on 3-pt lift (24 in) at 3,500 lb lb, compared to 3,418 lb lb for the Yanmar SM475.

New Holland Workmaster 75 vs Yanmar SM475

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 6 measurable specs, the Yanmar SM475 leads 3 categories to 2 (1 tied). Machine pages: New Holland Workmaster 75 and Yanmar SM475.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland Workmaster 75	Yanmar SM475
Engine HP (hp)	74 hp	74 hp
PTO HP (hp)	60 hp	▲ 64.1 hp
Loader Lift (lb)	3,153 lb	▲ 3,325 lb
3-Pt Lift (24 in) (lb)	▲ 3,500 lb	3,418 lb
Lift Height (in)	131.3 in	▲ 133.8 in
Breakout Force (lbf)	—	5,485 lbf
Hydraulic Flow (gpm)	▲ 20.2 gpm	16.1 gpm
Travel Speed (mph)	25 mph	—

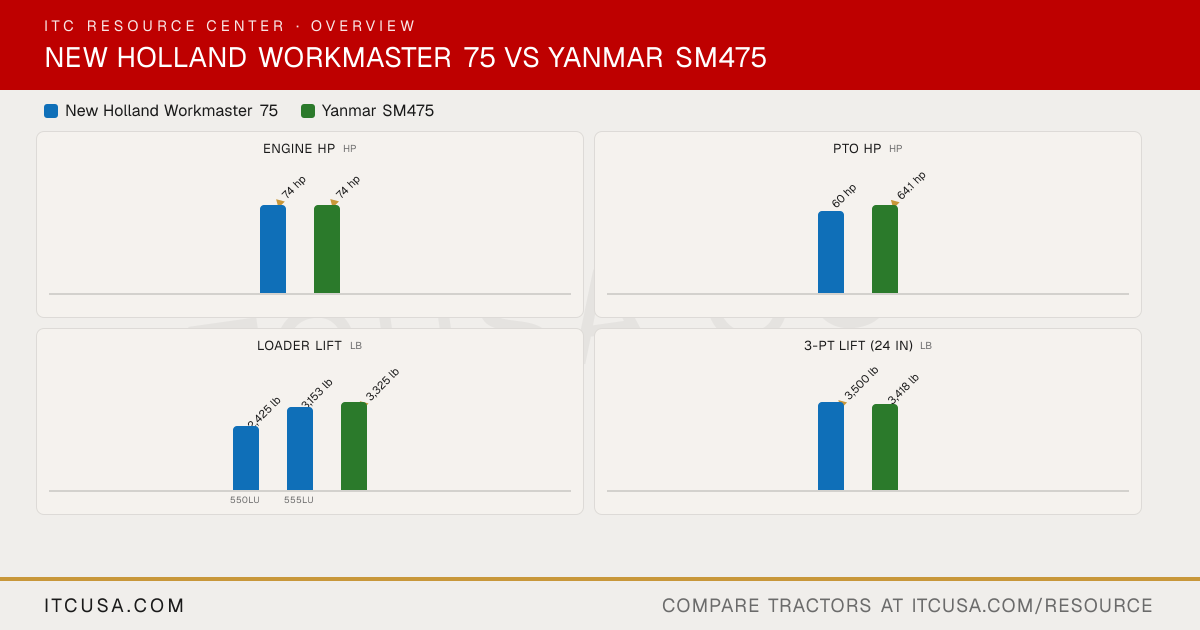

The headline numbers at a glance.

New Holland Workmaster 75Yanmar SM475

Engine HPhp

▲74 hp

PTO HPhp

60 hp

▲64.1 hp

Weightlb

—

Loader Liftlb

2,425 lb

3,153 lb

▲3,325 lb

550LU555LU

3-Pt Lift (24 in)lb

▲3,500 lb

3,418 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandWorkmaster 75	YanmarSM475


PTO Power	60 hp	64.1 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	Turbocharged 3-cylinder diesel	Not Published
Fuel System	High-pressure common rail	Not Published
Displacement	179 in³	Not Published
No. of Cylinders	3	Not Published
Rated Engine Speed	2300 rpm	2200 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	FPT Industrial	Deutz
Engine Power (Gross)	74 hp	74 hp
Engine Emissions Constraints	Tier 4B CEGR + DOC (no DPF; no regeneration)	Not Published

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Not Published	Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours

Pump Type	Dual pumps	Not Published
Steering Flow	7.6 gpm	5.8 gpm
Implement Flow	12.6 gpm	10.3 gpm
Total Hydraulic Flow	20.2 gpm	16.1 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	20.2 gpm	16.1 gpm
No. of Optional Remote Valves	1	Not Published
No. of Standard Remote Valves	2	2

PTO Rear	540 rpm	540 rpm
PTO Type	Hydraulic wet clutch	Independent
Lift Control Type	Lift-O-Matic	Not Published
Hitch Lift Capacity	Not Published	5,115 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Not Published	Category II
Hitch Lift Capacity (at 24”)	3,500 lb	3,418 lb

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R1 Agricultural - Front	Not Published	Not Published

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	Not Published	23.8 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	550LU: 131.3 in; 555LU: 130.0 in	133.8 in
Loader Breakout Force	Not Published	5,485 lb
Quick Attach Loader System	550LU, 555LU: 72 in bucket; SSL or Euro-style quick attach	Not Published
Loader Lift Capacity (Full Height)	550LU: 2,425 lb; 555LU: 3,153 lb	3,325 lb

Clutch	Not Published	Wet multi plate
No. of Speeds	12F/12R	Not Published
Transmission Type	12x12 power shuttle	Power shuttle
Max Travel Speed (Forward)	25 mph	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Rear differential lock (foot pedal engagement)

Brakes	Not Published	Not Published
Steering	Not Published	Not Published
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Selectable 2WD/4WD engagement
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	6,500 lb dynamic capacity	Not Published
Seat Suspension & Adjustability	ROPS: Not Published; CAB: Cloth air-suspension seat	Mechanical suspension seat

Wheelbase	83.6 in	Not Published
Overall Width	Not Published	Not Published
Ground Clearance	Not Published	18.3 in
Height to Top of ROPS	99.8 in	Not Published
Height to Top of Cab Model	100.2 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	154.1 in	Not Published
