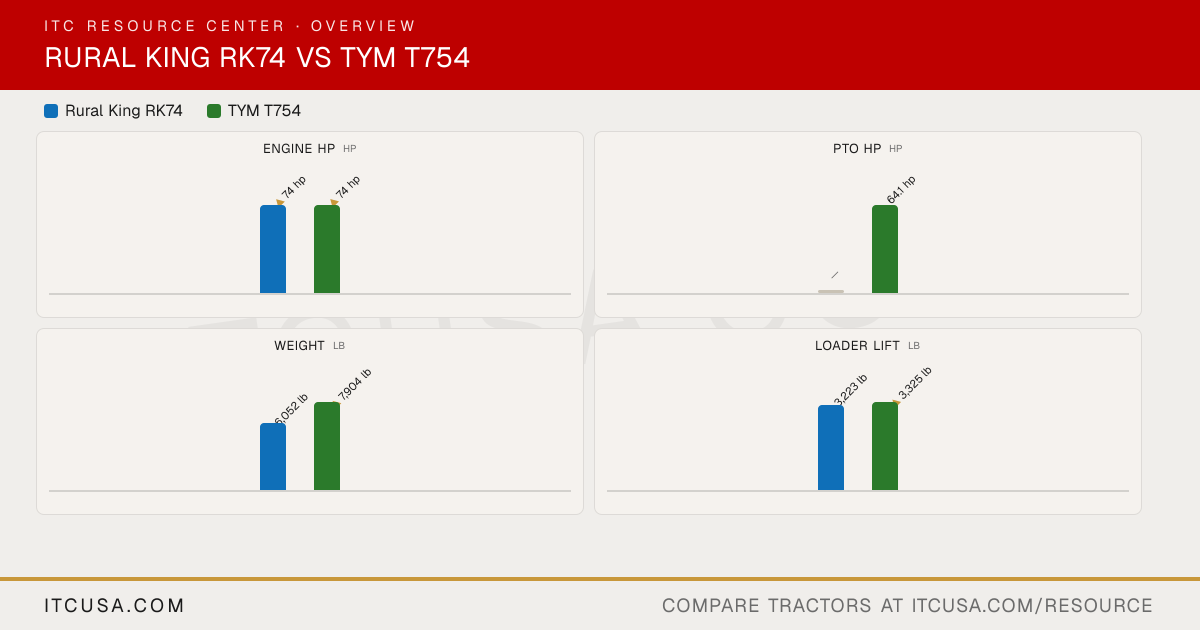

Every published spec, side by side, including the details the graphs above don't chart.
Spec
Rural KingRK74
TYMT754
Engine Type
Turbocharged
4-cylinder, turbocharged diesel
Engine Model
Deutz TCD2.9 L4
—
No. of Cylinders
4
4
Rated Engine Speed
2200
2200 rpm
Engine Manufacturer
Deutz
Deutz
Engine Power (Gross)
74 hp
74 hp
Engine Emissions Constraints
Tier 4
Diesel Oxidation Catalyst (DOC)
PTO Power
—
64.1 hp
Alternator
—
95 A, 12 V
Air Cleaner
—
Dual dry
Fuel System
—
CRDI
Displacement
—
177 in³
Cooling System Type
—
Not Published
Weight with ROPS and Loader
6,052 lbs.
Not Applicable
Weight with Cab and Loader
—
7,904 lb
Hydraulic System Type
open center
Not Published
Overall Hydraulic Pump Flow
10.3 gpm
16.1 gpm
Pump Type
—
Dual gear pump
Steering Flow
—
5.8 gpm
Implement Flow
—
10.3 gpm
Total Hydraulic Flow
—
16.1 gpm
Rear Remote Hydraulic Flow
—
Not Published
No. of Optional Remote Valves
—
Not Published
No. of Standard Remote Valves
—
2
PTO Rear
540/750
540/750 rpm; 540/1,000 rpm (Opt)
PTO Type
Independent
Independent
Lift Control Type
Draft Control
Position/Draft/Elec
Hitch Lift Capacity
5,115 lbs
5,115 lb
Mid-PTO Availability
—
Not Published
Category, 3-Point Hitch
—
Category II
Hitch Lift Capacity (at 24”)
—
3,418 lb
R3 Turf - Rear
R 22.4x25.5
Not Published
R3 Turf - Front
F 12.0x20.5
Not Published
R4 Industrial - Rear
R 18.4x24
Xtra Grip 18.4-24 NHS TL 8PR
R4 Industrial - Front
F 15x9.5
Trac Chief 15-19.5 NHS TL 6PR
Tire Size & Options
—
R1 Agricultural, R4 Industrial
R1 Agricultural - Rear
—
FSTR 420/85R30 TL (16.9R30)
R1 Agricultural - Front
—
FSTR 280/85R24 TL (11R24)
Loader Model
L135SL Front-End Loader
—
Loader Lift Height
135.5
133.8 in
Loader Breakout Force
5,335
5,485 lb
Loader Lift Capacity (Full Height)
3,223
3,325 lb
Quick Attach Loader System
—
TX75SL: Quick attachment (Skid/Euro type)
Clutch
Wet Disc
M: Dry Single Plate; PS: Wet Multi Plate
No. of Speeds
16F/16R
F16 x R16 (Creep interlock)
Transmission Type
16F/16R Power Shuttle w/creeper
Synchro-shuttle
Max Travel Speed (Forward)
18.9 (30.4)
24.1 mph
Max Travel Speed (Reverse)
—
Not Published
Differential Lock & Limited Slip Options
—
Not Published
Brakes
Wet Disc
Wet disc
Steering
power
Hydrostatic
Frame Type
4x4 MFWD 4WD
Not Published
Front Axle Type
—
Not Published
Drawbar Capacity
—
Not Published
Front Axle Rating
—
Not Published
Seat Suspension & Adjustability
—
Suspension seat
Overall Width
76.4 (1940)
76.4 in
Ground Clearance
18.3 (465)
18.3 in
Height to Top of Cab Model
103.3 (2624)
103.3 in
Overall Length with 3-Point Hitch
157.5 (4002)
155.7 in
Wheelbase
—
86.1 in
Height to Top of ROPS
—
Not Applicable
Height to Top of ROPS (folded)
—
Not Applicable
Min. Turn Radius without Brakes
—
162.8 in
Warranty Length & Coverage
—
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
Coolant Capacity
—
10.6 qt
Crankcase Capacity
—
8.5 qt
Fuel Tank Capacity
—
23.8 gal
Front Axle Fluid Capacity
—
17.3 qt
Transmission / Hydraulic System Capacity
—
18.0 gal
Rural King RK74 vs TYM T754: Quick Answers
Which has more horsepower, the Rural King RK74 or the TYM T754?
They are effectively tied: both machines are rated at 74 hp hp for engine hp.
Which is heavier, the Rural King RK74 or the TYM T754?
The TYM T754 leads on weight at 7,904 lb lb, compared to 6,052 lb lb for the Rural King RK74.
Which has more loader lift capacity, the Rural King RK74 or the TYM T754?
The TYM T754 leads on loader lift at 3,325 lb lb, compared to 3,223 lb lb for the Rural King RK74.
Which has more three-point hitch lift capacity, the Rural King RK74 or the TYM T754?
The Rural King RK74 leads on 3-pt lift (24 in) at 5,115 lb lb, compared to 3,418 lb lb for the TYM T754.
