Solis H24+ vs Solis H24 cabin

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Solis H24 cabin leads 3 categories to 0 (4 tied). Machine pages: Solis H24+ and Solis H24 cabin.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Solis H24+	Solis H24 cabin
Engine HP (hp)	24 hp	24 hp
Weight (lb)	2,513 lb	▲ 3,108 lb
Loader Lift (lb)	1,411 lb	▲ 1,500 lb
3-Pt Lift (24 in) (lb)	1,323 lb	1,323 lb
Lift Height (in)	85 in	85 in
Breakout Force (lbf)	1,146 lbf	▲ 1,565 lbf
Hydraulic Flow (gpm)	4 gpm	4 gpm

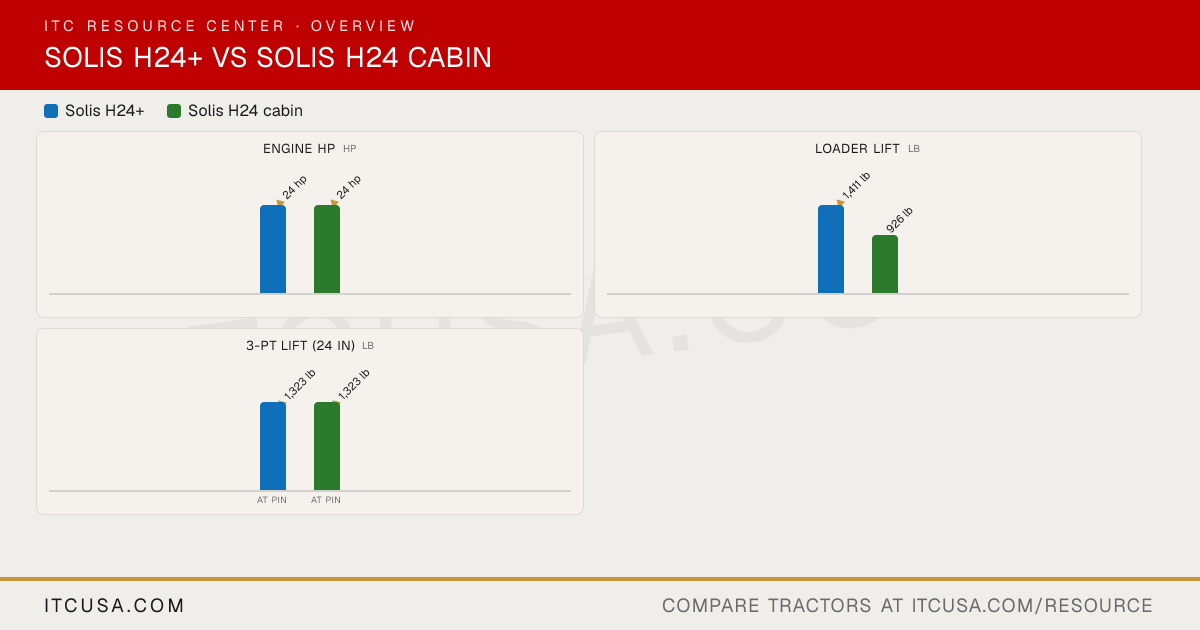

The headline numbers at a glance.

Solis H24+Solis H24 cabin

Engine HPhp

▲24 hp

PTO HPhp

n/a

Weightlb

2,513 lb

▲3,108 lb

Loader Liftlb

1,411 lb

▲1,500 lb

1,411 lb

HLN24HB24

3-Pt Lift (24 in)lb

▲1,323 lb

at pinat pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	SolisH24+	SolisH24 cabin


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	S3L2	S3L2
Engine Type	3-cylinder, naturally aspirated diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	80.42 in³	80.42 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	24 hp	24 hp
PTO Power	Not Published	Not Published
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Not Published
Alternator	Not Published	Not Published

Pump Type	Not Published	Single, open center
Implement Flow	Not Published	Not Published
Steering Flow	Not Published	Not Published
Total Hydraulic Flow	3.98 gpm	3.98 gpm
Overall Hydraulic Pump Flow	Not Published	3.98 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1DA	1
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	7 gal	7 gal
Coolant Capacity	Not Published	1.1 gal
Crankcase Capacity	Not Published	1.11 gal
Transmission / Hydraulic System Capacity	Not Published	6.6 gal
Front Axle Fluid Capacity	Not Published	0.71 gal

PTO Type	Wet type	Not Published
PTO Rear	540 rpm at 2451 engine rpm	540 rpm at 2451 engine rpm
Mid-PTO Availability	Yes, 2100 rpm at 2438 engine rpm	Yes, 2100 rpm at 2438 engine rpm
Category, 3-Point Hitch	Category 1 (CAT1N)	Category I (CAT-1N)
Hitch Lift Capacity	1,323 lb	1,323 lb
Hitch Lift Capacity (at 24”)	Not Published	Not Published
Lift Control Type	Not Published	Not Published

Transmission Type	Hydrostatic (HST), 2 range	Hydrostatic (HST), 2 range
No. of Speeds	Not Published	HST with 2 range speeds
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Without clutch (hydrostatic drive)
Differential Lock & Limited Slip Options	Differential lock standard	Differential lock standard

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Oil immersed brakes, mechanical foot operated	Oil immersed brakes, mechanical foot operated
Seat Suspension & Adjustability	Premium suspension seat with headrest	Not Published
Front Axle Type	Four wheel drive (4WD)	Four wheel drive (4WD), mechanical engagement
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	47.83 in (agri tires); 54 in (R14 tires)	47 in
Wheelbase	61.8 in	61 in
Ground Clearance	9.44 in (agri tires, front axle); 10.61 in (R14 tires)	9 in (front axle)
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	92.7 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	93 in
Overall Length	113.98 in (with 3-point hitch)	112 in (with 3-point hitch)

Tractor Weight (Base)	2,513 lb (agri tires); 2,530 lb (R14 tires)	3,108 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R14 (standard): 25x8.50-14 R14T & 14-17.5 R14T; Industrial: 23x8.50-12 & 33x15.5-16.5; Turf: 23x8.50-12 & 33x15.5-16.5; Turf: 25x8.50-14 & 13.6x16; Agri: 6x12 & 8.3x20; Radial: 6.5/80-12 & 280/70R18; Galaxy Pro: 220/55 R12 & 280/70 R16	Industrial: 23x8.50-12 & 33x15.5-16.5; Turf 1: 23x8.50-12 & 33x15.5-16.5; Turf 2: 25x8.50-14 & 13.6x16; Agri: 6x12 & 8.3x20; Radial Agri: 6.5/80-12 & 280/70R18; Galaxy Pro: 220/55 R12 & 280/70 R16; R14: 23x8.50-12 R14T & 12-16.5 R14T; R14: 25x8.50-14 & 14-17.5
R1 Agricultural - Front	6x12; 6.5/80-12	6x12; 6.5/80-12
R1 Agricultural - Rear	8.3x20; 280/70R18	8.3x20; 280/70R18
R3 Turf - Front	23x8.50-12; 25x8.50-14	23x8.50-12; 25x8.50-14
R3 Turf - Rear	33x15.5-16.5; 13.6x16	33x15.5-16.5; 13.6x16
R4 Industrial - Front	23x8.50-12	23x8.50-12
R4 Industrial - Rear	33x15.5-16.5	33x15.5-16.5

Quick Attach Loader System	Skid steer quick attach	Skid steer quick attach
Loader Model	3200V (MSL)	HLN24 (NSL); HB24 (MSL)
Loader Lift Height	3200V: 85 in	HLN24: 82 in; HB24: 85 in
Loader Lift Capacity (Full Height)	3200V: 1,411 lb	HLN24: 1,500 lb; HB24: 1,411 lb
Loader Breakout Force	3200V: 1,146 lb (at pivot pin, dig position)	HLN24: 1,565 lb; HB24: 1,146 lb

Warranty Length & Coverage	3 year full machine warranty; 7 year powertrain warranty	3 year full machine warranty; 7 year powertrain warranty
