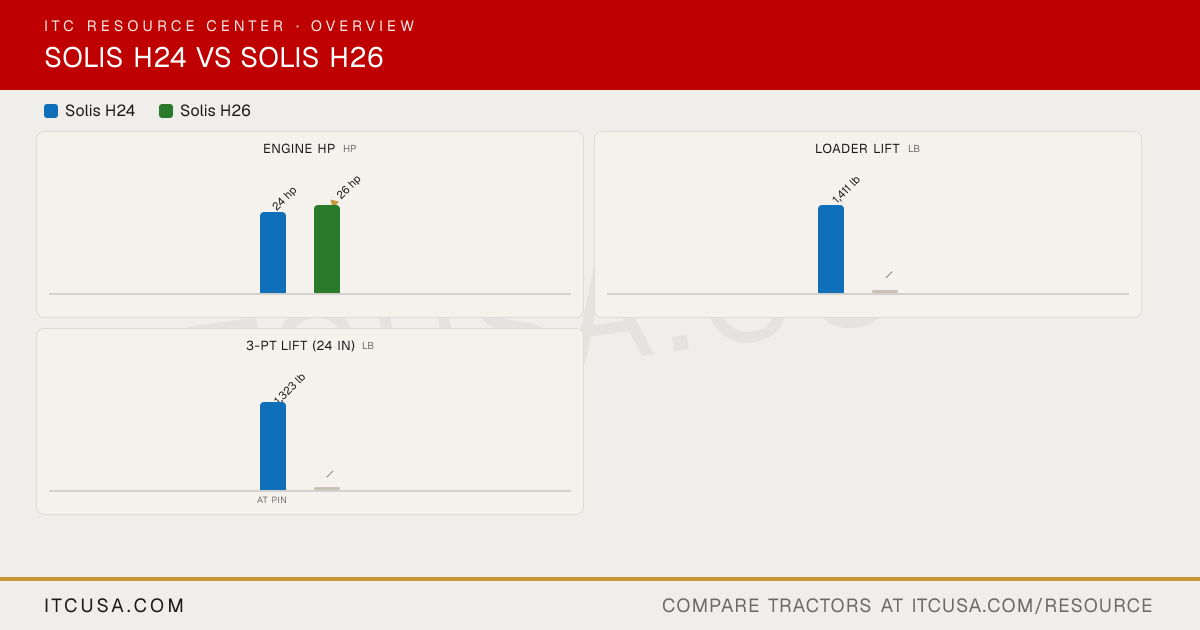

Every published spec, side by side, including the details the graphs above don't chart.
Spec
SolisH24
SolisH26
PTO Power
Not Published
NOT FOUND
Alternator
alternator
42 A, 12 V
Air Cleaner
NOT FOUND — air cleaner type not explicitly listed in any source reviewed.
Dry with Clogging Sensor
Engine Type
diesel
3-Cylinder Diesel Engine
Fuel System
Direct Injection
—
Displacement
79.3 in³
80.5 in³
Engine Model
Mitsubishi S3L2
NOT FOUND
No. of Cylinders
3
3
Rated Engine Speed
2500 rpm
2500 rpm
Cooling System Type
Liquid cooled
NOT FOUND — no cooling system type explicitly stated for the H26 in any retrieved source
Engine Manufacturer
Mitsubishi
Mitsubishi
Engine Power (Gross)
24 hp
26 hp
Engine Emissions Constraints
NOT FOUND — no emissions tier/standard (e.g. EPA Tier 4, EU Stage V) explicitly stated for the H24 in any source reviewed.
NOT FOUND
Weight with ROPS and Loader
Not Published
—
Weight with Cab and Loader
Not Applicable
—
Warranty Length & Coverage
3 Year or 2,000 Hour Bumper-to-Bumper Tractor Warranty; 7 Year or 3,000 Hour Limited Powertrain Tractor Warranty; 1 Year Implement/Attachment Warranty (such as Solis loaders)
—
Pump Type
NOT FOUND
—
Steering Flow
NOT FOUND — no source explicitly lists this value
—
Implement Flow
3.98 gpm 15.1 lpm
—
Total Hydraulic Flow
3.98 gpm
—
Hydraulic System Type
open center
—
Rear Remote Hydraulic Flow
NOT FOUND — no source explicitly lists this value
—
Overall Hydraulic Pump Flow
3.98 gpm 15.1 lpm
—
No. of Optional Remote Valves
NOT FOUND — no source explicitly lists this value
3 DA (Cabin)
No. of Standard Remote Valves
NOT FOUND — no source explicitly lists this value
1 DA
PTO Rear
540 (1.375)
—
PTO Type
independent
—
Lift Control Type
NOT FOUND — no source explicitly states lift control type (e.g., position control, draft control, or float) for the Solis H24
NOT FOUND
Hitch Lift Capacity
1323 lbs
—
Mid-PTO Availability
Optional
Yes - Mid & Rear PTO standard
Category, 3-Point Hitch
I
—
Hitch Lift Capacity (at 24”)
Not Published
—
R3 Turf - Rear
33x15.5-16.5; 13.6x16
13.80-16
R3 Turf - Front
23x8.50-12; 25x8.50-14
25x8.50-14
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
—
R4 Industrial - Rear
33x15.5-16.5
33x15.50-16.5
R4 Industrial - Front
23x8.50-12
23x8.50-12
R1 Agricultural - Rear
8.3-20
280/70 R18
R1 Agricultural - Front
6-12
6.5/80-12 | 280/70 R18
Coolant Capacity
Not Published
—
Crankcase Capacity
Not Published
—
Fuel Tank Capacity
7 gal
—
Front Axle Fluid Capacity
Not Published
—
Transmission / Hydraulic System Capacity
Not Published
—
Loader Model
Solis 3200
—
Loader Lift Height
85 in
—
Loader Breakout Force
1,146 lbs
NOT FOUND
Quick Attach Loader System
SSQA (Skid Steer Quick Attach)
YES optional
Loader Lift Capacity (Full Height)
1,411 lbs
—
Clutch
electro-hydraulic wet disc
Wet Type Clutch for PTO
No. of Speeds
Infinite (HST - 2 Range); continuous variable forward and reverse via twin touch pedals
