Every published spec, side by side, including the details the graphs above don't chart.
Spec
SolisH24
SolisS22
PTO Power
Not Published
—
Alternator
alternator
42 A
Air Cleaner
NOT FOUND — air cleaner type not explicitly listed in any source reviewed.
—
Engine Type
diesel
diesel
Fuel System
Direct Injection
diesel
Displacement
79.3 in³
67.1 in³
Engine Model
Mitsubishi S3L2
Mitsubishi S3L2
No. of Cylinders
3
3
Rated Engine Speed
2500 rpm
—
Cooling System Type
Liquid cooled
—
Engine Manufacturer
Mitsubishi
ITL
Engine Power (Gross)
24 hp
22 hp
Engine Emissions Constraints
NOT FOUND — no emissions tier/standard (e.g. EPA Tier 4, EU Stage V) explicitly stated for the H24 in any source reviewed.
—
Weight with ROPS and Loader
Not Published
2194 lbs 2,193.6 lb
Weight with Cab and Loader
Not Applicable
—
Warranty Length & Coverage
3 Year or 2,000 Hour Bumper-to-Bumper Tractor Warranty; 7 Year or 3,000 Hour Limited Powertrain Tractor Warranty; 1 Year Implement/Attachment Warranty (such as Solis loaders)
—
Pump Type
NOT FOUND
—
Steering Flow
NOT FOUND — no source explicitly lists this value
—
Implement Flow
3.98 gpm 15.1 lpm
—
Total Hydraulic Flow
3.98 gpm
—
Hydraulic System Type
open center
—
Rear Remote Hydraulic Flow
NOT FOUND — no source explicitly lists this value
—
Overall Hydraulic Pump Flow
3.98 gpm 15.1 lpm
—
No. of Optional Remote Valves
NOT FOUND — no source explicitly lists this value
—
No. of Standard Remote Valves
NOT FOUND — no source explicitly lists this value
1DA
PTO Rear
540 (1.375)
540
PTO Type
independent
Mechanical
Lift Control Type
NOT FOUND — no source explicitly states lift control type (e.g., position control, draft control, or float) for the Solis H24
—
Hitch Lift Capacity
1323 lbs
1323 lbs 1,322.8 lb
Mid-PTO Availability
Optional
—
Category, 3-Point Hitch
I
I
Hitch Lift Capacity (at 24”)
Not Published
—
R3 Turf - Rear
33x15.5-16.5; 13.6x16
—
R3 Turf - Front
23x8.50-12; 25x8.50-14
—
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
—
R4 Industrial - Rear
33x15.5-16.5
—
R4 Industrial - Front
23x8.50-12
—
R1 Agricultural - Rear
8.3-20
280/70R18
R1 Agricultural - Front
6-12
6.5/80-12
Coolant Capacity
Not Published
—
Crankcase Capacity
Not Published
—
Fuel Tank Capacity
7 gal
6.9 gal
Front Axle Fluid Capacity
Not Published
—
Transmission / Hydraulic System Capacity
Not Published
—
Loader Model
Solis 3200
3200 / 3200V
Loader Lift Height
85 in
85
Loader Breakout Force
1,146 lbs
1058 / 1146
Quick Attach Loader System
SSQA (Skid Steer Quick Attach)
—
Loader Lift Capacity (Full Height)
1,411 lbs
926 / 1411
Clutch
electro-hydraulic wet disc
Single Clutch
No. of Speeds
Infinite (HST - 2 Range); continuous variable forward and reverse via twin touch pedals
6
Transmission Type
hydrostatic
6-speed gear
Max Travel Speed (Forward)
Up to 14 mph
—
Max Travel Speed (Reverse)
Up to 14 mph
—
Differential Lock & Limited Slip Options
mechanical rear
mechanical rear
Brakes
Mechanical wet disc brakes
Wet disc brakes
Steering
Power steering
Power steering
Frame Type
Not Published
Two-post folding ROPS
Front Axle Type
Four-wheel drive
—
Drawbar Capacity
Not Published
—
Front Axle Rating
Not Published
—
Seat Suspension & Adjustability
Not Published
—
Wheelbase
61.8 inches 61.4 in
61.4 inches 61 in
Overall Width
47.38 in.
—
Ground Clearance
9.44 in.
—
Height to Top of ROPS
91.53 in
—
Height to Top of Cab Model
Not Applicable
—
Height to Top of ROPS (folded)
NOT FOUND
—
Min. Turn Radius without Brakes
NOT FOUND
—
Overall Length with 3-Point Hitch
113.98 in.
—

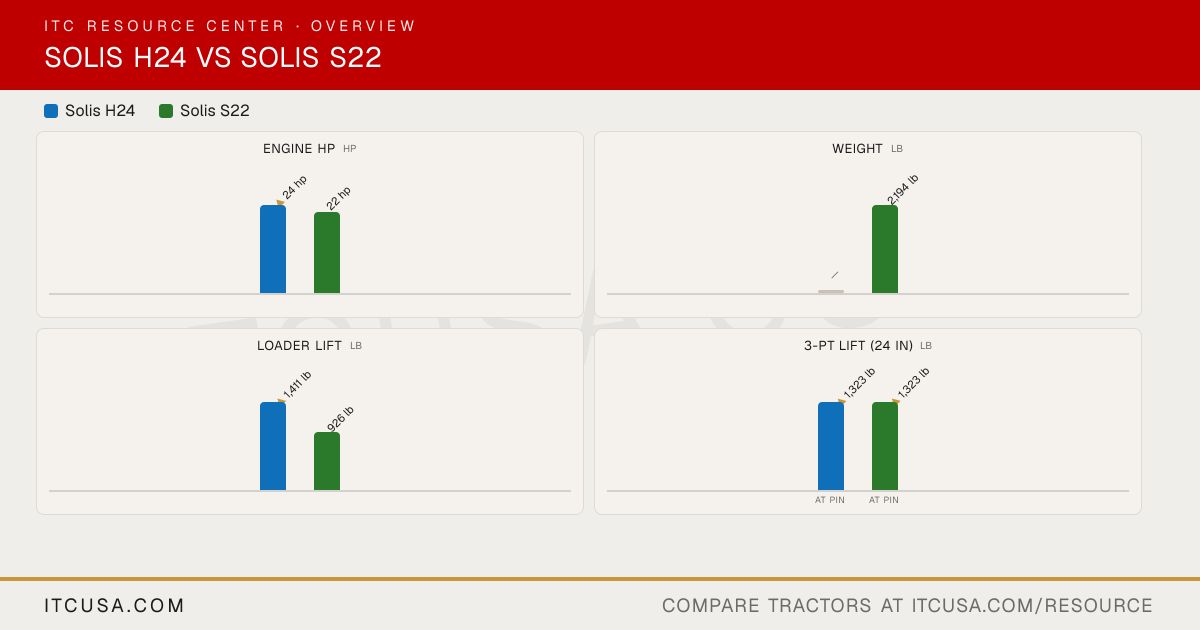

Solis H24 vs Solis S22: Quick Answers
Which has more horsepower, the Solis H24 or the Solis S22?
The Solis H24 leads on engine hp at 24 hp hp, compared to 22 hp hp for the Solis S22.
Which has more loader lift capacity, the Solis H24 or the Solis S22?
The Solis H24 leads on loader lift at 1,411 lb lb, compared to 926 lb lb for the Solis S22.
Which has more three-point hitch lift capacity, the Solis H24 or the Solis S22?
They are effectively tied: both machines are rated at 1,323 lb lb for 3-pt lift (24 in).
