Across 1 measurable specs, the Solis H26 leads 1 categories to 0. Machine pages: Solis H26 and Solis S24 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

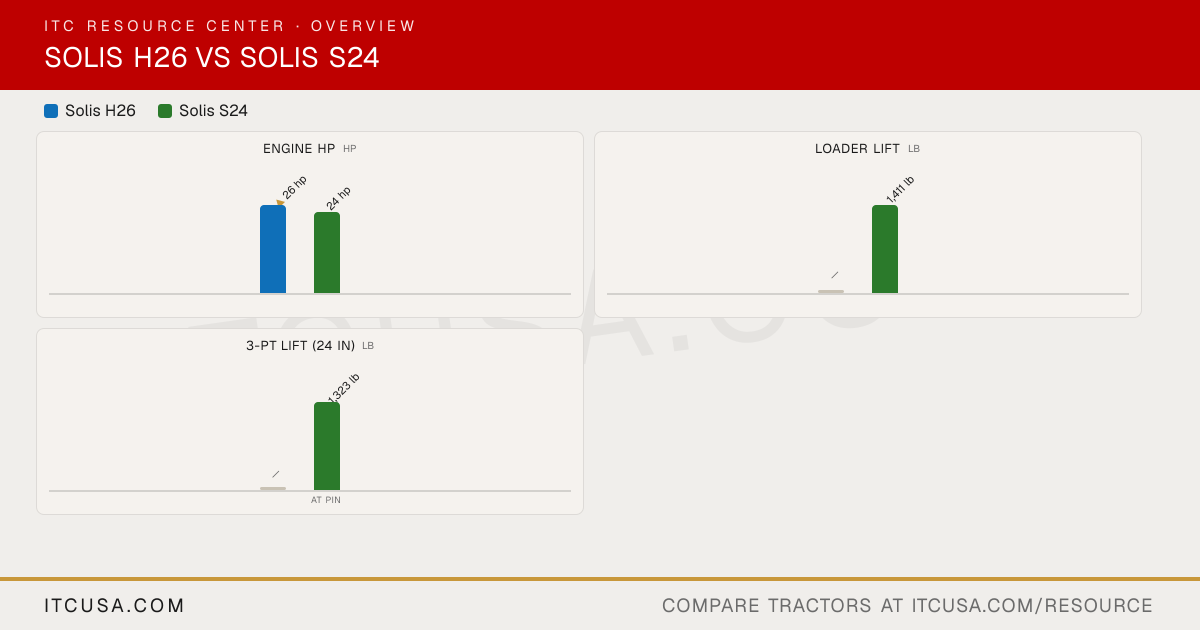

Category Verdict Spec Solis H26 Solis S24 Engine HP (hp) ▲ 26 hp24 hp Loader Lift (lb) — 1,411 lb 3-Pt Lift (24 in) (lb) — 1,323 lb Lift Height (in) — 85 in Breakout Force (lbf) — 1,146 lbf Hydraulic Flow (gpm) — 3.3 gpm Travel Speed (mph) 21 mph —
Overview Loader Work PTO Work
The headline numbers at a glance.
Solis H26 Solis S24
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
▶ EnginePTO Power NOT FOUND Not Published Alternator 42 A, 12 V alternator Air Cleaner Dry with Clogging Sensor Not Published Engine Type 3-Cylinder Diesel Engine 3-Cylinder, Naturally Aspirated Diesel Displacement 80.5 in³ 80.4 in³ Engine Model NOT FOUND Mitsubishi S3L2 No. of Cylinders 3 3 Rated Engine Speed 2500 rpm 2500 Cooling System Type NOT FOUND — no cooling system type explicitly stated for the H26 in any retrieved source Not Published Engine Manufacturer Mitsubishi Mitsubishi Engine Power (Gross) 26 hp 24 hp Engine Emissions Constraints NOT FOUND Not Published Fuel System — Not Published ▶ HydraulicsNo. of Optional Remote Valves 3 DA (Cabin) Not Published No. of Standard Remote Valves 1 DA 1DA Pump Type — Not Published Steering Flow — Not Published Implement Flow — 3.27 Total Hydraulic Flow — 3.27 Hydraulic System Type — open center Rear Remote Hydraulic Flow — Not Published Overall Hydraulic Pump Flow — 3.27 gpm 12.4 lpm ▶ PTO & HitchLift Control Type NOT FOUND Not Published Mid-PTO Availability Yes - Mid & Rear PTO standard Not Published PTO Rear — 540 rpm @ 2491 engine rpm PTO Type — Mechanical Hitch Lift Capacity — 1323 lbs 1,322.8 lb Category, 3-Point Hitch — CAT-1N Hitch Lift Capacity (at 24”) — Not Published ▶ Tire OptionsR3 Turf - Rear 13.80-16 33x15.5-16.5; 13.6x16 R3 Turf - Front 25x8.50-14 23x8.50-12; 25x8.50-14 R4 Industrial - Rear 33x15.50-16.5 33x15.5-16.5 R4 Industrial - Front 23x8.50-12 23x8.50-12 R1 Agricultural - Rear 280/70 R18 8.3x20; 8.3x24; 280/70 R18 R1 Agricultural - Front 6.5/80-12 | 280/70 R18 6x12; 7x14; 6.5/80-12 Tire Size & Options — Industrial: 23x8.50-12 & 33x15.5-16.5; Turf: 23x8.50-12 & 33x15.5-16.5; Agri: 6x12 & 8.3x20; Agri: 7x14 & 8.3x24; Radial: 6.5/80-12 & 280/70R18; Galaxy Pro: 220/55R12 & 280/70R16; R14: 23x8.50-12 R14T & 12~16.5 R14T ▶ Loader & AttachmentsLoader Breakout Force NOT FOUND 1,146 lb Quick Attach Loader System YES optional SB24 (MSL) Loader Lift Height — 85 in Loader Lift Capacity (Full Height) — 1,411 lb ▶ Transmission & DrivetrainClutch Wet Type Clutch for PTO Single No. of Speeds 2-speed hydrostatic 6F+2R Transmission Type Hydrostatic Mechanical (Gear) Max Travel Speed (Forward) 21.03 Km/Hr @2660 Not Published Max Travel Speed (Reverse) NOT FOUND Not Published Differential Lock & Limited Slip Options — Differential lock: Standard ▶ Chassis, Steering & ControlsSteering Power Steering Power steering Front Axle Type 4WD 4WD Seat Suspension & Adjustability Suspended seat with: suspension adjustment knob (knob 2), vertical height adjustment knob (knob 3), horizontal fore/aft lever (lever 1); operator weight range adjustable 50-308.6 lbf Not Published Brakes — Oil immersed brakes; mechanical foot operated Frame Type — Four-wheel drive Drawbar Capacity — Not Published Front Axle Rating — Not Published ▶ Dimensions & ManeuverabilityWheelbase 61.8 in 61.4 inches 61 in Height to Top of ROPS 92.5 in 84.34 Height to Top of Cab Model NOT FOUND — H26 is listed as ROPS-only in all sources; no cab model height found Not Applicable Height to Top of ROPS (folded) NOT FOUND Not Published Overall Width — 42.32 Ground Clearance — 9.44 in Min. Turn Radius without Brakes — Not Published Overall Length with 3-Point Hitch — 108.66 ▶ WeightWeight with ROPS and Loader — Not Published Weight with Cab and Loader — Not Applicable ▶ WarrantyWarranty Length & Coverage — 3 Year or 2,000 Hour Bumper-to-Bumper Tractor Warranty; 7 Year or 3,000 Hour Limited Powertrain Tractor Warranty; 1 Year Implement/Attachment Warranty (such as Solis loaders) ▶ Fluid CapacityCoolant Capacity — Not Published Crankcase Capacity — Not Published Fuel Tank Capacity — 7 gal Front Axle Fluid Capacity — Not Published Transmission / Hydraulic System Capacity — Not Published
Solis H26 vs Solis S24: Quick Answers
Which has more horsepower, the Solis H26 or the Solis S24? The Solis H26 leads on engine hp at 26 hp hp, compared to 24 hp hp for the Solis S24. More Head-to-Heads
