TYM 2610 vs TYM T5074

Across 0 measurable specs, this matchup is a dead heat: 0 categories to the TYM 2610, 0 to the TYM T5074. Machine pages: TYM 2610 and TYM T5074.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

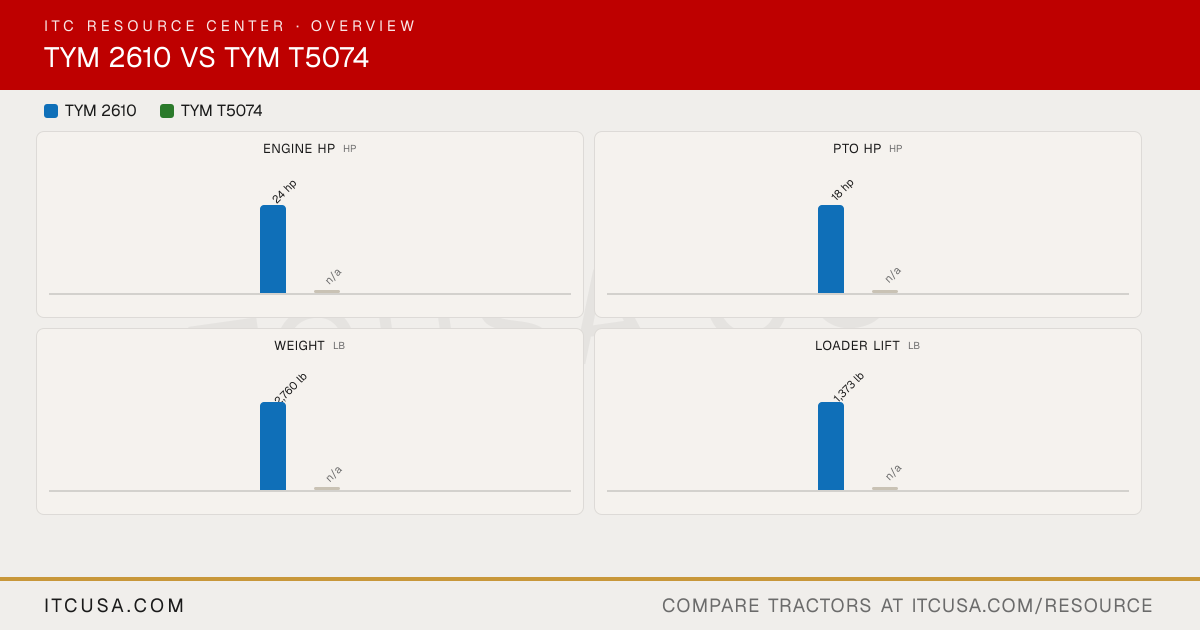

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYM2610	TYMT5074

▶Engine
Engine Manufacturer	TYM	n/a
Engine Type	3-cylinder, naturally aspirated diesel	n/a
No. of Cylinders	3	n/a
Displacement	71.7 in³	n/a
Rated Engine Speed	2800 rpm	n/a
Engine Power (Gross)	24 hp	n/a
PTO Power	18 hp	n/a
Engine Emissions Constraints	Tier 4	n/a
Cooling System Type	liquid-cooled	n/a
Air Cleaner	Dry element	n/a
Fuel System	IDI	n/a
Alternator	60 A, 12 V	n/a
▶Hydraulics
Pump Type	Single Gear Pump	n/a
Implement Flow	3.1 gpm	n/a
Steering Flow	4.3 gpm	n/a
Total Hydraulic Flow	7.4 gpm	n/a
Overall Hydraulic Pump Flow	Total: 7.9 gpm (Implement: 4.65 gpm, Steering: 3.3 gpm)	n/a
Hydraulic System Type	open center	n/a
Rear Remote Hydraulic Flow	3.1 gpm	n/a
No. of Standard Remote Valves	0	n/a
No. of Optional Remote Valves	Optional (2)	n/a
▶Fluid Capacity
Fuel Tank Capacity	6.0 gal | 6.1 gal	n/a
Coolant Capacity	1.3 gal	n/a
Crankcase Capacity	0.8 gal	n/a
Transmission / Hydraulic System Capacity	2.6 gal	n/a
Front Axle Fluid Capacity	0.2 gal	n/a
▶PTO & Hitch
PTO Type	Live	n/a
PTO Rear	540 rpm	n/a
Mid-PTO Availability	Mid-PTO available; 2,500 RPM mid-mount PTO option	n/a
Category, 3-Point Hitch	I	n/a
Hitch Lift Capacity	1,499 lb	n/a
Hitch Lift Capacity (at 24”)	974 lb	n/a
Lift Control Type	Position	n/a
▶Transmission & Drivetrain
Transmission Type	HST	n/a
No. of Speeds	3-Range	n/a
Max Travel Speed (Forward)	17 mph	n/a
Max Travel Speed (Reverse)	Not Published	n/a
Clutch	Dry Single Plate	n/a
Differential Lock & Limited Slip Options	Not Published	n/a
▶Chassis, Steering & Controls
Frame Type	Not Published	n/a
Steering	Hydrostatic	n/a
Brakes	Wet, Multi-disc	n/a
Seat Suspension & Adjustability	Comfortable suspension seat	n/a
Front Axle Type	Four-wheel drive	n/a
Front Axle Rating	Not Published	n/a
Drawbar Capacity	Not Published	n/a
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	122.9 in	n/a
Overall Width	53.8 in. | 53.9 in	n/a
Wheelbase	65.7 in	n/a
Ground Clearance	15.1 in. | 15 in	n/a
Min. Turn Radius without Brakes	9.6 ft	n/a
Height to Top of ROPS	91.5 in. | 91.7 in	n/a
Height to Top of ROPS (folded)	Not specified in searched sources; ROPS is confirmed foldable but folded height not published	n/a
Height to Top of Cab Model	Not Applicable	n/a
▶Weight
Weight with ROPS and Loader	2,760 lb	n/a
Weight with Cab and Loader	Not Applicable	n/a
▶Tire Options
Tire Size & Options	Front: R1 Agricultural 6-12 | R3 Turf 23x8.50-12 | R4 Industrial 25x8.50-14; Rear: R1 Agricultural 9.5-16 | R3 Turf 33x12.50-16.5 | R4 Industrial 14-17.5	n/a
R1 Agricultural - Front	6-12	n/a
R1 Agricultural - Rear	9.5-16	n/a
R3 Turf - Front	23x8.50-12	n/a
R3 Turf - Rear	33x12.50-16.5	n/a
R4 Industrial - Front	25x8.50-14	n/a
R4 Industrial - Rear	14-17.5	n/a
▶Loader & Attachments
Quick Attach Loader System	Skid Steer style quick attach; BL110S loader with skid steer quick attach bucket (50" standard bucket)	n/a
Loader Lift Height	91.1 in	n/a
Loader Lift Capacity (Full Height)	1,373 lb	n/a
Loader Breakout Force	2,077 lb	n/a
▶Warranty
Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	n/a
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet
