TYM 3515 vs TYM 4720

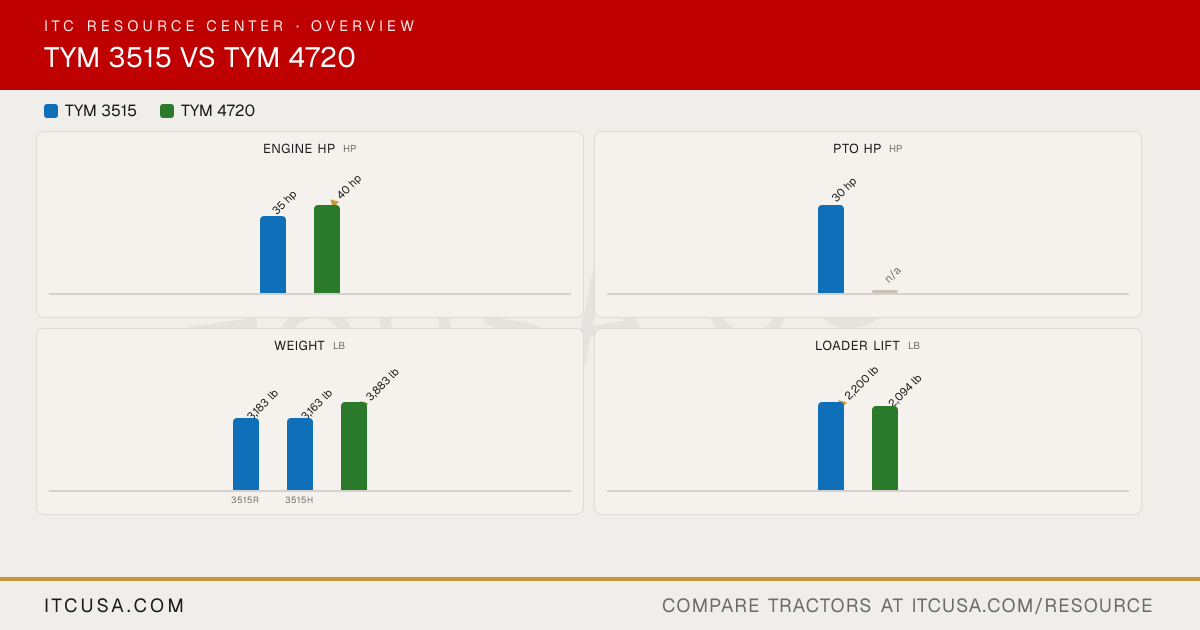

Across 7 measurable specs, the TYM 4720 leads 4 categories to 3. Machine pages: TYM 3515 and TYM 4720.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYM3515	TYM4720

▶Engine
Engine Manufacturer	TYM	Kukje
Engine Model	T1700N2	A2300N2
Engine Type	3-cylinder, naturally aspirated diesel	Diesel, liquid-cooled
No. of Cylinders	3	4
Displacement	104.5 in³	139 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	40 hp
PTO Power	30 hp	Not Published
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Not Published	Liquid-cooled
Air Cleaner	Dry element	Not Published
Fuel System	IDI (indirect injection)	Not Published
Alternator	50 A, 12 V	45 A, 12 V
▶Hydraulics
Pump Type	Dual gear pump	Not Published
Implement Flow	7.7 gpm	8.9 gpm
Steering Flow	4.2 gpm	Not Published
Total Hydraulic Flow	11.9 gpm	13.2 gpm
Overall Hydraulic Pump Flow	11.9 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Loader: 2 / Rear: 0	0
No. of Optional Remote Valves	Up to 4	Up to 2
▶Fluid Capacity
Fuel Tank Capacity	7.1 gal	11.1 gal
Coolant Capacity	5.3 qt	9.8 qt
Crankcase Capacity	4.5 qt	6 qt
Transmission / Hydraulic System Capacity	3515R: 9 gal; 3515H: 9.8 gal	9.7 gal
Front Axle Fluid Capacity	6.8 qt	Not Published
▶PTO & Hitch
PTO Type	Independent	Live (2-stage clutch)
PTO Rear	540 rpm	540 / 1000 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,306 lb	2,580 lb
Hitch Lift Capacity (at 24”)	2,425 lb	Not Published
Lift Control Type	Position control	Not Published
▶Transmission & Drivetrain
Transmission Type	3515R: Synchromesh; 3515H: HST	Synchromesh
No. of Speeds	3515R: F12 x R12; 3515H: 3-Range	12F/12R
Max Travel Speed (Forward)	3515R: 14.4 mph; 3515H: 18.8 mph	Not Published
Max Travel Speed (Reverse)	3515R: 14.3 mph; 3515H: 18.7 mph	Not Published
Clutch	3515R: Dry single plate; 3515H: None (HST)	Not Published
Differential Lock & Limited Slip Options	Differential lock (standard)	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet disc
Seat Suspension & Adjustability	Suspension seat	Not Published
Front Axle Type	Not Published	4WD (MFWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	120.9 in	127 in
Overall Width	56.3 in	61 in
Wheelbase	65.7 in	71 in
Ground Clearance	14.4 in	12.2 in
Min. Turn Radius without Brakes	L: 124.8 in; R: 121.3 in	Not Published
Height to Top of ROPS	97.3 in	88 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	3515R: 3,183 lb; 3515H: 3,163 lb	3,883 lb
Weight with ROPS and Loader	HST: 4,171 lb; Gear: 4,191 lb	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural 8-16 / 12.4-24; R3 Turf 27x8.5-15 / 41x14.00; R4 Industrial 10-16.5 / 420/70-24; optional R1 8.0-16 / 12.4-24 and R4 25x8.50-14 / 15x19.5	Agricultural: 8-18 front / 12.4-28 rear; Turf: 29x12.00-15 front / 44x18.00-20 rear; Industrial: 12-16.5 front / 17.5L-24 rear
R1 Agricultural - Front	8-16	8-18
R1 Agricultural - Rear	12.4-24	12.4-28
R3 Turf - Front	27x8.5-15, 6PR	29x12.00-15
R3 Turf - Rear	41x14.00, 4PR	44x18.00-20
R4 Industrial - Front	10-16.5, 6PR	12-16.5
R4 Industrial - Rear	420/70-24, 6PR	17.5L-24
▶Loader & Attachments
Quick Attach Loader System	BL150: Quick attach assembly (lever-lock)	Not Published
Loader Model	BL150	BL20
Loader Lift Height	BL150: 104.9 in	BL20: 103 in
Loader Lift Capacity (Full Height)	BL150: 2,200 lb	BL20: 2,094 lb
Loader Breakout Force	BL150: 3,422 lb	BL20: 2,755 lbf (at 19.7 in reach, not pivot pin) (19.7 in forward of pivot pin)
▶Warranty
Warranty Length & Coverage	24 months or 2,000 hours bumper-to-bumper (parts and labor); 72 months or 3,000 hours powertrain (non-commercial use, 20 to 70 engine hp); 12 months on front-end loaders, backhoes and mid-mount mowers	Not Published
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00 Branson TYM 15 Series Hydraulic Valve Cover $225.00	None tagged yet

Find a TYM dealer near you→

TYM 3515 vs TYM 4720: Quick Answers

Which has more horsepower, the TYM 3515 or the TYM 4720?

The TYM 4720 leads on engine hp at 40 hp hp, compared to 35 hp hp for the TYM 3515.

Which is heavier, the TYM 3515 or the TYM 4720?

The TYM 4720 leads on weight at 3,883 lb lb, compared to 3,183 lb lb for the TYM 3515.

Which has more loader lift capacity, the TYM 3515 or the TYM 4720?

The TYM 3515 leads on loader lift at 2,200 lb lb, compared to 2,094 lb lb for the TYM 4720.

Which has more three-point hitch lift capacity, the TYM 3515 or the TYM 4720?

The TYM 4720 leads on 3-pt lift (24 in) at 2,580 lb lb, compared to 2,425 lb lb for the TYM 3515.
