TYM 3515 vs TYM T194

Across 0 measurable specs, this matchup is a dead heat: 0 categories to the TYM 3515, 0 to the TYM T194. Machine pages: TYM 3515 and TYM T194.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

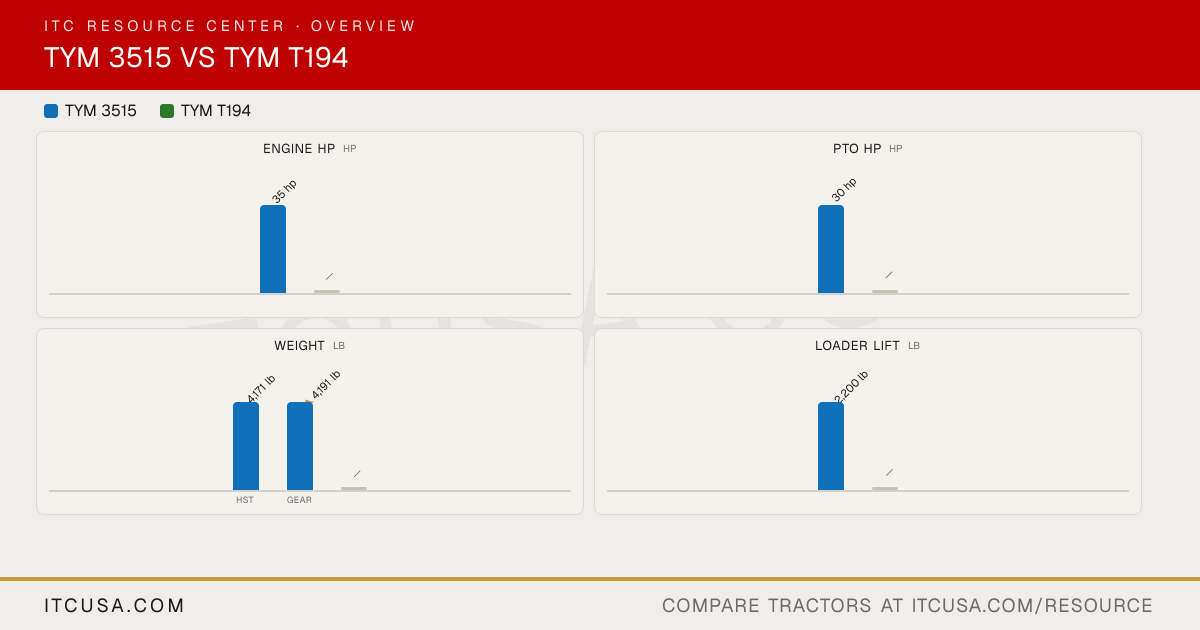

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYM3515	TYMT194

▶Engine
PTO Power	30 hp	—
Alternator	50 A, 12 V	—
Air Cleaner	Dry Element	—
Engine Type	3-cylinder, naturally aspirated diesel	—
Fuel System	IDI	—
Displacement	104.6 in³	—
No. of Cylinders	3	—
Rated Engine Speed	2600 rpm	—
Cooling System Type	Not Published	—
Engine Manufacturer	TYM	—
Engine Power (Gross)	35 hp	—
Engine Emissions Constraints	Tier 4	—
▶Weight
Weight with ROPS and Loader	HST: 4,171 lb; Gear: 4,191 lb	—
Weight with Cab and Loader	Not Applicable	—
▶Warranty
Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	—
▶Hydraulics
Pump Type	Single Gear Pump	—
Steering Flow	8.0 gpm	—
Implement Flow	4.3 gpm	—
Total Hydraulic Flow	12.3 gpm	—
Hydraulic System Type	Open center	—
Rear Remote Hydraulic Flow	Not Published	—
Overall Hydraulic Pump Flow	12.3 gpm	—
No. of Optional Remote Valves	Up to 4	—
No. of Standard Remote Valves	0	—
▶PTO & Hitch
PTO Rear	560 rpm	—
PTO Type	Independent	—
Lift Control Type	Position control	—
Hitch Lift Capacity	3,306 lb	—
Mid-PTO Availability	Not Published	—
Category, 3-Point Hitch	Category I	—
Hitch Lift Capacity (at 24”)	2,425 lb	—
▶Tire Options
R3 Turf - Rear	Not Published	—
R3 Turf - Front	Not Published	—
Tire Size & Options	R1 Agricultural, R4 Industrial	—
R4 Industrial - Rear	43x16.00-20	—
R4 Industrial - Front	28x8.50-15	—
R1 Agricultural - Rear	12.4-24	—
R1 Agricultural - Front	8.0-16	—
▶Fluid Capacity
Coolant Capacity	5.28 qt	—
Crankcase Capacity	4.5 qt	—
Fuel Tank Capacity	7.1 gal	—
Front Axle Fluid Capacity	1.7 qt	—
Transmission / Hydraulic System Capacity	HST: 9.8 gal; Gear: 8.9 gal	—
▶Loader & Attachments
Loader Lift Height	104.9 in	—
Loader Breakout Force	3,422 lb	—
Quick Attach Loader System	BL150: Quick attach assembly (lever-lock)	—
Loader Lift Capacity (Full Height)	2,200 lb	—
▶Transmission & Drivetrain
Clutch	HST: Not Applicable; Gear: Dry Single Plate	—
No. of Speeds	HST: 3-Range; Gear: F12 x R12	—
Transmission Type	HST: HST; Gear: Synchromesh	—
Max Travel Speed (Forward)	HST: 18.8 mph; Gear: 14.4 mph	—
Max Travel Speed (Reverse)	Not Published	—
Differential Lock & Limited Slip Options	Differential lock	—
▶Chassis, Steering & Controls
Brakes	Wet, Multi-disc	—
Steering	Hydrostatic	—
Frame Type	Not Published	—
Front Axle Type	Not Published	—
Drawbar Capacity	Not Published	—
Front Axle Rating	Not Published	—
Seat Suspension & Adjustability	Comfortable suspension seat	—
▶Dimensions & Maneuverability
Wheelbase	65.7 in	—
Overall Width	56.3 in	—
Ground Clearance	14.4 in	—
Height to Top of ROPS	97.3 in	—
Height to Top of Cab Model	Not Applicable	—
Height to Top of ROPS (folded)	Not Published	—
Min. Turn Radius without Brakes	102 in	—
Overall Length with 3-Point Hitch	120.9 in	—
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet
