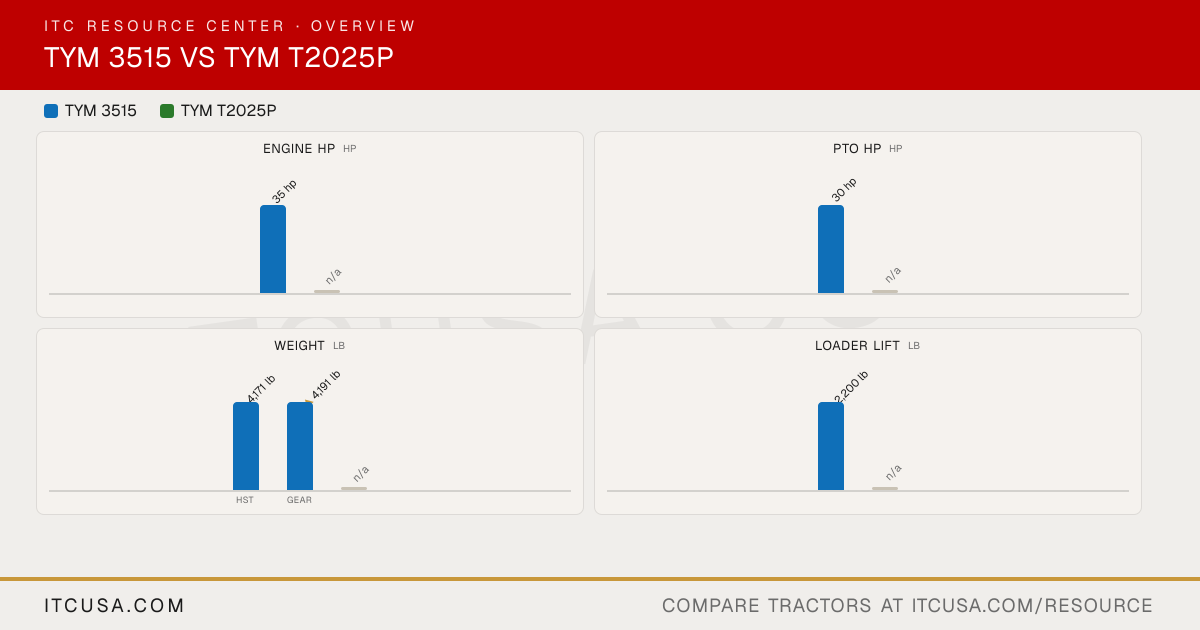

Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM3515
TYMT2025P
Engine Manufacturer
TYM
n/a
Engine Type
3-cylinder, naturally aspirated diesel
n/a
No. of Cylinders
3
n/a
Displacement
104.6 in³
n/a
Rated Engine Speed
2600 rpm
n/a
Engine Power (Gross)
35 hp
n/a
PTO Power
30 hp
n/a
Engine Emissions Constraints
Tier 4
n/a
Cooling System Type
Not Published
n/a
Air Cleaner
Dry Element
n/a
Fuel System
IDI
n/a
Alternator
50 A, 12 V
n/a
Pump Type
Single Gear Pump
n/a
Implement Flow
4.3 gpm
n/a
Steering Flow
8.0 gpm
n/a
Total Hydraulic Flow
12.3 gpm
n/a
Overall Hydraulic Pump Flow
12.3 gpm
n/a
Hydraulic System Type
Open center
n/a
Rear Remote Hydraulic Flow
Not Published
n/a
No. of Standard Remote Valves
0
n/a
No. of Optional Remote Valves
Up to 4
n/a
Fuel Tank Capacity
7.1 gal
n/a
Coolant Capacity
5.28 qt
n/a
Crankcase Capacity
4.5 qt
n/a
Transmission / Hydraulic System Capacity
HST: 9.8 gal; Gear: 8.9 gal
n/a
Front Axle Fluid Capacity
1.7 qt
n/a
PTO Type
Independent
n/a
PTO Rear
560 rpm
n/a
Mid-PTO Availability
Not Published
n/a
Category, 3-Point Hitch
Category I
n/a
Hitch Lift Capacity
3,306 lb
n/a
Hitch Lift Capacity (at 24”)
2,425 lb
n/a
Lift Control Type
Position control
n/a
Transmission Type
HST: HST; Gear: Synchromesh
n/a
No. of Speeds
HST: 3-Range; Gear: F12 x R12
n/a
Max Travel Speed (Forward)
HST: 18.8 mph; Gear: 14.4 mph
n/a
Max Travel Speed (Reverse)
Not Published
n/a
Clutch
HST: Not Applicable; Gear: Dry Single Plate
n/a
Differential Lock & Limited Slip Options
Differential lock
n/a
Frame Type
Not Published
n/a
Steering
Hydrostatic
n/a
Brakes
Wet, Multi-disc
n/a
Seat Suspension & Adjustability
Comfortable suspension seat
n/a
Front Axle Type
Not Published
n/a
Front Axle Rating
Not Published
n/a
Drawbar Capacity
Not Published
n/a
Overall Length with 3-Point Hitch
120.9 in
n/a
Overall Width
56.3 in
n/a
Wheelbase
65.7 in
n/a
Ground Clearance
14.4 in
n/a
Min. Turn Radius without Brakes
102 in
n/a
Height to Top of ROPS
97.3 in
n/a
Height to Top of ROPS (folded)
Not Published
n/a
Height to Top of Cab Model
Not Applicable
n/a
Weight with ROPS and Loader
HST: 4,171 lb; Gear: 4,191 lb
n/a
Weight with Cab and Loader
Not Applicable
n/a
Tire Size & Options
R1 Agricultural, R4 Industrial
n/a
R1 Agricultural - Front
8.0-16
n/a
R1 Agricultural - Rear
12.4-24
n/a
R3 Turf - Front
Not Published
n/a
R3 Turf - Rear
Not Published
n/a
R4 Industrial - Front
28x8.50-15
n/a
R4 Industrial - Rear
43x16.00-20
n/a
Quick Attach Loader System
BL150: Quick attach assembly (lever-lock)
n/a
Loader Lift Height
104.9 in
n/a
Loader Lift Capacity (Full Height)
2,200 lb
n/a
Loader Breakout Force
3,422 lb
n/a
Warranty Length & Coverage
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
