Across 2 measurable specs, the TYM 3520 leads 1 categories to 0 (1 tied). Machine pages: TYM 3515C and TYM 3520.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | TYM 3515C | TYM 3520 |
|---|
| Engine HP (hp) | 35 hp | 35 hp |
| PTO HP (hp) | 30 hp | n/a |
| Weight (lb) | 3,552 lb | ▲ 3,624 lb |
| Loader Lift (lb) | 2,200 lb | n/a |
| 3-Pt Lift (24 in) (lb) | 2,425 lb | n/a |
| Lift Height (in) | 104.9 in | n/a |
| Breakout Force (lbf) | 3,422 lbf | n/a |
| Hydraulic Flow (gpm) | 11.9 gpm | n/a |
| Travel Speed (mph) | 18 mph | n/a |

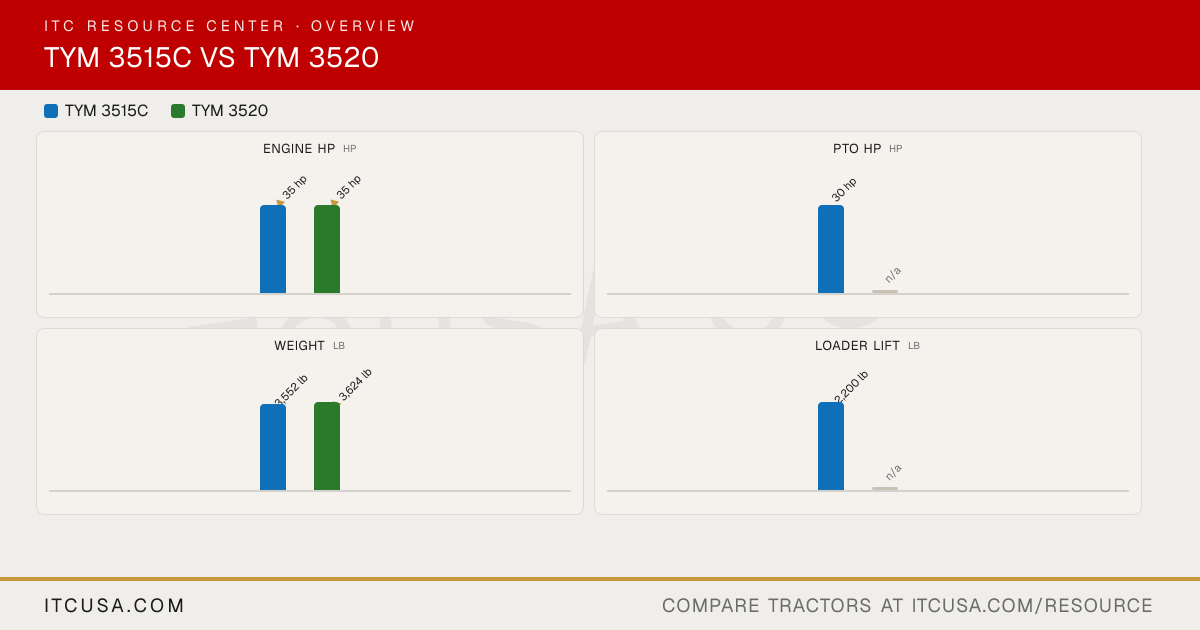

The headline numbers at a glance.
TYM 3515CTYM 3520
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
|
|---|
| Engine Manufacturer | TYM | Kukje |
|---|
| Engine Model | T1700N2 | 3T90L-ATC |
|---|
| Engine Type | 3-cylinder, naturally aspirated diesel | Diesel, liquid-cooled |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 104.5 in³ | 109.5 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2600 rpm |
|---|
| Engine Power (Gross) | 35 hp | 35 hp |
|---|
| PTO Power | 30 hp | Not Published |
|---|
| Engine Emissions Constraints | Tier 4 | Not Published |
|---|
| Cooling System Type | Not Published | Liquid-cooled |
|---|
| Air Cleaner | Dry element | Dry element |
|---|
| Fuel System | IDI (indirect injection) | Not Published |
|---|
| Alternator | 70 A, 12 V | Not Published |
|---|
|
|---|
| Pump Type | Dual gear pump | Not Published |
|---|
| Implement Flow | 7.7 gpm | Not Published |
|---|
| Steering Flow | 4.2 gpm | Not Published |
|---|
| Total Hydraulic Flow | 11.9 gpm | Not Published |
|---|
| Overall Hydraulic Pump Flow | 11.9 gpm | Not Published |
|---|
| Hydraulic System Type | Open center | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Loader: 4 / Rear: 0 | Not Published |
|---|
| No. of Optional Remote Valves | Up to 4 | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 7.1 gal | 10.6 gal |
|---|
| Coolant Capacity | 5.3 qt | Not Published |
|---|
| Crankcase Capacity | 4.5 qt | Not Published |
|---|
| Transmission / Hydraulic System Capacity | 9.8 gal | Not Published |
|---|
| Front Axle Fluid Capacity | 6.8 qt | Not Published |
|---|
|
|---|
| PTO Type | Independent | Transmission-driven |
|---|
| PTO Rear | 540 rpm | 540 / 1000 rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category I | Category I |
|---|
| Hitch Lift Capacity | 3,306 lb | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 2,425 lb | Not Published |
|---|
| Lift Control Type | Position control | Not Published |
|---|
|
|---|
| Transmission Type | HST | Synchronized shuttle |
|---|
| No. of Speeds | 3-Range | 12F/12R |
|---|
| Max Travel Speed (Forward) | 18 mph | Not Published |
|---|
| Max Travel Speed (Reverse) | 17.95 mph | Not Published |
|---|
| Clutch | None (HST) | Not Published |
|---|
| Differential Lock & Limited Slip Options | Differential lock (standard) | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic power steering | Power steering |
|---|
| Brakes | Wet, multi-disc | Wet disc |
|---|
| Seat Suspension & Adjustability | Suspension seat | Not Published |
|---|
| Front Axle Type | Not Published | 4WD (MFWD) |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 120.9 in | 129.7 in |
|---|
| Overall Width | 55.6 in | 60 in |
|---|
| Wheelbase | 65.7 in | 68.8 in |
|---|
| Ground Clearance | 12.9 in | 12.2 in |
|---|
| Min. Turn Radius without Brakes | L: 124.8 in; R: 121.3 in | Not Published |
|---|
| Height to Top of ROPS | Not Published | 86.4 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 88.0 in | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 3,552 lb | 3,624 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | 4,560 lb | Not Published |
|---|
|
|---|
| Tire Size & Options | R1 Agricultural 7-16 / 11.2-24; R3 Turf 27x8.5-15 / 41x14.00; R4 Industrial 25x8.5-14 / 380/70-19.5 | Agricultural: 8-18 front / 12.4-28 rear |
|---|
| R1 Agricultural - Front | 7-16 | 8-18 |
|---|
| R1 Agricultural - Rear | 11.2-24 | 12.4-28 |
|---|
| R3 Turf - Front | 27x8.5-15, 6PR | Not Published |
|---|
| R3 Turf - Rear | 41x14.00, 4PR | Not Published |
|---|
| R4 Industrial - Front | 25x8.5-14, 6PR | Not Published |
|---|
| R4 Industrial - Rear | 380/70-19.5, 6PR | Not Published |
|---|
|
|---|
| Quick Attach Loader System | BL150C: Quick attachment assembly | Not Published |
|---|
| Loader Model | BL150C | Not Published |
|---|
| Loader Lift Height | BL150C: 104.9 in | Not Published |
|---|
| Loader Lift Capacity (Full Height) | BL150C: 2,200 lb | Not Published |
|---|
| Loader Breakout Force | BL150C: 3,422 lb | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | 24 months or 2,000 hours bumper-to-bumper (parts and labor); 72 months or 3,000 hours powertrain (non-commercial use, 20 to 70 engine hp); 12 months on front-end loaders, backhoes and mid-mount mowers | Not Published |
|---|
|
|---|
| Accessories that fit | | None tagged yet |
|---|
TYM 3515C vs TYM 3520: Quick Answers
- Which has more horsepower, the TYM 3515C or the TYM 3520?
- They are effectively tied: both machines are rated at 35 hp hp for engine hp.
- Which is heavier, the TYM 3515C or the TYM 3520?
- The TYM 3520 leads on weight at 3,624 lb lb, compared to 3,552 lb lb for the TYM 3515C.
