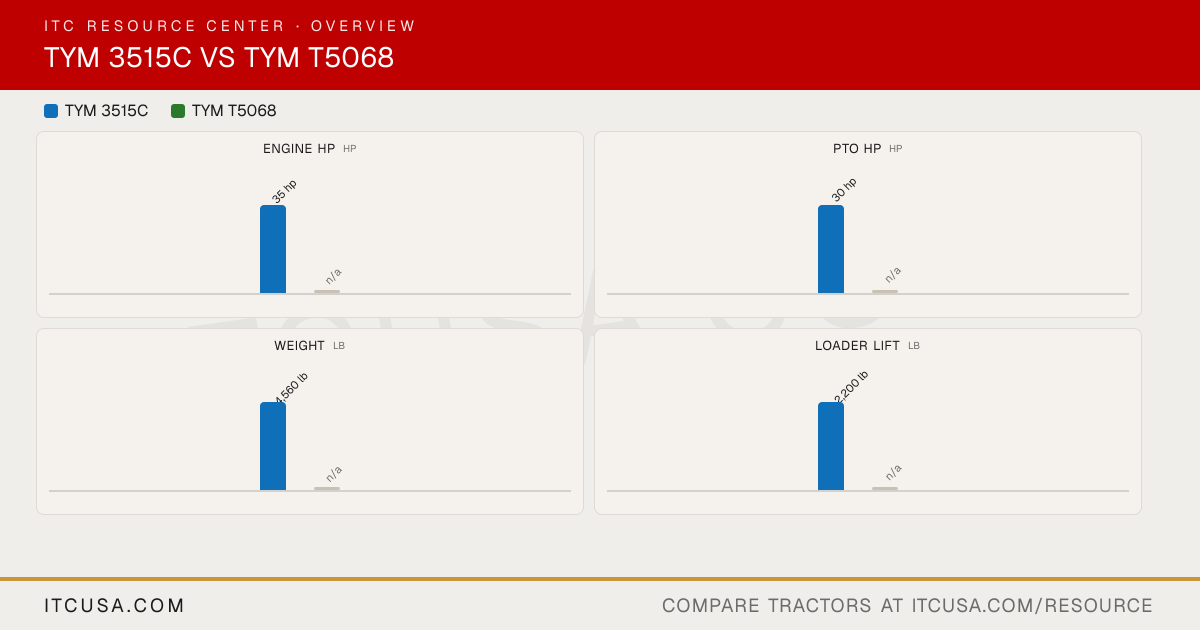

Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM3515C
TYMT5068
Engine Manufacturer
TYM
n/a
Engine Type
3-cylinder, naturally aspirated diesel
n/a
No. of Cylinders
3
n/a
Displacement
104.6 in³
n/a
Rated Engine Speed
2600 rpm
n/a
Engine Power (Gross)
35 hp
n/a
PTO Power
30 hp
n/a
Engine Emissions Constraints
Tier 4
n/a
Cooling System Type
Not Published
n/a
Air Cleaner
Dry element
n/a
Fuel System
IDI
n/a
Alternator
70 A, 12 V
n/a
Pump Type
Dual gear pump
n/a
Implement Flow
7.7 gpm
n/a
Steering Flow
4.2 gpm
n/a
Total Hydraulic Flow
11.9 gpm
n/a
Overall Hydraulic Pump Flow
11.9 gpm
n/a
Hydraulic System Type
Open center
n/a
Rear Remote Hydraulic Flow
Not Published
n/a
No. of Standard Remote Valves
0
n/a
No. of Optional Remote Valves
Not Published
n/a
Fuel Tank Capacity
7.1 gal
n/a
Coolant Capacity
5.3 qt
n/a
Crankcase Capacity
4.5 qt
n/a
Transmission / Hydraulic System Capacity
9.8 gal
n/a
Front Axle Fluid Capacity
6.8 qt
n/a
PTO Type
Independent
n/a
PTO Rear
540 rpm
n/a
Mid-PTO Availability
Not Published
n/a
Category, 3-Point Hitch
Category I
n/a
Hitch Lift Capacity
3,306 lb
n/a
Hitch Lift Capacity (at 24”)
2,425 lb
n/a
Lift Control Type
Position control
n/a
Transmission Type
HST
n/a
No. of Speeds
3-Range
n/a
Max Travel Speed (Forward)
18 mph
n/a
Max Travel Speed (Reverse)
Not Published
n/a
Clutch
Not Applicable
n/a
Differential Lock & Limited Slip Options
Not Published
n/a
Frame Type
Not Published
n/a
Steering
Hydrostatic
n/a
Brakes
Wet, multi disc
n/a
Seat Suspension & Adjustability
Comfortable suspension seat
n/a
Front Axle Type
Not Published
n/a
Front Axle Rating
Not Published
n/a
Drawbar Capacity
Not Published
n/a
Overall Length with 3-Point Hitch
120.9 in
n/a
Overall Width
55.6 in
n/a
Wheelbase
65.7 in
n/a
Ground Clearance
14.4 in
n/a
Min. Turn Radius without Brakes
L: 124.8 in; R: 121.3 in
n/a
Height to Top of ROPS
Not Applicable
n/a
Height to Top of ROPS (folded)
Not Applicable
n/a
Height to Top of Cab Model
97.3 in
n/a
Weight with ROPS and Loader
Not Applicable
n/a
Weight with Cab and Loader
4,560 lb
n/a
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
n/a
R1 Agricultural - Front
7.0-16
n/a
R1 Agricultural - Rear
11.2-24
n/a
R3 Turf - Front
27x8.5-15, 6PR
n/a
R3 Turf - Rear
41x14.00, 4PR
n/a
R4 Industrial - Front
25x8.5-14, 6PR; 28x8.5-14
n/a
R4 Industrial - Rear
380/70-19.5, 6PR; 15-19.5
n/a
Quick Attach Loader System
BL150C: Quick attachment assembly
n/a
Loader Lift Height
104.9 in
n/a
Loader Lift Capacity (Full Height)
2,200 lb
n/a
Loader Breakout Force
3,422 lb
n/a
Warranty Length & Coverage
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
