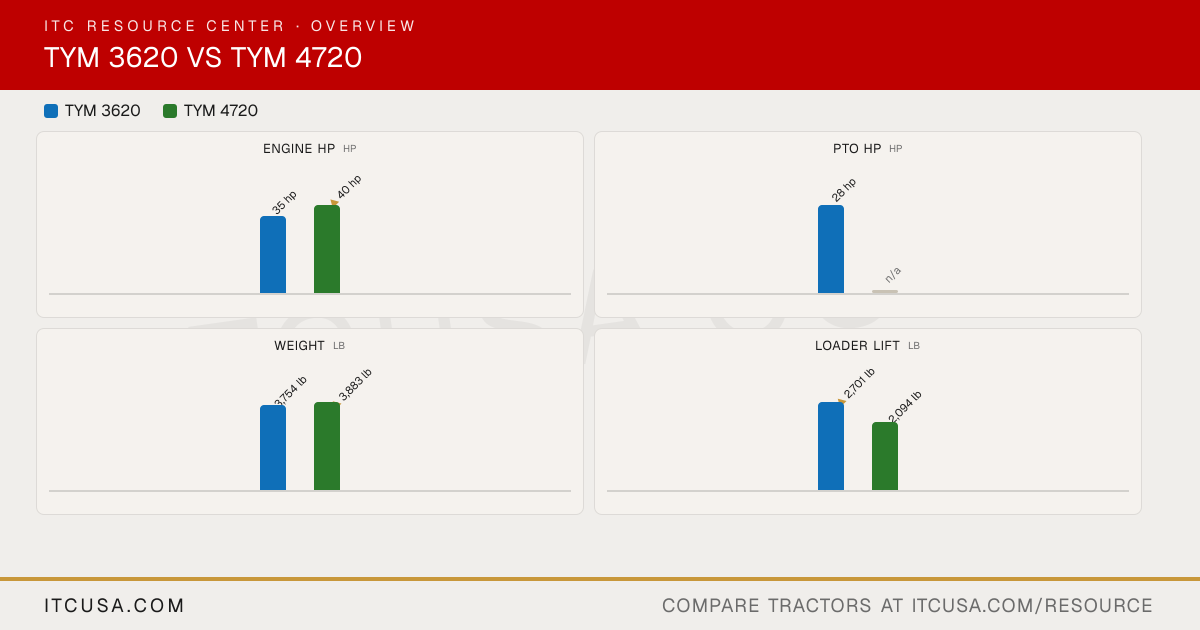

Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM3620
TYM4720
Engine Manufacturer
TYM
Kukje
Engine Model
T1700N2
A2300N2
Engine Type
3-cylinder, naturally aspirated diesel
Diesel, liquid-cooled
No. of Cylinders
3
4
Displacement
104.5 in³
139 in³
Rated Engine Speed
2500 rpm
2600 rpm
Engine Power (Gross)
35 hp
40 hp
PTO Power
28 hp
Not Published
Engine Emissions Constraints
Tier 4
Not Published
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Dry element
Not Published
Fuel System
IDI (indirect injection)
Not Published
Alternator
50 A, 12 V
45 A, 12 V
Pump Type
Dual gear pump
Not Published
Implement Flow
7.7 gpm
8.9 gpm
Steering Flow
4.2 gpm
Not Published
Total Hydraulic Flow
11.9 gpm
13.2 gpm
Overall Hydraulic Pump Flow
11.9 gpm
Not Published
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
None standard (optional, up to 4)
0
No. of Optional Remote Valves
Up to 4
Up to 2
Fuel Tank Capacity
11.8 gal
11.1 gal
Coolant Capacity
6.0 qt
9.8 qt
Crankcase Capacity
4.5 qt
6 qt
Transmission / Hydraulic System Capacity
3620R: 10.3 gal; 3620H: 11.1 gal
9.7 gal
Front Axle Fluid Capacity
6.8 qt
Not Published
PTO Type
Independent
Live (2-stage clutch)
PTO Rear
540/750 rpm
540 / 1000 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
3,306 lb
2,580 lb
Hitch Lift Capacity (at 24”)
2,425 lb
Not Published
Lift Control Type
Position control
Not Published
Transmission Type
3620R: Synchromesh; 3620H: HST
Synchromesh
No. of Speeds
3620R: F16 x R16; 3620H: 4-Range
12F/12R
Max Travel Speed (Forward)
3620R: 16 mph; 3620H: 19.5 mph
Not Published
Max Travel Speed (Reverse)
3620R: 15.2 mph; 3620H: 19.5 mph
Not Published
Clutch
3620R: Dry single type; 3620H: No clutch (HST)
Not Published
Differential Lock & Limited Slip Options
Standard differential lock
Not Published
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic power steering
Brakes
Wet, multi-disc
Wet disc
Seat Suspension & Adjustability
Suspension seat
Not Published
Front Axle Type
4WD (selectable 2WD/4WD)
4WD (MFWD)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
127.4 in
127 in
Overall Width
64.9 in
61 in
Wheelbase
71.1 in
71 in
Ground Clearance
15.5 in
12.2 in
Min. Turn Radius without Brakes
L: 128.7 in; R: 126.0 in
Not Published
Height to Top of ROPS
98.4 in
88 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
3,754 lb
3,883 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
Agricultural: 8-18 front / 12.4-28 rear; Turf: 29x12.00-15 front / 44x18.00-20 rear; Industrial: 12-16.5 front / 17.5L-24 rear
R1 Agricultural - Front
9.5-16
8-18
R1 Agricultural - Rear
12.4-28
12.4-28
R3 Turf - Front
27x8.5-15 / 29x12.5-15
29x12.00-15
R3 Turf - Rear
41x14-20 / 44x18-20
44x18.00-20
R4 Industrial - Front
10x16.5
12-16.5
R4 Industrial - Rear
420/70x24
17.5L-24
Quick Attach Loader System
BL200: Quick attach mechanism
Not Published
Loader Model
BL200
BL20
Loader Lift Height
BL200: 106.6 in
BL20: 103 in
Loader Lift Capacity (Full Height)
BL200: 2,701 lb
BL20: 2,094 lb
Loader Breakout Force
BL200: 3,660 lb
BL20: 2,755 lbf (at 19.7 in reach, not pivot pin) (19.7 in forward of pivot pin)
Warranty Length & Coverage
Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3,000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes
