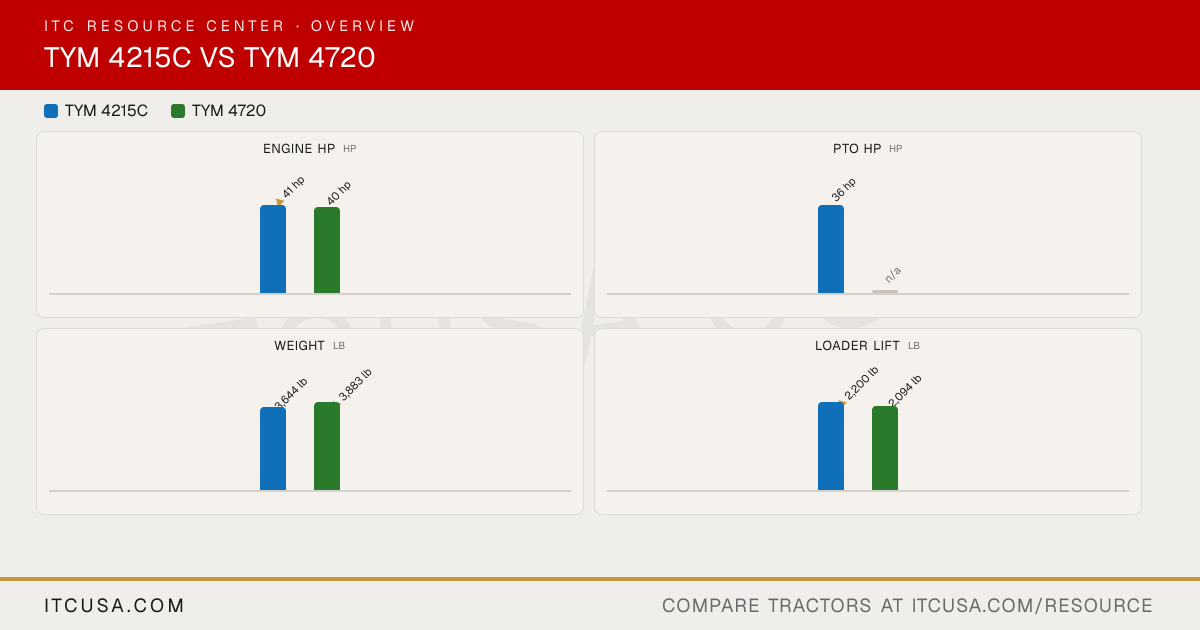

Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM4215C
TYM4720
Engine Manufacturer
TYM
Kukje
Engine Model
T2000N2
A2300N2
Engine Type
4-cylinder, naturally aspirated diesel
Diesel, liquid-cooled
No. of Cylinders
4
4
Displacement
139.5 in³
139 in³
Rated Engine Speed
2600 rpm
2600 rpm
Engine Power (Gross)
41 hp
40 hp
PTO Power
36 hp
Not Published
Engine Emissions Constraints
Tier 4
Not Published
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Dry element
Not Published
Fuel System
IDI
Not Published
Alternator
70 A, 12 V
45 A, 12 V
Pump Type
Dual gear pump
Not Published
Implement Flow
11.4 gpm
8.9 gpm
Steering Flow
5.2 gpm
Not Published
Total Hydraulic Flow
16.5 gpm
13.2 gpm
Overall Hydraulic Pump Flow
16.5 gpm
Not Published
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Rear: 0 (loader: 2)
0
No. of Optional Remote Valves
Up to 4
Up to 2
Fuel Tank Capacity
7.1 gal
11.1 gal
Coolant Capacity
5.8 qt
9.8 qt
Crankcase Capacity
4.8 qt
6 qt
Transmission / Hydraulic System Capacity
9.8 gal
9.7 gal
Front Axle Fluid Capacity
6.8 qt
Not Published
PTO Type
Independent
Live (2-stage clutch)
PTO Rear
540 rpm
540 / 1000 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
3,306 lb
2,580 lb
Hitch Lift Capacity (at 24”)
2,425 lb
Not Published
Lift Control Type
Position control
Not Published
Transmission Type
HST (hydrostatic)
Synchromesh
No. of Speeds
3-range hydrostatic
12F/12R
Max Travel Speed (Forward)
18 mph
Not Published
Max Travel Speed (Reverse)
17.95 mph
Not Published
Clutch
Not Published
Not Published
Differential Lock & Limited Slip Options
Differential lock (standard)
Not Published
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic power steering
Brakes
Wet, multi-disc
Wet disc
Seat Suspension & Adjustability
Suspension seat
Not Published
Front Axle Type
Not Published
4WD (MFWD)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
120.9 in
127 in
Overall Width
55.6 in
61 in
Wheelbase
65.7 in
71 in
Ground Clearance
13.1 in
12.2 in
Min. Turn Radius without Brakes
124.8 in (left); 121.3 in (right)
Not Published
Height to Top of ROPS
Not Published
88 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
89.3 in
Not Published
Tractor Weight (Base)
3,644 lb
3,883 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
4,652 lb
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
Agricultural: 8-18 front / 12.4-28 rear; Turf: 29x12.00-15 front / 44x18.00-20 rear; Industrial: 12-16.5 front / 17.5L-24 rear
R1 Agricultural - Front
7-16
8-18
R1 Agricultural - Rear
11.2-24
12.4-28
R3 Turf - Front
27x8.5-15, 6PR
29x12.00-15
R3 Turf - Rear
41x14.00, 4PR
44x18.00-20
R4 Industrial - Front
25x8.5-14, 6PR
12-16.5
R4 Industrial - Rear
380/70-19.5, 6PR (standard); 15-19.5 (option)
17.5L-24
Quick Attach Loader System
BL150C: quick attachment assembly
Not Published
Loader Model
BL150C
BL20
Loader Lift Height
BL150C: 104.9 in
BL20: 103 in
Loader Lift Capacity (Full Height)
BL150C: 2,200 lb
BL20: 2,094 lb
Loader Breakout Force
BL150C: 3,422 lb
BL20: 2,755 lbf (at 19.7 in reach, not pivot pin) (19.7 in forward of pivot pin)
Warranty Length & Coverage
Bumper-to-bumper 24 months or 2,000 hours (parts and labor); powertrain 72 months or 3,000 hours for non-commercial use (36 months or 2,000 hours rental and commercial); loaders and backhoes 12 months
