TYM 4815 vs TYM 4815C

Across 9 measurable specs, this matchup is a dead heat: 1 categories to the TYM 4815, 1 to the TYM 4815C, 7 tied. Machine pages: TYM 4815 and TYM 4815C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

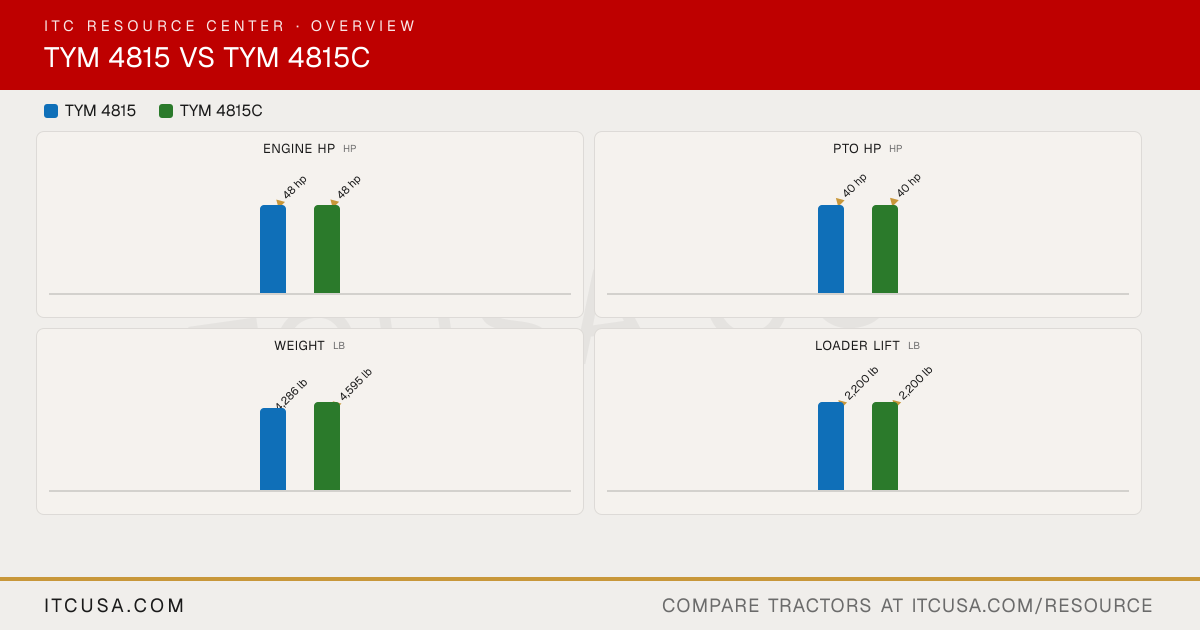

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYM4815	TYM4815C

▶Engine
Engine Manufacturer	TYM	TYM
Engine Model	T2300N2	T2300N2
Engine Type	4-cylinder, naturally aspirated diesel	4-cylinder, naturally aspirated diesel
No. of Cylinders	4	4
Displacement	139.5 in³	139.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	48 hp	48 hp
PTO Power	40 hp	40 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	Dry element
Fuel System	IDI	IDI
Alternator	50 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Dual gear pump	Dual gear pump
Implement Flow	11.4 gpm	11.4 gpm
Steering Flow	5.2 gpm	5.2 gpm
Total Hydraulic Flow	16.5 gpm	16.5 gpm
Overall Hydraulic Pump Flow	16.5 gpm	16.5 gpm
Hydraulic System Type	Dual gear pump	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Rear: 0 (loader: 2)	Rear: 0 (loader: 4)
No. of Optional Remote Valves	Up to 4	Up to 4
▶Fluid Capacity
Fuel Tank Capacity	7.1 gal	7.1 gal
Coolant Capacity	5.8 qt	6.2 qt
Crankcase Capacity	4.8 qt	4.8 qt
Transmission / Hydraulic System Capacity	4815R: 9 gal; 4815H: 9.8 gal	9.8 gal
Front Axle Fluid Capacity	6.8 qt	6.8 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,306 lb	3,306 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2,425 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	4815R: Synchromesh shuttle; 4815H: HST	HST (hydrostatic)
No. of Speeds	4815R: 12 forward / 12 reverse; 4815H: 3-range hydrostatic	3-range hydrostatic
Max Travel Speed (Forward)	4815R: 14.9 mph; 4815H: 18.8 mph	18 mph
Max Travel Speed (Reverse)	4815R: 14.3 mph; 4815H: 18.7 mph	17.95 mph
Clutch	4815R: Dry single plate; 4815H: Not applicable (HST)	Not Published
Differential Lock & Limited Slip Options	Differential lock (standard)	Differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic	Hydrostatic
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Suspension seat	Suspension seat
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	56.3 in	55.6 in
Wheelbase	65.7 in	65.7 in
Ground Clearance	14.4 in	13.1 in
Min. Turn Radius without Brakes	124.8 in (left); 121.3 in (right)	124.8 in (left); 121.3 in (right)
Height to Top of ROPS	97.3 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	89.3 in
Overall Length	120.9 in (with 3-point hitch)	120.9 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	3,278 lb	3,587 lb
Weight with ROPS and Loader	4,286 lb (3,278 + 1,008, computed)	Not Published
Weight with Cab and Loader	Not Published	4,595 lb (3,587 + 1,008, computed; BL150C loader total weight)
▶Tire Options
Tire Size & Options	R1 Agricultural, R4 Industrial	R1 Agricultural, R4 Industrial
R1 Agricultural - Front	8-16	7-16
R1 Agricultural - Rear	12.4-24	11.2-24
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	10-16.5	28x8.5-14
R4 Industrial - Rear	420/70x24	15-19.5
▶Loader & Attachments
Quick Attach Loader System	BL150: quick attachment assembly	BL150C: quick attachment assembly
Loader Model	BL150	BL150C
Loader Lift Height	BL150: 104.9 in	BL150C: 104.9 in
Loader Lift Capacity (Full Height)	BL150: 2,200 lb (at pivot pin)	BL150C: 2,200 lb (at pivot pin)
Loader Breakout Force	BL150: 3,422 lb (at pivot pin, ground level)	BL150C: 3,422 lb (at pivot pin, ground level)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 2,000 hours, parts and labor; non-commercial: powertrain 72 months or 3,000 hours; rental and commercial: powertrain 36 months or 2,000 hours; loaders and backhoes 12 months	Basic 24 months or 2,000 hours, parts and labor; non-commercial: powertrain 72 months or 3,000 hours; rental and commercial: powertrain 36 months or 2,000 hours; loaders and backhoes 12 months
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00 Branson TYM 15 Series Hydraulic Valve Cover $225.00	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00

Find a TYM dealer near you→

TYM 4815 vs TYM 4815C: Quick Answers

Which has more horsepower, the TYM 4815 or the TYM 4815C?

They are effectively tied: both machines are rated at 48 hp hp for engine hp.

Which has more PTO horsepower, the TYM 4815 or the TYM 4815C?

They are effectively tied: both machines are rated at 40 hp hp for pto hp.

Which is heavier, the TYM 4815 or the TYM 4815C?

The TYM 4815C leads on weight at 3,587 lb lb, compared to 3,278 lb lb for the TYM 4815.

Which has more loader lift capacity, the TYM 4815 or the TYM 4815C?

They are effectively tied: both machines are rated at 2,200 lb lb for loader lift.

Which has more three-point hitch lift capacity, the TYM 4815 or the TYM 4815C?

They are effectively tied: both machines are rated at 2,425 lb lb for 3-pt lift (24 in).
