Which has more horsepower, the TYM 4815C or the TYM T494C?

The TYM T494C leads on engine hp at 48.3 hp hp, compared to 48 hp hp for the TYM 4815C.

Which has more PTO horsepower, the TYM 4815C or the TYM T494C?

The TYM 4815C leads on pto hp at 40 hp hp, compared to 37.2 hp hp for the TYM T494C.

Which has more loader lift capacity, the TYM 4815C or the TYM T494C?

The TYM T494C leads on loader lift at 2,790 lb lb, compared to 2,200 lb lb for the TYM 4815C.

Which has more three-point hitch lift capacity, the TYM 4815C or the TYM T494C?

The TYM T494C leads on 3-pt lift (24 in) at 3,050.6 lb lb, compared to 2,425 lb lb for the TYM 4815C.

TYM 4815C vs TYM T494C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the TYM T494C leads 6 categories to 2. Machine pages: TYM 4815C and TYM T494C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	TYM 4815C	TYM T494C
Engine HP (hp)	48 hp	▲ 48.3 hp
PTO HP (hp)	▲ 40 hp	37.2 hp
Weight (lb)	4,595 lb	—
Loader Lift (lb)	2,200 lb	▲ 2,790 lb
3-Pt Lift (24 in) (lb)	2,425 lb	▲ 3,050.6 lb
Lift Height (in)	104.9 in	▲ 109.4 in
Breakout Force (lbf)	3,422 lbf	▲ 5,316 lbf
Hydraulic Flow (gpm)	▲ 16.5 gpm	11.9 gpm
Travel Speed (mph)	18 mph	▲ 18.6 mph

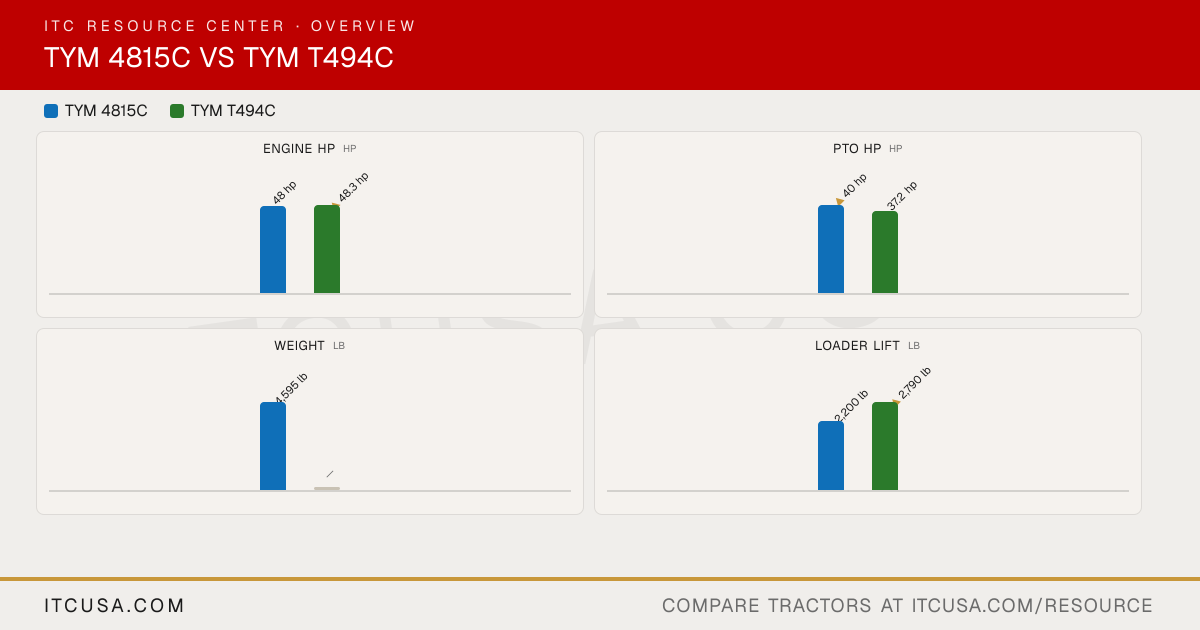

The headline numbers at a glance.

TYM 4815CTYM T494C

Engine HPhp

48 hp

▲48.3 hp

PTO HPhp

▲40 hp

37.2 hp

Weightlb

4,595 lb

—

Loader Liftlb

2,200 lb

▲2,790 lb

3-Pt Lift (24 in)lb

2,425 lb

▲3,050.6 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYM4815C	TYMT494C


PTO Power	40 hp	37.2 hp
Alternator	70 A, 12 V	70 A, 12 V
Air Cleaner	Dry element	Single dry
Engine Type	4-cylinder, naturally aspirated diesel	4-cylinder, naturally aspirated diesel
Fuel System	IDI	IDI
Displacement	139.6 in³	139.5 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	TYM	TYM
Engine Power (Gross)	48 hp	48.3 hp
Engine Emissions Constraints	Not Published	Tier 4

Weight with ROPS and Loader	Not Applicable	Not Applicable
Weight with Cab and Loader	4,595 lb	Not Published

Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Dual gear pump	Dual gear pump
Steering Flow	5.2 gpm	4.3 gpm
Implement Flow	11.4 gpm	7.7 gpm
Total Hydraulic Flow	16.5 gpm	11.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	16.5 gpm	11.9 gpm
No. of Optional Remote Valves	2	Not Published
No. of Standard Remote Valves	0	2

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control/Draft
Hitch Lift Capacity	3,306 lb	3,822 lb
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	3,050.6 lb

R3 Turf - Rear	Not Published	Multi-Trac CS 44x18.00-20 NHS TL 4PR
R3 Turf - Front	Not Published	Multi-Trac CS 27x10.50-15 NHS TL 4PR
Tire Size & Options	R1 Agricultural, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	15-19.5	Xtra Grip 4.6 gal-24 NHS TL 6PR
R4 Industrial - Front	28x8.5-14	Trac Chief 12-16.5 NHS TL 6PR
R1 Agricultural - Rear	11.2-24	Farm Specialist 13.6-26 NHS TL 6PR
R1 Agricultural - Front	7.0-16	Farm Specialist 9.5-16 NHS TL 6PR

Coolant Capacity	6.2 qt	6.9 qt
Crankcase Capacity	4.8 qt	6.8 qt
Fuel Tank Capacity	7.1 gal	17.0 gal
Front Axle Fluid Capacity	6.8 qt	10.5 qt
Transmission / Hydraulic System Capacity	9.8 gal	9.2 gal

Loader Lift Height	104.9 in	109.4 in
Loader Breakout Force	3,422 lb	5,316 lb
Quick Attach Loader System	BL150C: Quick attachment assembly	TX57: Quick attachment assembly
Loader Lift Capacity (Full Height)	2,200 lb	2,790 lb

Clutch	Not Applicable	Dry single plate
No. of Speeds	3-Range	F8 x R8
Transmission Type	HST	Synchro-shuttle
Max Travel Speed (Forward)	18 mph	18.6 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published

Brakes	Wet, Multi disc	Wet disc
Steering	Hydrostatic	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	4WD
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Comfortable suspension seat	Not Published

Wheelbase	65.7 in	76.2 in
Overall Width	55.6 in	63.8 in
Ground Clearance	13.1 in	13.8 in
Height to Top of ROPS	Not Applicable	Not Applicable
Height to Top of Cab Model	89.3 in	98 in
Height to Top of ROPS (folded)	Not Applicable	Not Applicable
Min. Turn Radius without Brakes	L: 124.8 in; R: 121.3 in	131.5 in
Overall Length with 3-Point Hitch	120.9 in	141.3 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	TYM T494 / T574 Extended Brush Screen Insert $299.99 A must have when working with brush. TYM T494 / T574 Hydraulic Valve Cover $299.99 TYM T494 / T574 Rubber Hose Protector $47.99 TYM T494 / T574 Fuel Tank Cover $214.99 TYM T494 / T574 Skid Plate only $714.99 TYM T494 / T574 HD Protection Package $1250.00

TYM 4815C vs TYM T494C: Quick Answers

Which has more horsepower, the TYM 4815C or the TYM T494C?: The TYM T494C leads on engine hp at 48.3 hp hp, compared to 48 hp hp for the TYM 4815C.
Which has more PTO horsepower, the TYM 4815C or the TYM T494C?: The TYM 4815C leads on pto hp at 40 hp hp, compared to 37.2 hp hp for the TYM T494C.
Which has more loader lift capacity, the TYM 4815C or the TYM T494C?: The TYM T494C leads on loader lift at 2,790 lb lb, compared to 2,200 lb lb for the TYM 4815C.
Which has more three-point hitch lift capacity, the TYM 4815C or the TYM T494C?: The TYM T494C leads on 3-pt lift (24 in) at 3,050.6 lb lb, compared to 2,425 lb lb for the TYM 4815C.
