Which has more horsepower, the TYM 4820C or the TYM T454?

The TYM 4820C leads on engine hp at 48 hp hp, compared to 46.6 hp hp for the TYM T454.

Which has more PTO horsepower, the TYM 4820C or the TYM T454?

The TYM 4820C leads on pto hp at 38.4 hp hp, compared to 37.3 hp hp for the TYM T454.

Which has more three-point hitch lift capacity, the TYM 4820C or the TYM T454?

The TYM T454 leads on 3-pt lift (24 in) at 2,945 lb lb, compared to 2,425 lb lb for the TYM 4820C.

TYM 4820C vs TYM T454

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 5 measurable specs, the TYM 4820C leads 4 categories to 1. Machine pages: TYM 4820C and TYM T454.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	TYM 4820C	TYM T454
Engine HP (hp)	▲ 48 hp	46.6 hp
PTO HP (hp)	▲ 38.4 hp	37.3 hp
Loader Lift (lb)	2,701 lb	—
3-Pt Lift (24 in) (lb)	2,425 lb	▲ 2,945 lb
Lift Height (in)	106.6 in	—
Breakout Force (lbf)	3,660 lbf	—
Hydraulic Flow (gpm)	▲ 16.5 gpm	14.1 gpm
Travel Speed (mph)	▲ 19.5 mph	18.4 mph

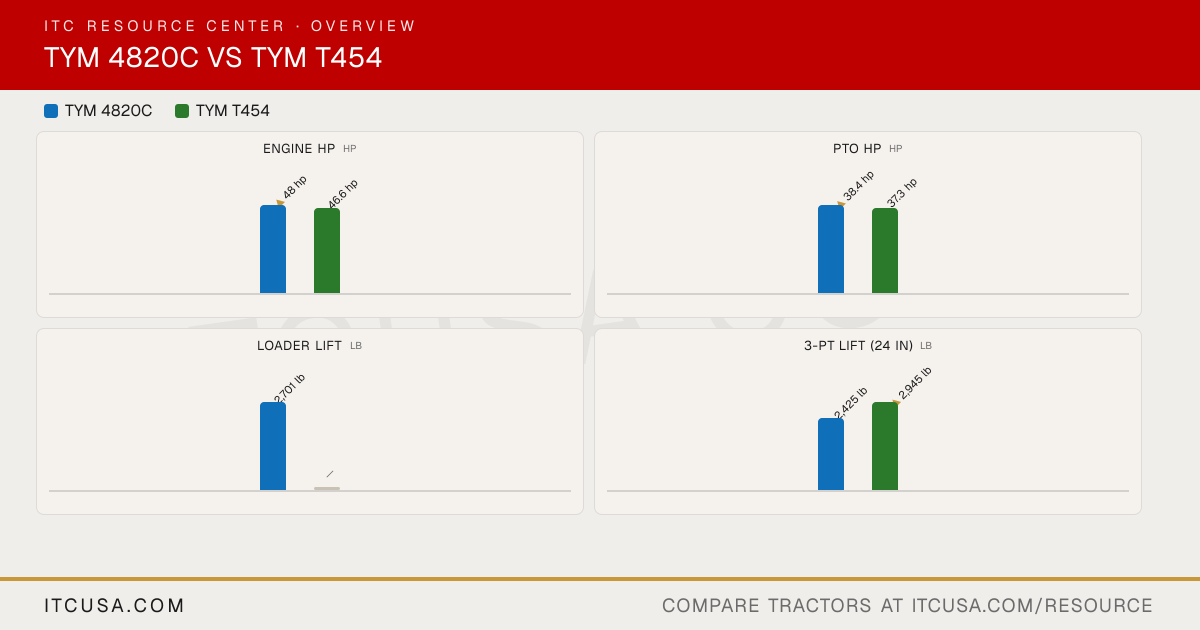

The headline numbers at a glance.

TYM 4820CTYM T454

Engine HPhp

▲48 hp

46.6 hp

PTO HPhp

▲38.4 hp

37.3 hp

Weightlb

—

Loader Liftlb

2,701 lb

—

3-Pt Lift (24 in)lb

2,425 lb

▲2,945 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYM4820C	TYMT454


PTO Power	38.4 hp	37.3 hp
Alternator	50 A, 12 V	70 A, 12 V
Air Cleaner	Dry element	Dual dry
Engine Type	4-cylinder, naturally aspirated diesel	4-cylinder, naturally aspirated diesel
Fuel System	IDI	CRDI
Displacement	139.5 in³	133.6 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2800 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	TYM	Yanmar
Engine Power (Gross)	48 hp	46.6 hp
Engine Emissions Constraints	Tier 4	Not Published

Weight with ROPS and Loader	Not Applicable	Not Published
Weight with Cab and Loader	Not Published	Not Applicable

Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Dual gear pump	Dual gear pump
Steering Flow	5.2 gpm	4.6 gpm
Implement Flow	11.4 gpm	9.5 gpm
Total Hydraulic Flow	16.5 gpm	14.1 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	16.5 gpm	14.1 gpm
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	4 Port	2

PTO Rear	540/750 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position/Draft
Hitch Lift Capacity	3,306 lb	3,314 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	2,945 lb

R3 Turf - Rear	41x14-20 / 44x18-20	Multi-Trac CS 44x18.00-20 NHS TL 4PR
R3 Turf - Front	27x8.5-15 / 29x12.5-15	Multi-Trac CS 27x10.50-15 NHS TL 4PR
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	17.5Lx24	Xtra Grip 17.5-24 NHS TL 6PR
R4 Industrial - Front	12-16.5	Trac Chief 12-16.5 NHS TL 6PR
R1 Agricultural - Rear	13.6-26	Farm Specialist 13.6-26 NHS TL 6PR
R1 Agricultural - Front	9.5-16	Farm Specialist 9.5-16 NHS TL 6PR

Coolant Capacity	8.3 qt	9 qt
Crankcase Capacity	4.8 qt	7.4 qt
Fuel Tank Capacity	11.8 gal	17.0 gal
Front Axle Fluid Capacity	6.8 qt	10.5 qt
Transmission / Hydraulic System Capacity	HST: 11.1 gal; Gear: 10.3 gal	9.2 gal

Loader Lift Height	106.6 in	Not Published
Loader Breakout Force	3,660 lb	Not Published
Quick Attach Loader System	BL200C: Quick attach mechanism	TX55: Quick attachment assembly
Loader Lift Capacity (Full Height)	2,701 lb	Not Published

Clutch	HST: Not Applicable; Gear: Dry single plate	Dry single plate
No. of Speeds	HST: 4-Range; Gear: F16 x R16 (4-Range)	F16 x R16
Transmission Type	HST: HST; Gear: Synchromesh	Synchro-shuttle
Max Travel Speed (Forward)	HST: 19.5 mph; Gear: 16 mph	18.4 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock system	Not Published

Brakes	Wet, multi disc	Wet disc
Steering	Hydrostatic	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Suspension seat	Not Published

Wheelbase	71.1 in	76.2 in
Overall Width	64.9 in	63.8 in
Ground Clearance	15.5 in	13.8 in
Height to Top of ROPS	Not Applicable	102.1 in
Height to Top of Cab Model	97.0 in	Not Applicable
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	L: 128.7 in; R: 126.0 in	150.4 in
Overall Length with 3-Point Hitch	127.4 in	141.3 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T454 T554 Rural King RK55 Brush Screen Insert $249.99

TYM 4820C vs TYM T454: Quick Answers

Which has more horsepower, the TYM 4820C or the TYM T454?: The TYM 4820C leads on engine hp at 48 hp hp, compared to 46.6 hp hp for the TYM T454.
Which has more PTO horsepower, the TYM 4820C or the TYM T454?: The TYM 4820C leads on pto hp at 38.4 hp hp, compared to 37.3 hp hp for the TYM T454.
Which has more three-point hitch lift capacity, the TYM 4820C or the TYM T454?: The TYM T454 leads on 3-pt lift (24 in) at 2,945 lb lb, compared to 2,425 lb lb for the TYM 4820C.
