Which has more horsepower, the TYM 4820C or the TYM T474C?

The TYM T474C leads on engine hp at 48.3 hp hp, compared to 48 hp hp for the TYM 4820C.

Which has more PTO horsepower, the TYM 4820C or the TYM T474C?

The TYM 4820C leads on pto hp at 38.4 hp hp, compared to 35.9 hp hp for the TYM T474C.

Which has more loader lift capacity, the TYM 4820C or the TYM T474C?

The TYM 4820C leads on loader lift at 2,701 lb lb, compared to 2,152 lb lb for the TYM T474C.

Which has more three-point hitch lift capacity, the TYM 4820C or the TYM T474C?

The TYM 4820C leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,764 lb lb for the TYM T474C.

TYM 4820C vs TYM T474C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the TYM 4820C leads 7 categories to 1. Machine pages: TYM 4820C and TYM T474C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	TYM 4820C	TYM T474C
Engine HP (hp)	48 hp	▲ 48.3 hp
PTO HP (hp)	▲ 38.4 hp	35.9 hp
Weight (lb)	—	4,628 lb
Loader Lift (lb)	▲ 2,701 lb	2,152 lb
3-Pt Lift (24 in) (lb)	▲ 2,425 lb	1,764 lb
Lift Height (in)	▲ 106.6 in	105.6 in
Breakout Force (lbf)	▲ 3,660 lbf	3,198 lbf
Hydraulic Flow (gpm)	▲ 16.5 gpm	11.9 gpm
Travel Speed (mph)	▲ 19.5 mph	14.9 mph

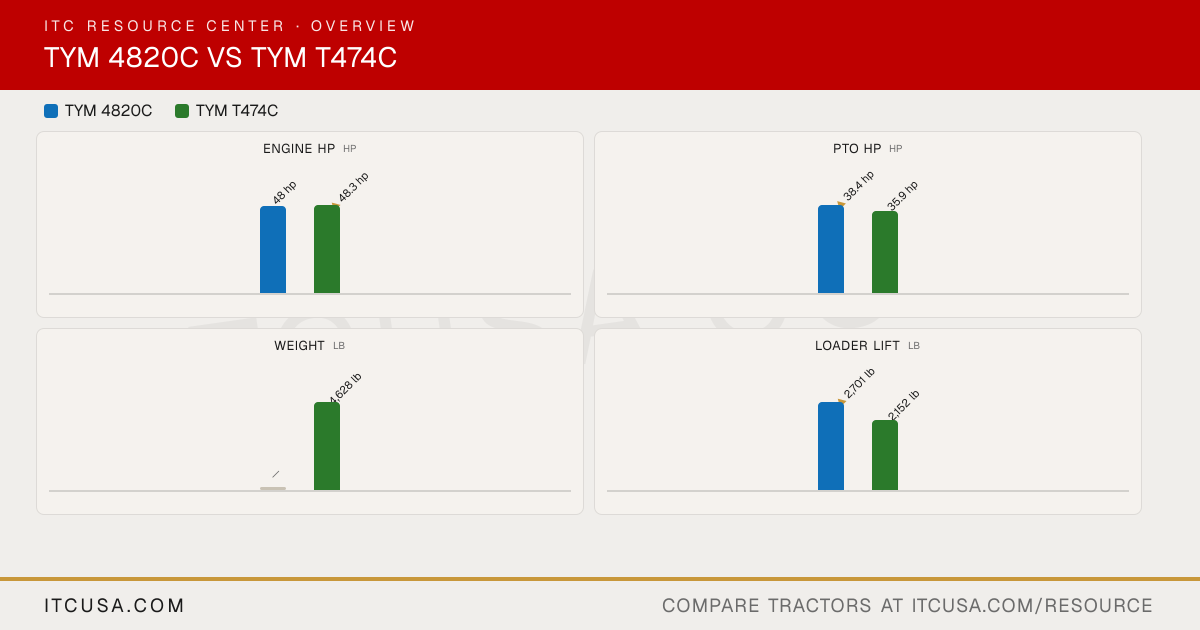

The headline numbers at a glance.

TYM 4820CTYM T474C

Engine HPhp

48 hp

▲48.3 hp

PTO HPhp

▲38.4 hp

35.9 hp

Weightlb

—

4,628 lb

Loader Liftlb

▲2,701 lb

2,152 lb

3-Pt Lift (24 in)lb

▲2,425 lb

1,764 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYM4820C	TYMT474C


PTO Power	38.4 hp	35.9 hp
Alternator	50 A, 12 V	70 A, 12 V
Air Cleaner	Dry element	Single dry
Engine Type	4-cylinder, naturally aspirated diesel	4-cylinder, naturally aspirated diesel
Fuel System	IDI	IDI
Displacement	139.5 in³	139.5 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	TYM	TYM
Engine Power (Gross)	48 hp	48.3 hp
Engine Emissions Constraints	Tier 4	Stage V

Weight with ROPS and Loader	Not Applicable	Not Applicable
Weight with Cab and Loader	Not Published	4,628 lb

Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Dual gear pump	Dual gear pump
Steering Flow	5.2 gpm	4.2 gpm
Implement Flow	11.4 gpm	7.7 gpm
Total Hydraulic Flow	16.5 gpm	11.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	16.5 gpm	11.9 gpm
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	4 Port	1

PTO Rear	540/750 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	3,306 lb	2,689.6 lb
Mid-PTO Availability	Not Published	Available (Mid-PTO kit)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	1,764 lb

R3 Turf - Rear	41x14-20 / 44x18-20	12.5x20
R3 Turf - Front	27x8.5-15 / 29x12.5-15	Multi-Trac CS 27x10.5-15 NHS TL 4PR
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	17.5Lx24	Xtra Grip 43x16.00-20 NHS TL 6PR
R4 Industrial - Front	12-16.5	Trac Chief 10-16.50 NHS TL 6PR
R1 Agricultural - Rear	13.6-26	Farm Specialist 12.4-24 NHS TL 6PR
R1 Agricultural - Front	9.5-16	Farm Specialist 8.0-16 NHS TL 6PR

Coolant Capacity	8.3 qt	6.9 qt
Crankcase Capacity	4.8 qt	6.8 qt
Fuel Tank Capacity	11.8 gal	9.0 gal
Front Axle Fluid Capacity	6.8 qt	8.7 qt
Transmission / Hydraulic System Capacity	HST: 11.1 gal; Gear: 10.3 gal	8.5 gal

Loader Lift Height	106.6 in	105.6 in
Loader Breakout Force	3,660 lb	3,198 lb
Quick Attach Loader System	BL200C: Quick attach mechanism	TX47: Quick attachment (Skid/Euro type)
Loader Lift Capacity (Full Height)	2,701 lb	2,152 lb

Clutch	HST: Not Applicable; Gear: Dry single plate	Dry single plate
No. of Speeds	HST: 4-Range; Gear: F16 x R16 (4-Range)	F12 x R12
Transmission Type	HST: HST; Gear: Synchromesh	Mechanical
Max Travel Speed (Forward)	HST: 19.5 mph; Gear: 16 mph	14.9 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock system	Not Published

Brakes	Wet, multi disc	Wet disc
Steering	Hydrostatic	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Suspension seat	Not Published

Wheelbase	71.1 in	69.7 in
Overall Width	64.9 in	54.5 in
Ground Clearance	15.5 in	12.8 in
Height to Top of ROPS	Not Applicable	Not Applicable
Height to Top of Cab Model	97.0 in	92.5 in
Height to Top of ROPS (folded)	Not Applicable	Not Applicable
Min. Turn Radius without Brakes	L: 128.7 in; R: 126.0 in	117.5 in
Overall Length with 3-Point Hitch	127.4 in	131 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T474 Hydraulic Valve Cover $184.99 Engineered to protect the exposed hydraulic valve. TYM T474 Brush Guard Insert $249.99 A must have if you are working with brush.

TYM 4820C vs TYM T474C: Quick Answers

Which has more horsepower, the TYM 4820C or the TYM T474C?: The TYM T474C leads on engine hp at 48.3 hp hp, compared to 48 hp hp for the TYM 4820C.
Which has more PTO horsepower, the TYM 4820C or the TYM T474C?: The TYM 4820C leads on pto hp at 38.4 hp hp, compared to 35.9 hp hp for the TYM T474C.
Which has more loader lift capacity, the TYM 4820C or the TYM T474C?: The TYM 4820C leads on loader lift at 2,701 lb lb, compared to 2,152 lb lb for the TYM T474C.
Which has more three-point hitch lift capacity, the TYM 4820C or the TYM T474C?: The TYM 4820C leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,764 lb lb for the TYM T474C.
