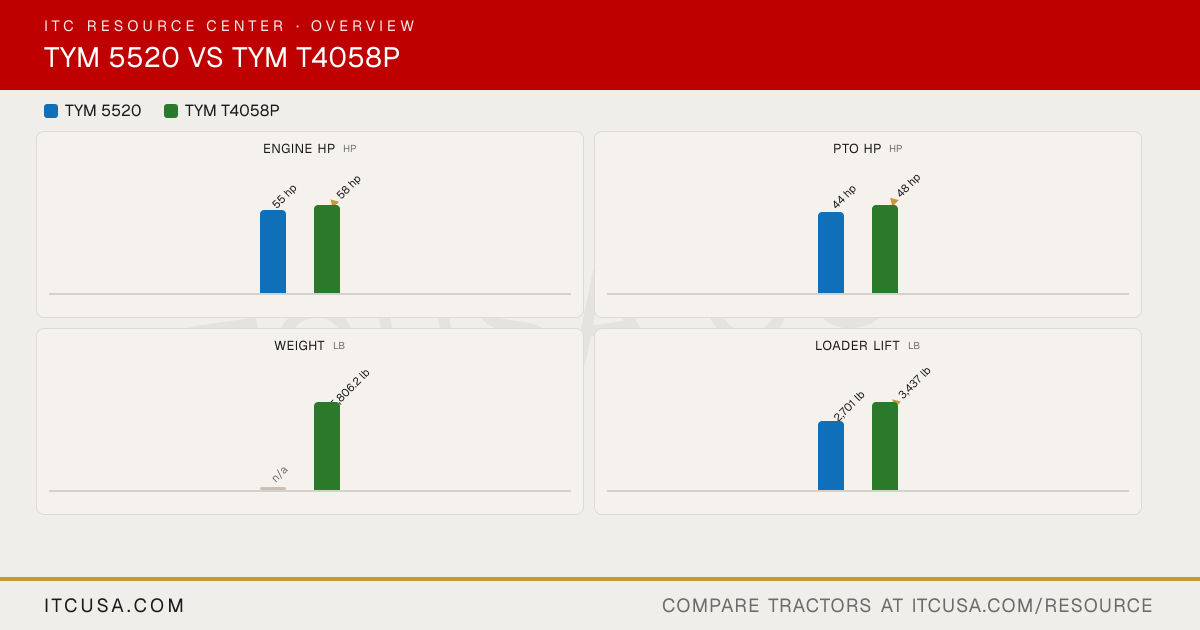

Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM5520
TYMT4058P
Engine Manufacturer
TYM
TYM
Engine Model
T2300T3
T2300T1-UTR_4
Engine Type
4-cylinder, turbocharged diesel
4-cylinder, turbocharged diesel
No. of Cylinders
4
4
Displacement
139.5 in³
139.5 in³
Rated Engine Speed
2600 rpm
2600 rpm
Engine Power (Gross)
55 hp
58 hp
PTO Power
44 hp
48 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid-cooled
Not Published
Air Cleaner
Dry element
Dry element
Fuel System
IDI (indirect injection)
IDI (indirect injection)
Alternator
50 A, 12 V
70 A, 12 V
Pump Type
Dual gear pump
Single gear pump
Implement Flow
11.4 gpm
11.4 gpm
Steering Flow
5.2 gpm
5.13 gpm
Total Hydraulic Flow
16.5 gpm
16.5 gpm
Overall Hydraulic Pump Flow
16.5 gpm
16.5 gpm
Hydraulic System Type
Not Published
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
None standard (optional, up to 4)
Loader: 4; Rear: 4
No. of Optional Remote Valves
Up to 4
Not Published
Fuel Tank Capacity
11.8 gal
15.32 gal
Coolant Capacity
6.2 qt
6.2 qt
Crankcase Capacity
4.8 qt
4.7 qt
Transmission / Hydraulic System Capacity
5520R: 10.3 gal; 5520H: 11.1 gal
11.6 gal
Front Axle Fluid Capacity
6.8 qt
6.8 qt
PTO Type
Independent
Independent
PTO Rear
540/750 rpm
540 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category I
Category II
Hitch Lift Capacity
3,306 lb
4,409 lb
Hitch Lift Capacity (at 24”)
2,425 lb
3,748 lb
Lift Control Type
Position control
Position and draft control (electronic)
Transmission Type
5520R: Synchromesh; 5520H: HST
Power shuttle
No. of Speeds
5520R: F16 x R16; 5520H: 4-Range
F12 x R12
Max Travel Speed (Forward)
5520R: 16 mph; 5520H: 19.5 mph
24.04 mph
Max Travel Speed (Reverse)
5520R: 15.2 mph; 5520H: 19.5 mph
19.39 mph
Clutch
5520R: Dry single type; 5520H: N/A (HST)
Wet, multi-disc
Differential Lock & Limited Slip Options
Standard differential lock
Standard differential lock
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic
Brakes
Wet, multi-disc
Wet, multi-disc
Seat Suspension & Adjustability
Suspension seat
Suspension seat
Front Axle Type
4WD (selectable 2WD/4WD)
4WD (selectable 2WD/4WD)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
127.4 in
141.5 in
Overall Width
64.9 in
68.9 in
Wheelbase
71.1 in
78.7 in
Ground Clearance
15.5 in
18.1 in
Min. Turn Radius without Brakes
L: 128.7 in; R: 126.0 in
L: 139.7 in; R: 141.9 in
Height to Top of ROPS
98.4 in
104.7 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
3,836 lb
4,506.2 lb
Weight with ROPS and Loader
Not Published
5,806.2 lb
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural, R3 Turf (golf), R4 Industrial
R1 Agricultural - Front
9.5-16
9.5-20
R1 Agricultural - Rear
13.6-26
14.9-28
R3 Turf - Front
27x8.5-15 / 29x12.5-15
29x12.5-15
R3 Turf - Rear
41x14-20 / 44x18-20
44x18.00-20
R4 Industrial - Front
12-16.5
10.5/80-18
R4 Industrial - Rear
17.5Lx24
16.9-24
Quick Attach Loader System
BL200: Quick attach mechanism
L4058P: Quick attach mechanism
Loader Model
BL200
L4058P
Loader Lift Height
BL200: 106.6 in
L4058P: 117.5 in
Loader Lift Capacity (Full Height)
BL200: 2,701 lb
L4058P: 3,437 lb
Loader Breakout Force
BL200: 3,660 lb
L4058P: 4,742 lb
Warranty Length & Coverage
Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3,000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes
Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3,000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes
