Which has more horsepower, the TYM 5520 or the TYM T554?

The TYM T554 leads on engine hp at 55.9 hp hp, compared to 55 hp hp for the TYM 5520.

Which has more PTO horsepower, the TYM 5520 or the TYM T554?

The TYM T554 leads on pto hp at 45.6 hp hp, compared to 44 hp hp for the TYM 5520.

Which has more loader lift capacity, the TYM 5520 or the TYM T554?

The TYM 5520 leads on loader lift at 2,701 lb lb, compared to 2,478 lb lb for the TYM T554.

Which has more three-point hitch lift capacity, the TYM 5520 or the TYM T554?

The TYM T554 leads on 3-pt lift (24 in) at 2,945 lb lb, compared to 2,425 lb lb for the TYM 5520.

TYM 5520 vs TYM T554

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the TYM T554 leads 5 categories to 3. Machine pages: TYM 5520 and TYM T554.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	TYM 5520	TYM T554
Engine HP (hp)	55 hp	▲ 55.9 hp
PTO HP (hp)	44 hp	▲ 45.6 hp
Weight (lb)	—	5,075 lb
Loader Lift (lb)	▲ 2,701 lb	2,478 lb
3-Pt Lift (24 in) (lb)	2,425 lb	▲ 2,945 lb
Lift Height (in)	106.6 in	▲ 109.1 in
Breakout Force (lbf)	3,660 lbf	▲ 4,938 lbf
Hydraulic Flow (gpm)	▲ 16.5 gpm	14.1 gpm
Travel Speed (mph)	▲ 19.5 mph	18.4 mph

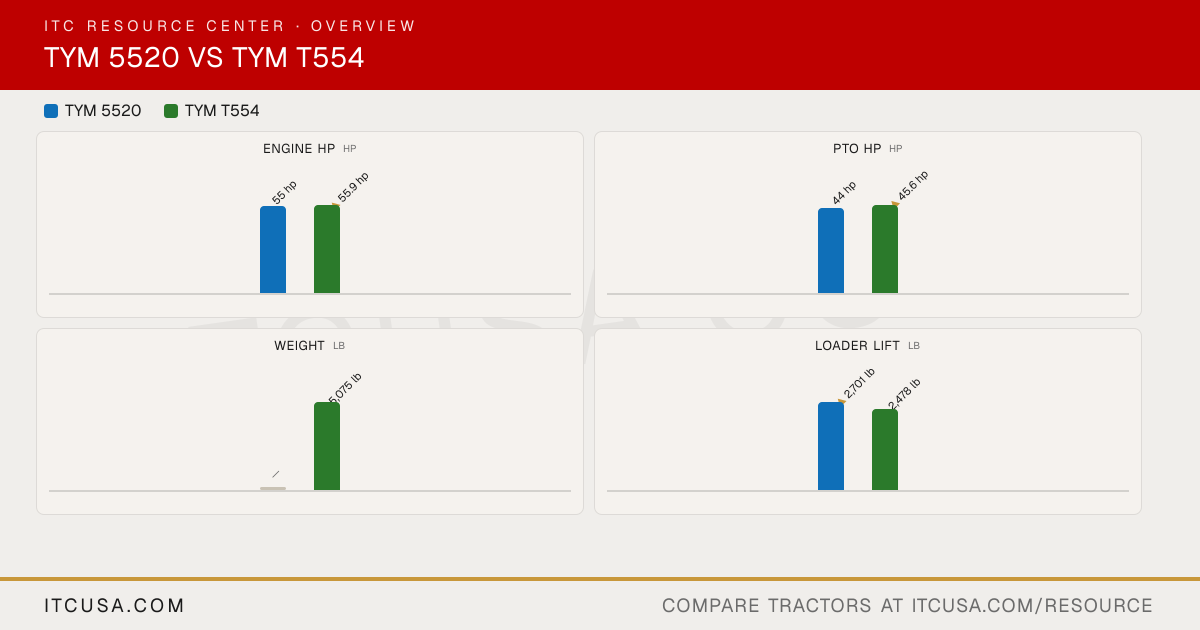

The headline numbers at a glance.

TYM 5520TYM T554

Engine HPhp

55 hp

▲55.9 hp

PTO HPhp

44 hp

▲45.6 hp

Weightlb

—

5,075 lb

Loader Liftlb

▲2,701 lb

2,478 lb

3-Pt Lift (24 in)lb

2,425 lb

▲2,945 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYM5520	TYMT554


PTO Power	44 hp	45.6 hp
Alternator	50 A, 12 V	70 A, 12 V
Air Cleaner	Dry element	Dual dry
Engine Type	4-cylinder, turbocharged diesel	4-cylinder, turbocharged diesel
Fuel System	IDI	CRDI
Displacement	139.5 in³	127.6 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2800 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	TYM	Yanmar
Engine Power (Gross)	55 hp	55.9 hp
Engine Emissions Constraints	Tier 4	Not Published

Weight with Cab and Loader	Not Applicable	Not Applicable
Weight with ROPS and Loader	Not Published	5,075 lb

Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Dual gear pump	Dual gear pump
Steering Flow	5.2 gpm	4.6 gpm
Implement Flow	11.4 gpm	9.5 gpm
Total Hydraulic Flow	16.5 gpm	14.1 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	16.5 gpm	14.1 gpm
No. of Optional Remote Valves	Up to 4	Not Published
No. of Standard Remote Valves	0	2

PTO Rear	540/750 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position/Draft
Hitch Lift Capacity	3,306 lb	3,314 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	2,945 lb

R3 Turf - Rear	41x14-20 / 44x18-20	Multi-Trac CS 44x18.00-20 NHS TL 4PR
R3 Turf - Front	27x8.5-15 / 29x12.5-15	Multi-Trac CS 27x10.50-15 NHS TL 4PR
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	17.5Lx24	Xtra Grip 4.6 gal-24 NHS TL 6PR
R4 Industrial - Front	12-16.5	Trac Chief 12-16.5 NHS TL 6PR
R1 Agricultural - Rear	13.6-26	Farm Specialist 13.6-26 NHS TL 6PR
R1 Agricultural - Front	9.5-16	Farm Specialist 9.5-16 NHS TL 6PR

Coolant Capacity	6.2 qt	9 qt
Crankcase Capacity	4.8 qt	7.1 qt
Fuel Tank Capacity	11.8 gal	17.0 gal
Front Axle Fluid Capacity	6.8 qt	10.5 qt
Transmission / Hydraulic System Capacity	HST: 11.1 gal; Gear: 10.3 gal	9.2 gal

Loader Lift Height	106.6 in	109.1 in
Loader Breakout Force	3,660 lb	4,938 lb
Quick Attach Loader System	BL200: Quick attach assembly (lever-lock)	TX55: Quick attach mechanism
Loader Lift Capacity (Full Height)	2,701 lb	2,478 lb

Clutch	Dry single type (N/A)	Dry single plate
No. of Speeds	HST: 4-Range; Gear: F16 x R16 (4-Range)	F16 x R16
Transmission Type	HST: Hydrostatic (HST); Gear: Synchromesh	Synchro-Shuttle
Max Travel Speed (Forward)	HST: 19.5 mph; Gear: 16 mph	18.4 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock system	Not Published

Brakes	Wet, multi disc	Wet disc
Steering	Hydrostatic	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Suspension seat	Not Published

Wheelbase	71.1 in	76.2 in
Overall Width	64.9 in	63.8 in
Ground Clearance	15.5 in	13.8 in
Height to Top of ROPS	98.4 in	102.1 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	L: 128.7 in; R: 126.0 in	150.4 in
Overall Length with 3-Point Hitch	127.4 in	141.3 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 TYM 20 Series Protection Package $2150.00	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T454 T554 Rural King RK55 Brush Screen Insert $249.99

TYM 5520 vs TYM T554: Quick Answers

Which has more horsepower, the TYM 5520 or the TYM T554?: The TYM T554 leads on engine hp at 55.9 hp hp, compared to 55 hp hp for the TYM 5520.
Which has more PTO horsepower, the TYM 5520 or the TYM T554?: The TYM T554 leads on pto hp at 45.6 hp hp, compared to 44 hp hp for the TYM 5520.
Which has more loader lift capacity, the TYM 5520 or the TYM T554?: The TYM 5520 leads on loader lift at 2,701 lb lb, compared to 2,478 lb lb for the TYM T554.
Which has more three-point hitch lift capacity, the TYM 5520 or the TYM T554?: The TYM T554 leads on 3-pt lift (24 in) at 2,945 lb lb, compared to 2,425 lb lb for the TYM 5520.
