Which has more horsepower, the TYM 5520C or the TYM T574C?

They are effectively tied: both machines are rated at 55 hp hp for engine hp.

Which has more PTO horsepower, the TYM 5520C or the TYM T574C?

The TYM T574C leads on pto hp at 44.7 hp hp, compared to 44 hp hp for the TYM 5520C.

Which has more loader lift capacity, the TYM 5520C or the TYM T574C?

The TYM T574C leads on loader lift at 2,790 lb lb, compared to 2,701 lb lb for the TYM 5520C.

Which has more three-point hitch lift capacity, the TYM 5520C or the TYM T574C?

The TYM T574C leads on 3-pt lift (24 in) at 3,050.6 lb lb, compared to 2,425 lb lb for the TYM 5520C.

TYM 5520C vs TYM T574C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the TYM T574C leads 5 categories to 2 (1 tied). Machine pages: TYM 5520C and TYM T574C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	TYM 5520C	TYM T574C
Engine HP (hp)	55 hp	55 hp
PTO HP (hp)	44 hp	▲ 44.7 hp
Weight (lb)	—	5,353 lb
Loader Lift (lb)	2,701 lb	▲ 2,790 lb
3-Pt Lift (24 in) (lb)	2,425 lb	▲ 3,050.6 lb
Lift Height (in)	106.6 in	▲ 109.4 in
Breakout Force (lbf)	3,660 lbf	▲ 5,316 lbf
Hydraulic Flow (gpm)	▲ 16.5 gpm	11.9 gpm
Travel Speed (mph)	▲ 19.5 mph	18.6 mph

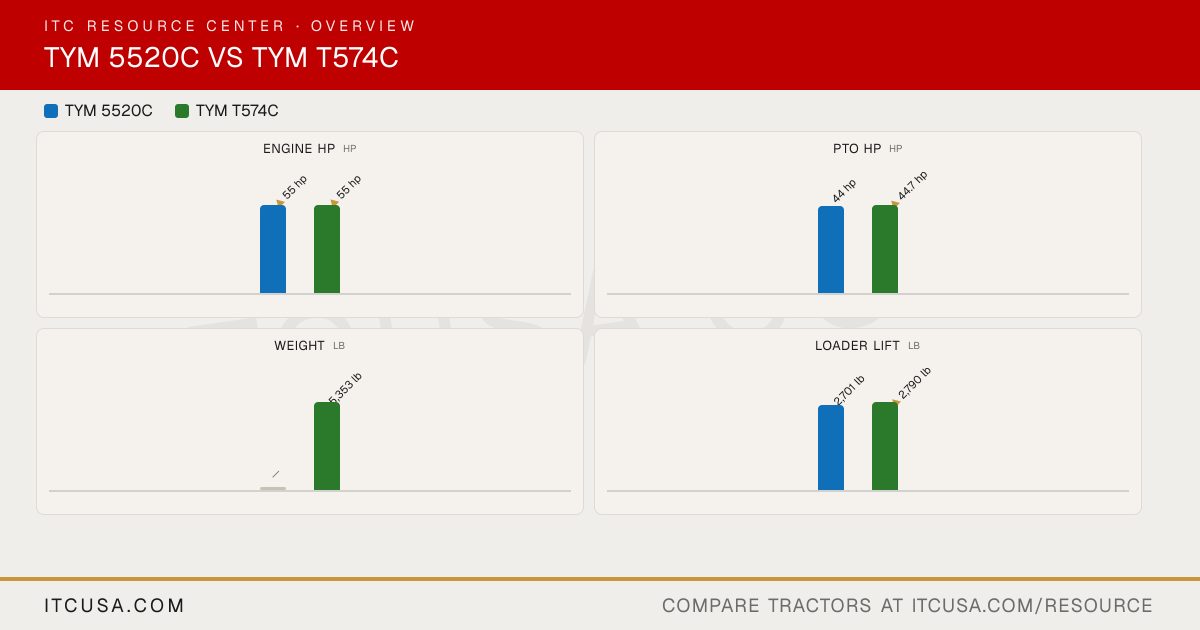

The headline numbers at a glance.

TYM 5520CTYM T574C

Engine HPhp

▲55 hp

PTO HPhp

44 hp

▲44.7 hp

Weightlb

—

5,353 lb

Loader Liftlb

2,701 lb

▲2,790 lb

3-Pt Lift (24 in)lb

2,425 lb

▲3,050.6 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYM5520C	TYMT574C


PTO Power	44 hp	44.7 hp
Alternator	70 A, 12 V	70 A, 12 V
Air Cleaner	Dry element	Single dry
Engine Type	4-cylinder, turbocharged diesel	4-cylinder, turbocharged diesel
Fuel System	IDI	IDI
Displacement	139.5 in³	139.5 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	TYM	TYM
Engine Power (Gross)	55 hp	55 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Applicable	Not Applicable
Weight with Cab and Loader	Not Published	5,353 lb

Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Dual gear pump	Dual gear pump
Steering Flow	5.2 gpm	4.3 gpm
Implement Flow	11.4 gpm	7.7 gpm
Total Hydraulic Flow	16.5 gpm	11.9 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	16.5 gpm	11.9 gpm
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	4	2

PTO Rear	540/750 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position/Draft
Hitch Lift Capacity	3,306 lb	3,822 lb
Mid-PTO Availability	Not Published	Available (Mid-PTO kit)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	3,050.6 lb

R3 Turf - Rear	41x14-20 / 44x18-20	Multi-Trac CS 44x18.00-20 NHS TL 4PR
R3 Turf - Front	27x8.5-15 / 29x12.5-15	Multi-Trac CS 27x10.50-15 NHS TL 4PR
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	17.5Lx24	Xtra Grip 17.5Lx24 NHS TL 6PR
R4 Industrial - Front	12-16.5	Trac Chief 12-16.5 NHS TL 6PR
R1 Agricultural - Rear	13.6-26	Farm Specialist 13.6-26 NHS TL 6PR
R1 Agricultural - Front	9.5-16	Farm Specialist 9.5-16 NHS TL 6PR

Coolant Capacity	8.3 qt	6.9 qt
Crankcase Capacity	4.8 qt	6.8 qt
Fuel Tank Capacity	11.8 gal	17.0 gal
Front Axle Fluid Capacity	6.8 qt	10.5 qt
Transmission / Hydraulic System Capacity	HST: 11.1 gal; Gear: 10.3 gal	9.2 gal

Loader Lift Height	106.6 in	109.4 in
Loader Breakout Force	3,660 lb	5,316 lb
Quick Attach Loader System	BL200C: Quick attach mechanism	TX57: Quick attachment (Skid/Euro type)
Loader Lift Capacity (Full Height)	2,701 lb	2,790 lb

Clutch	Dry single type (N/A)	Dry single plate
No. of Speeds	HST: 4-Range; Gear: F16 x R16 (4-Range)	F8 x R8
Transmission Type	HST: Hydrostatic (HST); Gear: Synchromesh	Synchro-shuttle
Max Travel Speed (Forward)	HST: 19.5 mph; Gear: 16 mph	18.6 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock system	Not Published

Brakes	Wet, multi disc	Wet disc
Steering	Hydrostatic	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Suspension seat	Not Published

Wheelbase	71.1 in	76.2 in
Overall Width	64.9 in	63.8 in
Ground Clearance	15.5 in	13.8 in
Height to Top of ROPS	Not Applicable	Not Applicable
Height to Top of Cab Model	97 in	98 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	L: 128.7 in; R: 126.0 in	131.5 in
Overall Length with 3-Point Hitch	127.4 in	141.3 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	TYM T494 / T574 Extended Brush Screen Insert $299.99 A must have when working with brush. TYM T494 / T574 Hydraulic Valve Cover $299.99 TYM T494 / T574 Rubber Hose Protector $47.99 TYM T494 / T574 HD Protection Package $1250.00 TYM T494 / T574 Fuel Tank Cover $214.99 TYM T494 / T574 Skid Plate only $714.99

TYM 5520C vs TYM T574C: Quick Answers

Which has more horsepower, the TYM 5520C or the TYM T574C?: They are effectively tied: both machines are rated at 55 hp hp for engine hp.
Which has more PTO horsepower, the TYM 5520C or the TYM T574C?: The TYM T574C leads on pto hp at 44.7 hp hp, compared to 44 hp hp for the TYM 5520C.
Which has more loader lift capacity, the TYM 5520C or the TYM T574C?: The TYM T574C leads on loader lift at 2,790 lb lb, compared to 2,701 lb lb for the TYM 5520C.
Which has more three-point hitch lift capacity, the TYM 5520C or the TYM T574C?: The TYM T574C leads on 3-pt lift (24 in) at 3,050.6 lb lb, compared to 2,425 lb lb for the TYM 5520C.
