Which has more horsepower, the TYM 5835 or the TYM T554C?

The TYM 5835 leads on engine hp at 58 hp hp, compared to 55.9 hp hp for the TYM T554C.

Which has more PTO horsepower, the TYM 5835 or the TYM T554C?

The TYM 5835 leads on pto hp at 48 hp hp, compared to 45.6 hp hp for the TYM T554C.

Which has more loader lift capacity, the TYM 5835 or the TYM T554C?

The TYM 5835 leads on loader lift at 3,437 lb lb, compared to 2,478 lb lb for the TYM T554C.

Which has more three-point hitch lift capacity, the TYM 5835 or the TYM T554C?

The TYM 5835 leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 2,945 lb lb for the TYM T554C.

TYM 5835 vs TYM T554C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the TYM 5835 leads 7 categories to 1. Machine pages: TYM 5835 and TYM T554C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	TYM 5835	TYM T554C
Engine HP (hp)	▲ 58 hp	55.9 hp
PTO HP (hp)	▲ 48 hp	45.6 hp
Weight (lb)	—	5,494 lb
Loader Lift (lb)	▲ 3,437 lb	2,478 lb
3-Pt Lift (24 in) (lb)	▲ 3,748 lb	2,945 lb
Lift Height (in)	▲ 117.5 in	109.1 in
Breakout Force (lbf)	4,742 lbf	▲ 4,938 lbf
Hydraulic Flow (gpm)	▲ 16.5 gpm	14.1 gpm
Travel Speed (mph)	▲ 19.9 mph	18.4 mph

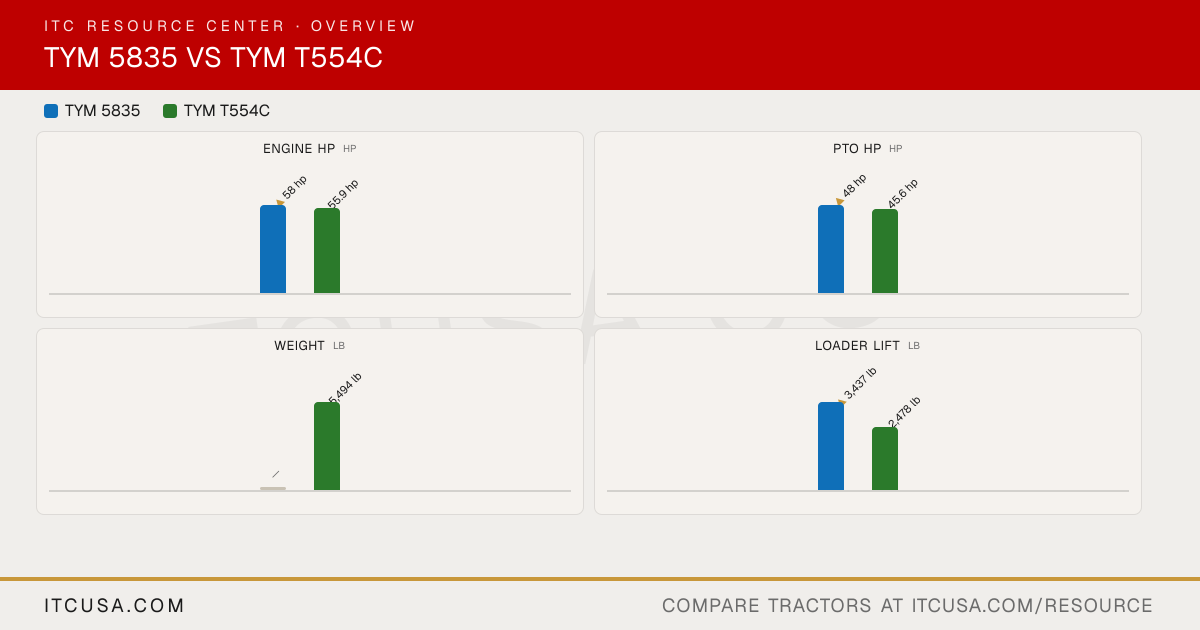

The headline numbers at a glance.

TYM 5835TYM T554C

Engine HPhp

▲58 hp

55.9 hp

PTO HPhp

▲48 hp

45.6 hp

Weightlb

—

5,494 lb

Loader Liftlb

▲3,437 lb

2,478 lb

3-Pt Lift (24 in)lb

▲3,748 lb

2,945 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYM5835	TYMT554C


PTO Power	48 hp	45.6 hp
Alternator	70 A, 12 V	70 A, 12 V
Air Cleaner	Dry element	Dual dry
Engine Type	4-cylinder, turbocharged diesel	4-cylinder, turbocharged diesel
Fuel System	IDI	CRDI
Displacement	139.5 in³	127.6 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2800 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	TYM	Yanmar
Engine Power (Gross)	58 hp	55.9 hp
Engine Emissions Constraints	Tier 4	Not Published

Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Applicable	5,494 lb

Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Single gear pump	Dual gear pump
Steering Flow	5.2 gpm	4.6 gpm
Implement Flow	11.4 gpm	9.5 gpm
Total Hydraulic Flow	16.5 gpm	14.1 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	16.5 gpm	14.1 gpm
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	Loader: 4; Rear: 2	2

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Mechanical	Position/Draft
Hitch Lift Capacity	4,409 lb	3,314 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category II	Category I
Hitch Lift Capacity (at 24”)	3,748 lb	2,945 lb

R3 Turf - Rear	Not Published	Multi-Trac CS 44x18.00-20 NHS TL 4PR
R3 Turf - Front	Not Published	Multi-Trac CS 27x10.50-15 NHS TL 4PR
Tire Size & Options	R1 Agricultural, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	16.9-24	Xtra Grip 4.6 gal-24 NHS TL 6PR
R4 Industrial - Front	10.5/80-18	Trac Chief 12-16.5 NHS TL 6PR
R1 Agricultural - Rear	14.9-28	Farm Specialist 13.6-26 NHS TL 6PR
R1 Agricultural - Front	9.5-20	Farm Specialist 9.5-16 NHS TL 6PR

Coolant Capacity	6.2 qt	9 qt
Crankcase Capacity	4.8 qt	7.1 qt
Fuel Tank Capacity	15.3 gal	17.0 gal
Front Axle Fluid Capacity	6.8 qt	10.5 qt
Transmission / Hydraulic System Capacity	11.6 gal	9.2 gal

Loader Lift Height	117.5 in	109.1 in
Loader Breakout Force	4,742 lb	4,938 lb
Quick Attach Loader System	BL350: Quick attachment assembly	TX55: Quick attach mechanism
Loader Lift Capacity (Full Height)	3,437 lb	2,478 lb

Clutch	Wet, multi-disc	Dry single plate
No. of Speeds	F12 x R12	F16 x R16
Transmission Type	Power shuttle	Synchro-Shuttle
Max Travel Speed (Forward)	19.9 mph	18.4 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published

Brakes	Wet, multi-disc	Wet disc
Steering	Hydrostatic	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Suspension seat	Not Published

Wheelbase	78.7 in	76.2 in
Overall Width	68.9 in	63.8 in
Ground Clearance	18.1 in	13.8 in
Height to Top of ROPS	102.8 in	Not Applicable
Height to Top of Cab Model	Not Applicable	99.6 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	L: 124.4 in; R: 124.0 in	150.4 in
Overall Length with 3-Point Hitch	136.4 in	141.3 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T454 T554 Rural King RK55 Brush Screen Insert $249.99
