TYM 7845 vs TYM T1104
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 9 measurable specs, the TYM T1104 leads 8 categories to 1. Machine pages: TYM 7845 and TYM T1104.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

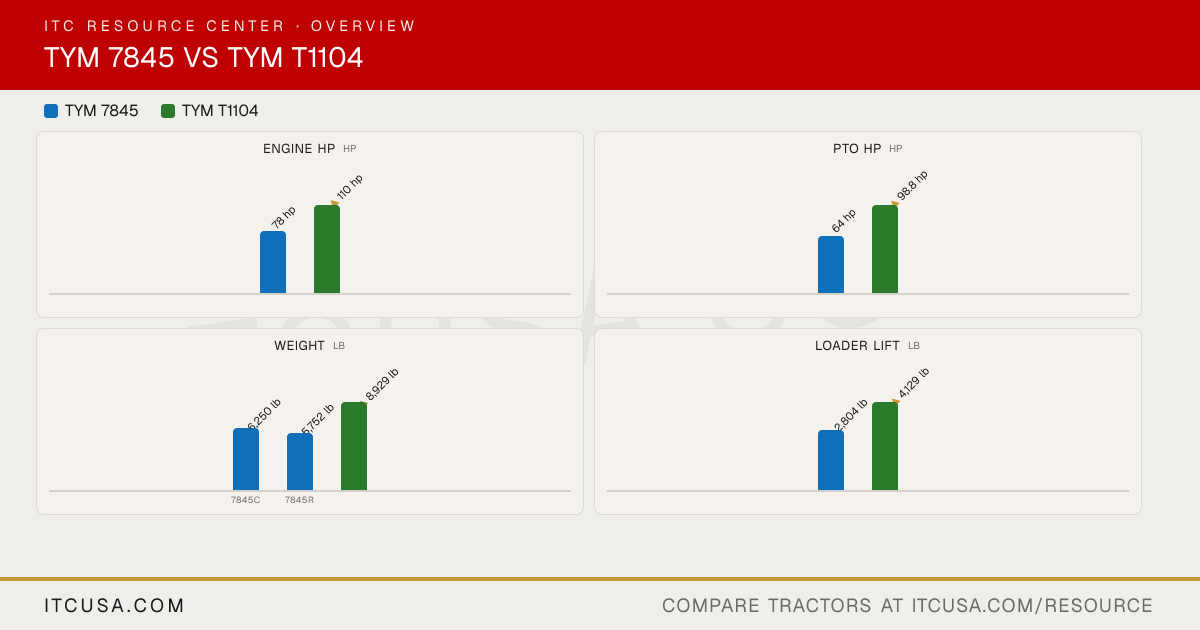

Category Verdict
| Spec | TYM 7845 | TYM T1104 |
|---|---|---|
| Engine HP (hp) | 78 hp | ▲ 110 hp |
| PTO HP (hp) | 64 hp | ▲ 98.8 hp |
| Weight (lb) | 6,250 lb | ▲ 8,929 lb |
| Loader Lift (lb) | 2,804 lb | ▲ 4,129 lb |
| 3-Pt Lift (24 in) (lb) | 2,526 lb | ▲ 5,490 lb |
| Lift Height (in) | 111.7 in | ▲ 144.4 in |
| Breakout Force (lbf) | 5,467 lbf | ▲ 6,025 lbf |
| Hydraulic Flow (gpm) | 19.3 gpm | ▲ 21.3 gpm |
| Travel Speed (mph) | ▲ 24.8 mph | 24.6 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | TYM7845 | TYMT1104 |
|---|
| Engine Manufacturer | Kukje | Doosan Infracore |
|---|---|---|
| Engine Model | 7845C: D3400T10-UTC-3; 7845R: D3400T1-UTR-3 | D34P |
| Engine Type | Turbocharged, direct injection, liquid-cooled diesel | 4-cylinder, turbocharged diesel |
| No. of Cylinders | 4 | 4 |
| Displacement | 208 in³ | 208 in³ |
| Rated Engine Speed | 2500 rpm | 2300 rpm |
| Engine Power (Gross) | 78 hp | 110 hp |
| PTO Power | 64 hp | 98.8 hp |
| Engine Emissions Constraints | Not Published | Tier 4 |
| Cooling System Type | Liquid-cooled | Liquid-cooled |
| Air Cleaner | Dry, double filter element | Dual dry |
| Fuel System | Direct injection | CRDI |
| Alternator | 70 A, 12 V | 110 A, 12 V |
TYM 7845 vs TYM T1104: Quick Answers
- Which has more horsepower, the TYM 7845 or the TYM T1104?
- The TYM T1104 leads on engine hp at 110 hp hp, compared to 78 hp hp for the TYM 7845.
- Which has more PTO horsepower, the TYM 7845 or the TYM T1104?
- The TYM T1104 leads on pto hp at 98.8 hp hp, compared to 64 hp hp for the TYM 7845.
- Which is heavier, the TYM 7845 or the TYM T1104?
- The TYM T1104 leads on weight at 8,929 lb lb, compared to 6,250 lb lb for the TYM 7845.
- Which has more loader lift capacity, the TYM 7845 or the TYM T1104?
- The TYM T1104 leads on loader lift at 4,129 lb lb, compared to 2,804 lb lb for the TYM 7845.
- Which has more three-point hitch lift capacity, the TYM 7845 or the TYM T1104?
- The TYM T1104 leads on 3-pt lift (24 in) at 5,490 lb lb, compared to 2,526 lb lb for the TYM 7845.
