Across 9 measurable specs, the TYM T130 leads 8 categories to 0 (1 tied). Machine pages: TYM T130 and TYM T6115.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | TYM T130 | TYM T6115 |
|---|
| Engine HP (hp) | ▲ 127 hp | 111 hp |
| PTO HP (hp) | ▲ 118 hp | 109 hp |
| Weight (lb) | ▲ 10,020 lb | 8,939 lb |
| Loader Lift (lb) | ▲ 5,415 lb | 4,129 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 8,014 lb | 6,007 lb |
| Lift Height (in) | ▲ 162 in | 144.4 in |
| Breakout Force (lbf) | ▲ 6,618 lbf | 6,025 lbf |
| Hydraulic Flow (gpm) | ▲ 29.2 gpm | 21.4 gpm |
| Travel Speed (mph) | 23 mph | 23 mph |

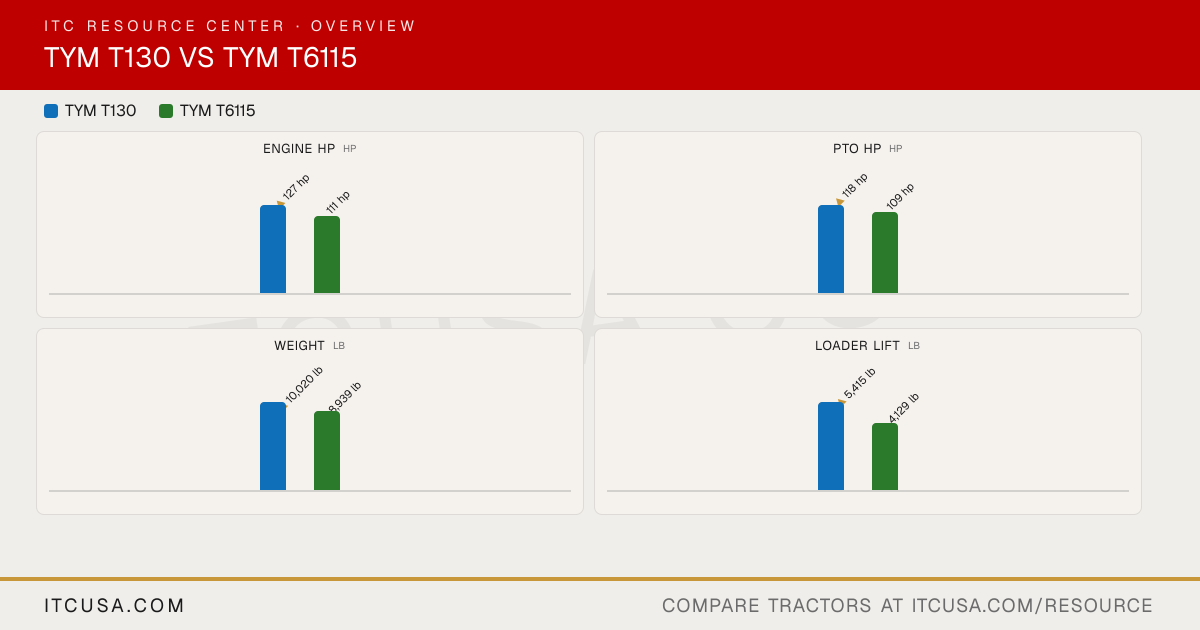

The headline numbers at a glance.
TYM T130TYM T6115
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
|
|---|
| Engine Manufacturer | Deutz | Deutz |
|---|
| Engine Model | TCD3.6L4 | TCD3.6 |
|---|
| Engine Type | Water-cooled, 4-cylinder diesel engine | 4-cylinder, turbocharged diesel |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 221 in³ | 220 in³ |
|---|
| Rated Engine Speed | 2200 rpm | 2200 rpm |
|---|
| Engine Power (Gross) | 127 hp | 111 hp |
|---|
| PTO Power | 118 hp | 109 hp |
|---|
| Engine Emissions Constraints | Not Published | Tier 4 |
|---|
| Cooling System Type | Water-cooled | Liquid-cooled |
|---|
| Air Cleaner | Dual dry | Dual dry |
|---|
| Fuel System | CRDI | CRDI |
|---|
| Alternator | 120 A, 12 V | 120 A, 12 V |
|---|
|
|---|
| Pump Type | Dual gear pump | Dual gear pump |
|---|
| Implement Flow | 20.1 gpm | 14.3 gpm |
|---|
| Steering Flow | 9.1 gpm | 7.1 gpm |
|---|
| Total Hydraulic Flow | 29.2 gpm | 21.4 gpm |
|---|
| Overall Hydraulic Pump Flow | 29.2 gpm | 21.4 gpm |
|---|
| Hydraulic System Type | Not Published | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 6 | 6 |
|---|
| No. of Optional Remote Valves | Not Published | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 50.2 gal | 31.43 gal |
|---|
| Coolant Capacity | 19.1 qt | 4.8 gal |
|---|
| Crankcase Capacity | 8.5 qt | 8.5 qt |
|---|
| Transmission / Hydraulic System Capacity | 26.9 gal | 23.8 gal |
|---|
| Front Axle Fluid Capacity | 6.3 qt | 4.6 gal |
|---|
|
|---|
| PTO Type | Independent | Independent |
|---|
| PTO Rear | 540/540E/1000 rpm (Reversible shaft) | 540/750/1000 rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II | Category II |
|---|
| Hitch Lift Capacity | 8,261 lb | 7,295 lb |
|---|
| Hitch Lift Capacity (at 24”) | 8,014 lb | 6,007 lb |
|---|
| Lift Control Type | Position/Draft | Position/Draft |
|---|
|
|---|
| Transmission Type | Power shuttle & 6-speed shift APS | Power shuttle, Power shift |
|---|
| No. of Speeds | F36 x R36 w/Creep | F32 x R32 |
|---|
| Max Travel Speed (Forward) | 23 mph | 23 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Wet Multi Plate | Wet |
|---|
| Differential Lock & Limited Slip Options | Not Published | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic | Hydrostatic |
|---|
| Brakes | Wet, Multi disc | Hydraulic |
|---|
| Seat Suspension & Adjustability | Air-ride full suspension seat | Air-ride full suspension seat |
|---|
| Front Axle Type | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 176.8 in | 167.32 in |
|---|
| Overall Width | 92.9 in | 91.33 in |
|---|
| Wheelbase | 102 in | 93.7 in |
|---|
| Ground Clearance | 16.1 in | 16.7 in |
|---|
| Min. Turn Radius without Brakes | 186.6 in (left); 189 in (right) | 159.5 in (left); 161 in (right) |
|---|
| Height to Top of ROPS | Not Published | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 115.7 in | 112.59 in |
|---|
|
|---|
| Tractor Weight (Base) | 10,020 lb | 8,939 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Not Published | Not Published |
|---|
| R1 Agricultural - Front | 380/85 R28 | 13.6-24 8PR |
|---|
| R1 Agricultural - Rear | 460/85 R38 (18.4R38) | 18.4-34 10PR |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Not Published | Not Published |
|---|
| Loader Model | TL130SL | TL115SL |
|---|
| Loader Lift Height | TL130SL: 162 in | TL115SL: 144.4 in |
|---|
| Loader Lift Capacity (Full Height) | TL130SL: 5,415 lb | TL115SL: 4,129 lb |
|---|
| Loader Breakout Force | TL130SL: 6,618 lb | TL115SL: 6,025 lb |
|---|
|
|---|
| Warranty Length & Coverage | Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months | Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months |
|---|
TYM T130 vs TYM T6115: Quick Answers
- Which has more horsepower, the TYM T130 or the TYM T6115?
- The TYM T130 leads on engine hp at 127 hp hp, compared to 111 hp hp for the TYM T6115.
- Which has more PTO horsepower, the TYM T130 or the TYM T6115?
- The TYM T130 leads on pto hp at 118 hp hp, compared to 109 hp hp for the TYM T6115.
- Which is heavier, the TYM T130 or the TYM T6115?
- The TYM T130 leads on weight at 10,020 lb lb, compared to 8,939 lb lb for the TYM T6115.
- Which has more loader lift capacity, the TYM T130 or the TYM T6115?
- The TYM T130 leads on loader lift at 5,415 lb lb, compared to 4,129 lb lb for the TYM T6115.
- Which has more three-point hitch lift capacity, the TYM T130 or the TYM T6115?
- The TYM T130 leads on 3-pt lift (24 in) at 8,014 lb lb, compared to 6,007 lb lb for the TYM T6115.
