TYM T394 vs TYM T394C

Across 9 measurable specs, this matchup is a dead heat: 1 categories to the TYM T394, 1 to the TYM T394C, 7 tied. Machine pages: TYM T394 and TYM T394C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

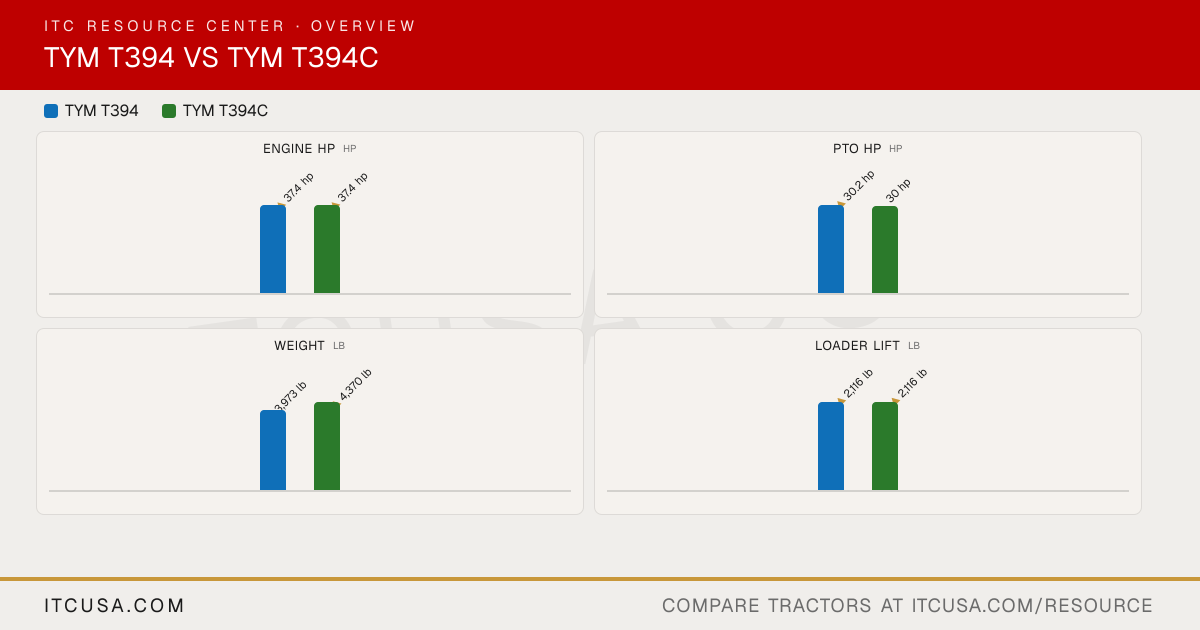

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYMT394	TYMT394C

▶Engine
Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNV88-CR	3TNV88-CR
Engine Type	3-cylinder, naturally aspirated diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	100.2 in³	100.2 in³
Rated Engine Speed	3000 rpm	3000 rpm
Engine Power (Gross)	36.9 hp	36.9 hp
PTO Power	30.2 hp	30 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Dual dry	Dual dry
Fuel System	CRDI	CRDI
Alternator	50 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Dual gear pump	Dual gear pump
Implement Flow	6.1 gpm	6.1 gpm
Steering Flow	4.4 gpm	4.4 gpm
Total Hydraulic Flow	10.5 gpm	10.5 gpm
Overall Hydraulic Pump Flow	10.5 gpm	10.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None	None
No. of Optional Remote Valves	1 or 2 (single or double rear remote with detent, accessory)	1 or 2 (single or double rear remote with detent, accessory)
▶Fluid Capacity
Fuel Tank Capacity	9.0 gal	9.0 gal
Coolant Capacity	7.4 qt	7.4 qt
Crankcase Capacity	6 qt	6 qt
Transmission / Hydraulic System Capacity	8.5 gal	8.5 gal
Front Axle Fluid Capacity	8.7 qt	8.7 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional (Mid-PTO kit)	Optional (Mid-PTO kit)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,639 lb	2,639 lb
Hitch Lift Capacity (at 24”)	1,558 lb	1,558 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Mechanical	Mechanical
No. of Speeds	12 forward / 12 reverse	12 forward / 12 reverse
Max Travel Speed (Forward)	15.0 mph	15.0 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry single plate	Dry single plate
Differential Lock & Limited Slip Options	Differential lock (pedal)	Differential lock (pedal)
▶Chassis, Steering & Controls
Frame Type	Unit frame: engine, clutch housing, transmission and front axle support bolted into one rigid assembly	Unit frame: engine, clutch housing, transmission and front axle support bolted into one rigid assembly
Steering	Hydrostatic	Hydrostatic
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Fore and aft sliding seat with cushion strength adjustment	Fore and aft sliding seat with cushion strength adjustment
Front Axle Type	4WD center-pivot, reverse Elliott type	4WD center-pivot, reverse Elliott type
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	53.5 in	53.5 in
Wheelbase	64.5 in	66.9 in
Ground Clearance	12.8 in	12.8 in
Min. Turn Radius without Brakes	116 in	116 in
Height to Top of ROPS	94.5 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	92.5 in
Overall Length	126 in (with 3-point hitch)	126 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	3,020 lb (with ROPS)	3,417 lb (weight with cab)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	Farm Specialist 8.0-16 NHS TL 6PR	Farm Specialist 8.0-16 NHS TL 6PR
R1 Agricultural - Rear	Farm Specialist 12.4-24 NHS TL 6PR (standard); Farm Specialist 11.2-24 NHS TL 6PR (option)	Farm Specialist 12.4-24 NHS TL 6PR (standard); Farm Specialist 11.2-24 NHS TL 6PR (option)
R3 Turf - Front	27x10.5-15	27x10.5-15 (standard); Multi-Trac CS 27x8.50-15 NHS TL 4PR (option)
R3 Turf - Rear	12.5-20	12.5-20 (standard); Multi-Trac CS 41x14.00-20 NHS TL 4PR (option)
R4 Industrial - Front	27x10.5-15	27x10.5-15
R4 Industrial - Rear	12.5x20	12.5x20
▶Loader & Attachments
Quick Attach Loader System	TX39H: quick attachment assembly	TX39H: quick attachment assembly
Loader Model	TX39H	TX39H
Loader Lift Height	TX39H: 101.5 in	TX39H: 101.5 in
Loader Lift Capacity (Full Height)	TX39H: 2,116 lb (at pivot pin)	TX39H: 2,116 lb (at pivot pin)
Loader Breakout Force	TX39H: 3,435 lb (at pivot pin, ground level)	TX39H: 3,435 lb (at pivot pin, ground level)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 2,000 hours, parts and labor; non-commercial: powertrain 72 months or 3,000 hours; rental and commercial: powertrain 36 months or 2,000 hours; loaders and backhoes 12 months	Basic 24 months or 2,000 hours, parts and labor; non-commercial: powertrain 72 months or 3,000 hours; rental and commercial: powertrain 36 months or 2,000 hours; loaders and backhoes 12 months
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T394 Rural King RK37 Brush Screen Insert $249.99	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T394 Rural King RK37 Brush Screen Insert $249.99

Find a TYM dealer near you→

TYM T394 vs TYM T394C: Quick Answers

Which has more horsepower, the TYM T394 or the TYM T394C?

They are effectively tied: both machines are rated at 36.9 hp hp for engine hp.

Which has more PTO horsepower, the TYM T394 or the TYM T394C?

The TYM T394 leads on pto hp at 30.2 hp hp, compared to 30 hp hp for the TYM T394C.

Which is heavier, the TYM T394 or the TYM T394C?

The TYM T394C leads on weight at 3,417 lb lb, compared to 3,020 lb lb for the TYM T394.

Which has more loader lift capacity, the TYM T394 or the TYM T394C?

They are effectively tied: both machines are rated at 2,116 lb lb for loader lift.

Which has more three-point hitch lift capacity, the TYM T394 or the TYM T394C?

They are effectively tied: both machines are rated at 1,558 lb lb for 3-pt lift (24 in).
