Which has more horsepower, the TYM T4058P or the TYM T654?

The TYM T654 leads on engine hp at 67 hp hp, compared to 58 hp hp for the TYM T4058P.

Which has more PTO horsepower, the TYM T4058P or the TYM T654?

The TYM T654 leads on pto hp at 61.9 hp hp, compared to 48 hp hp for the TYM T4058P.

Which is heavier, the TYM T4058P or the TYM T654?

The TYM T654 leads on weight at 7,140 lb lb, compared to 5,806.2 lb lb for the TYM T4058P.

Which has more loader lift capacity, the TYM T4058P or the TYM T654?

The TYM T4058P leads on loader lift at 3,437 lb lb, compared to 3,122 lb lb for the TYM T654.

Which has more three-point hitch lift capacity, the TYM T4058P or the TYM T654?

The TYM T4058P leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 3,153 lb lb for the TYM T654.

TYM T4058P vs TYM T654

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the TYM T654 leads 5 categories to 4. Machine pages: TYM T4058P and TYM T654.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	TYM T4058P	TYM T654
Engine HP (hp)	58 hp	▲ 67 hp
PTO HP (hp)	48 hp	▲ 61.9 hp
Weight (lb)	5,806.2 lb	▲ 7,140 lb
Loader Lift (lb)	▲ 3,437 lb	3,122 lb
3-Pt Lift (24 in) (lb)	▲ 3,748 lb	3,153 lb
Lift Height (in)	117.5 in	▲ 124.8 in
Breakout Force (lbf)	4,742 lbf	▲ 5,225 lbf
Hydraulic Flow (gpm)	▲ 16.5 gpm	16.1 gpm
Travel Speed (mph)	▲ 24 mph	20.2 mph

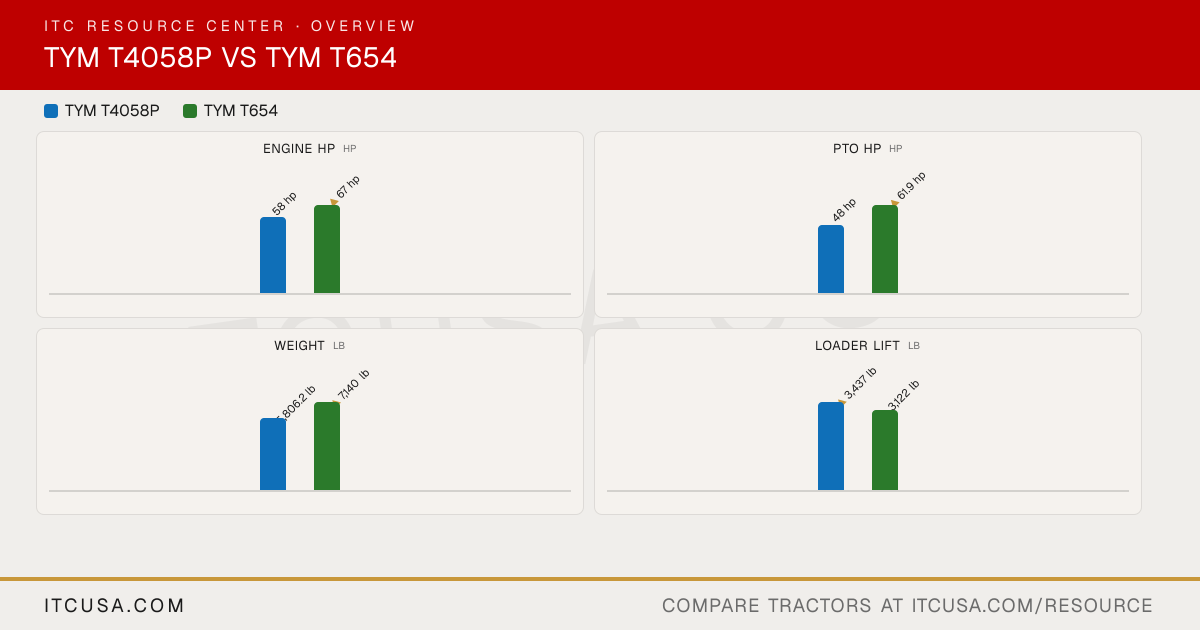

The headline numbers at a glance.

TYM T4058PTYM T654

Engine HPhp

58 hp

▲67 hp

PTO HPhp

48 hp

▲61.9 hp

Weightlb

5,806.2 lb

▲7,140 lb

Loader Liftlb

▲3,437 lb

3,122 lb

3-Pt Lift (24 in)lb

▲3,748 lb

3,153 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYMT4058P	TYMT654


PTO Power	48 hp	61.9 hp
Alternator	70 A, 12 V	95 A, 12 V
Air Cleaner	Dry element	Dual dry
Engine Type	4-cylinder, turbocharged diesel	4-cylinder, turbocharged diesel
Fuel System	IDI	CRDI
Displacement	139.5 in³	177 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2200 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	TYM	Deutz
Engine Power (Gross)	58 hp	67 hp
Engine Emissions Constraints	Tier 4	Diesel Oxidation Catalyst (DOC)

Weight with ROPS and Loader	5,806.2 lb	Not Applicable
Weight with Cab and Loader	Not Applicable	7,140 lb

Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Single gear pump	Dual gear pump
Steering Flow	5.13 gpm	5.8 gpm
Implement Flow	11.4 gpm	10.3 gpm
Total Hydraulic Flow	16.5 gpm	16.1 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	16.5 gpm	16.1 gpm
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	Loader: 4; Rear: 4	2

PTO Rear	540 rpm	540/750/1,000 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position/Draft/Mech
Hitch Lift Capacity	4,409 lb	4,270 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category II	Category II
Hitch Lift Capacity (at 24”)	3,748 lb	3,153 lb

R3 Turf - Rear	44x18.00-20	Not Published
R3 Turf - Front	29x12.5-15	Not Published
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R4 Industrial
R4 Industrial - Rear	16.9-24	Xtra Grip 18.4-24 NHS TL 8PR
R4 Industrial - Front	10.5/80-18	Trac Chief 10.5/80-18 NHS TL 10PR
R1 Agricultural - Rear	14.9-28	FSTR 380/85R28 TL (14.9R28)
R1 Agricultural - Front	9.5-20	FSTR 9.5 R20 TL

Coolant Capacity	6.2 qt	10.6 qt
Crankcase Capacity	4.7 qt	8.5 qt
Fuel Tank Capacity	15.32 gal	18.5 gal
Front Axle Fluid Capacity	6.8 qt	17.3 qt
Transmission / Hydraulic System Capacity	11.6 gal	11.0 gal

Loader Lift Height	117.5 in	124.8 in
Loader Breakout Force	4,742 lb	5,225 lb
Quick Attach Loader System	L4058P: Quick attach mechanism	TX65SL: Quick attachment (Skid/Euro type)
Loader Lift Capacity (Full Height)	3,437 lb	3,122 lb

Clutch	Wet, multi-disc	M: Dry Single Plate; PS: Wet Multi Plate
No. of Speeds	F12 x R12	F24 x R24
Transmission Type	Power shuttle	Synchro-shuttle
Max Travel Speed (Forward)	24.04 mph	20.2 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Differential lock

Brakes	Wet, multi-disc	Wet disc
Steering	Hydrostatic	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	4WD	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Suspension seat	Suspension seat

Wheelbase	78.7 in	84.6 in
Overall Width	68.9 in	72.4 in
Ground Clearance	18.1 in	17.1 in
Height to Top of ROPS	104.7 in	Not Applicable
Height to Top of Cab Model	Not Applicable	100.2 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	L: 139.7 in; R: 141.9 in	162.2 in
Overall Length with 3-Point Hitch	141.5 in	155.6 in

TYM T4058P vs TYM T654: Quick Answers

Which has more horsepower, the TYM T4058P or the TYM T654?: The TYM T654 leads on engine hp at 67 hp hp, compared to 58 hp hp for the TYM T4058P.
Which has more PTO horsepower, the TYM T4058P or the TYM T654?: The TYM T654 leads on pto hp at 61.9 hp hp, compared to 48 hp hp for the TYM T4058P.
Which is heavier, the TYM T4058P or the TYM T654?: The TYM T654 leads on weight at 7,140 lb lb, compared to 5,806.2 lb lb for the TYM T4058P.
Which has more loader lift capacity, the TYM T4058P or the TYM T654?: The TYM T4058P leads on loader lift at 3,437 lb lb, compared to 3,122 lb lb for the TYM T654.
Which has more three-point hitch lift capacity, the TYM T4058P or the TYM T654?: The TYM T4058P leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 3,153 lb lb for the TYM T654.
