Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT4058P
YanmarYM359
PTO Power
48 hp
47 hp
Alternator
70 A, 12 V
Not Published
Air Cleaner
Dry element
Dual air cleaner element
Engine Type
4-cylinder, turbocharged diesel
4-cylinder, liquid-cooled diesel
Fuel System
IDI
Not Published
Displacement
139.5 in³
202.4 in³
No. of Cylinders
4
4
Rated Engine Speed
2600 rpm
Not Published
Cooling System Type
Not Published
Liquid cooled
Engine Manufacturer
TYM
YANMAR
Engine Power (Gross)
58 hp
58.9 hp
Engine Emissions Constraints
Tier 4
Not Published
Weight with ROPS and Loader
5,806.2 lb
5,371 lb
Weight with Cab and Loader
Not Applicable
Not Applicable
Warranty Length & Coverage
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
10-year limited powertrain warranty or 3,000 hours (whichever comes first)
Pump Type
Single gear pump
Not Published
Steering Flow
5.13 gpm
5.7 gpm
Implement Flow
11.4 gpm
10.2 gpm
Total Hydraulic Flow
16.5 gpm
15.9 gpm
Hydraulic System Type
Not Published
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
16.5 gpm
15.9 gpm
No. of Optional Remote Valves
Not Published
2
No. of Standard Remote Valves
Loader: 4; Rear: 4
1
PTO Rear
540 rpm
540/540E rpm
PTO Type
Independent
Independent
Lift Control Type
Position control
Not Published
Hitch Lift Capacity
4,409 lb
3,190 lb
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category II
Category I & II
Hitch Lift Capacity (at 24”)
3,748 lb
2,750 lb
R3 Turf - Rear
44x18.00-20
44 x 18 - 20.0
R3 Turf - Front
29x12.5-15
27.0 - 10.5
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural; R3 Turf; R4 Industrial
R4 Industrial - Rear
16.9-24
16.9 - 24.0
R4 Industrial - Front
10.5/80-18
10.0 - 16.5
R1 Agricultural - Rear
14.9-28
420/85R24 (Radial)
R1 Agricultural - Front
9.5-20
210/95R16 (Radial)
Coolant Capacity
6.2 qt
Not Published
Crankcase Capacity
4.7 qt
Not Published
Fuel Tank Capacity
15.32 gal
13.2 gal
Front Axle Fluid Capacity
6.8 qt
Not Published
Transmission / Hydraulic System Capacity
11.6 gal
Not Published
Loader Lift Height
117.5 in
113 in
Loader Breakout Force
4,742 lb
3,047 lb
Quick Attach Loader System
L4058P: Quick attach mechanism
YL605: Skid steer quick attach
Loader Lift Capacity (Full Height)
3,437 lb
2,500 lb (pivot pin)
Clutch
Wet, multi-disc
Dry single
No. of Speeds
F12 x R12
8F/8R
Transmission Type
Power shuttle
Synchronized shuttle shift
Max Travel Speed (Forward)
24.04 mph
18.5 mph
Max Travel Speed (Reverse)
Not Published
Not Published
Differential Lock & Limited Slip Options
Not Published
Not Published
Brakes
Wet, multi-disc
Not Published
Steering
Hydrostatic
Power steering
Frame Type
Not Published
Not Published
Front Axle Type
4WD
Not Published
Drawbar Capacity
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Suspension seat
Suspension seat
Wheelbase
78.7 in
77.5 in
Overall Width
68.9 in
70.9 in (with R4 tires)
Ground Clearance
18.1 in
15.5 in
Height to Top of ROPS
104.7 in
98 in (with R4 tires)
Height to Top of Cab Model
Not Applicable
Not Applicable
Height to Top of ROPS (folded)
Not Published
Not Published
Min. Turn Radius without Brakes
L: 139.7 in; R: 141.9 in
11.8 ft (3.6 m)
Overall Length with 3-Point Hitch
141.5 in
133.9 in (with 3PH and R4 tires)

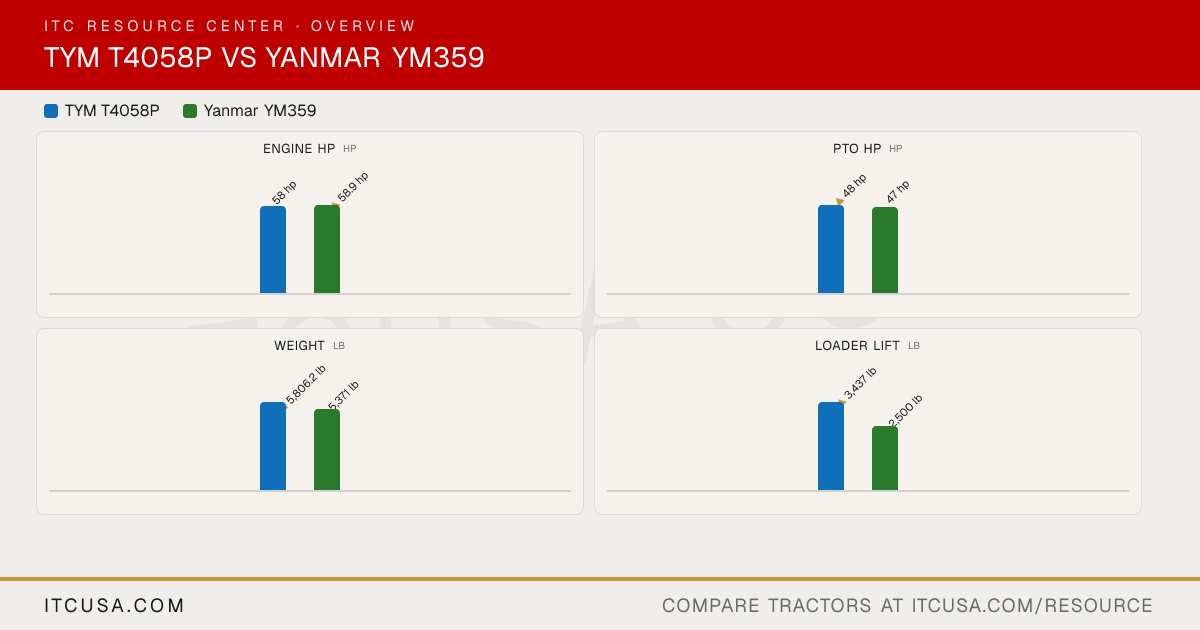

TYM T4058P vs Yanmar YM359: Quick Answers
Which has more horsepower, the TYM T4058P or the Yanmar YM359?
The Yanmar YM359 leads on engine hp at 58.9 hp hp, compared to 58 hp hp for the TYM T4058P.
Which has more PTO horsepower, the TYM T4058P or the Yanmar YM359?
The TYM T4058P leads on pto hp at 48 hp hp, compared to 47 hp hp for the Yanmar YM359.
Which is heavier, the TYM T4058P or the Yanmar YM359?
The TYM T4058P leads on weight at 5,806.2 lb lb, compared to 5,371 lb lb for the Yanmar YM359.
Which has more loader lift capacity, the TYM T4058P or the Yanmar YM359?
The TYM T4058P leads on loader lift at 3,437 lb lb, compared to 2,500 lb lb for the Yanmar YM359.
Which has more three-point hitch lift capacity, the TYM T4058P or the Yanmar YM359?
The TYM T4058P leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 2,750 lb lb for the Yanmar YM359.
