TYM T474 vs TYM T474C

Across 9 measurable specs, the TYM T474C leads 1 categories to 0 (8 tied). Machine pages: TYM T474 and TYM T474C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

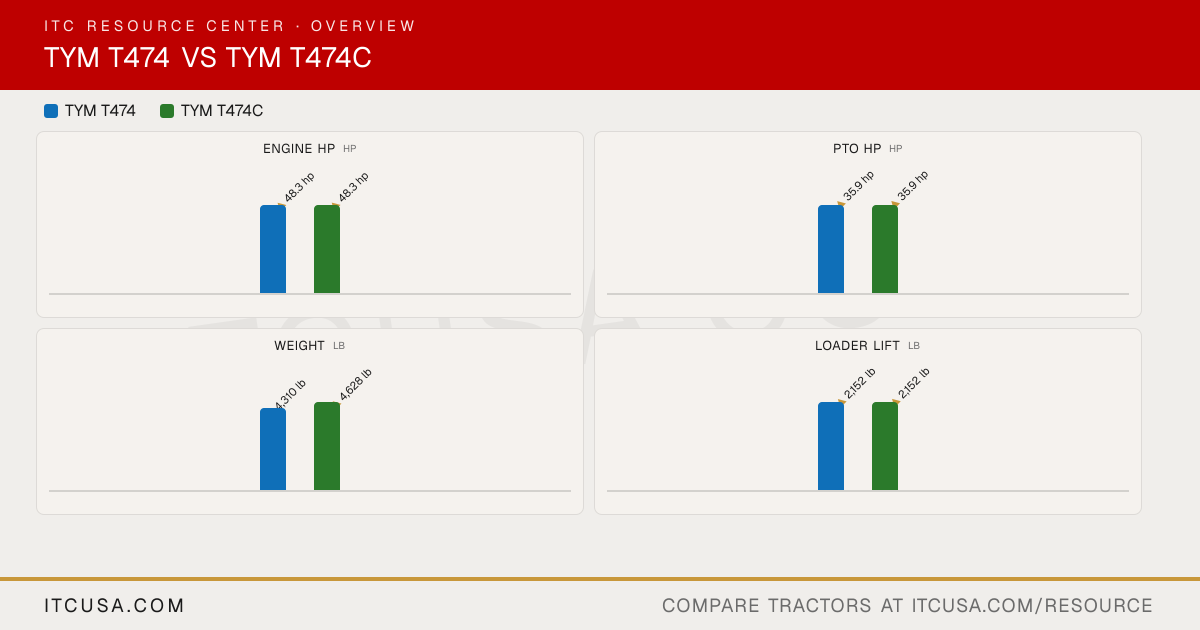

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYMT474	TYMT474C

▶Engine
Engine Manufacturer	TYM	TYM
Engine Model	T2300N2	T2300N2
Engine Type	4-cylinder, naturally aspirated diesel	4-cylinder, naturally aspirated diesel
No. of Cylinders	4	4
Displacement	139.5 in³	139.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	48.3 hp	48.3 hp
PTO Power	35.4 hp	35.4 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Single dry	Single dry
Fuel System	IDI	IDI
Alternator	70 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Dual gear pump	Dual gear pump
Implement Flow	7.7 gpm	7.7 gpm
Steering Flow	4.2 gpm	4.2 gpm
Total Hydraulic Flow	11.9 gpm	11.9 gpm
Overall Hydraulic Pump Flow	11.9 gpm	11.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	1
No. of Optional Remote Valves	Double rear remote with detent (accessory)	Double rear remote with detent (accessory)
▶Fluid Capacity
Fuel Tank Capacity	9.0 gal	9.0 gal
Coolant Capacity	6.9 qt	6.9 qt
Crankcase Capacity	6.8 qt	6.8 qt
Transmission / Hydraulic System Capacity	8.5 gal	8.5 gal
Front Axle Fluid Capacity	8.7 qt	8.7 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional (Mid-PTO kit accessory)	Optional (Mid-PTO kit accessory)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,690 lb	2,690 lb
Hitch Lift Capacity (at 24”)	1,764 lb	1,764 lb
Lift Control Type	Position	Position control
▶Transmission & Drivetrain
Transmission Type	Mechanical	Mechanical
No. of Speeds	12 forward / 12 reverse	12 forward / 12 reverse
Max Travel Speed (Forward)	14.9 mph	14.9 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry single plate	Dry single plate
Differential Lock & Limited Slip Options	Differential lock (pedal)	Differential lock (pedal)
▶Chassis, Steering & Controls
Frame Type	Transmission case, clutch, clutch housing, engine and front axle support bolted together to form a rigid unit	Transmission case, clutch, clutch housing, engine and front axle support bolted together to form a rigid unit
Steering	Hydrostatic	Hydrostatic
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Fore and aft sliding seat with cushion strength adjustment	Fore and aft sliding seat with cushion strength adjustment
Front Axle Type	4WD center-pivot, reverse Elliott type	4WD center-pivot, reverse Elliott type
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	54.5 in	54.5 in
Wheelbase	69.7 in	69.7 in
Ground Clearance	12.8 in	12.8 in
Min. Turn Radius without Brakes	117.5 in	117.5 in
Height to Top of ROPS	94.5 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	92.5 in
Overall Length	131 in (with 3-point hitch)	131 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	3,289 lb	3,607 lb
Weight with ROPS and Loader	4,310 lb (3,289 + 1,021, computed)	Not Published
Weight with Cab and Loader	Not Published	4,628 lb (3,607 + 1,021, computed; TX47 loader with bucket)
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	Farm Specialist 8.0-16 NHS TL 6PR (standard); Farm Specialist 7-16 NHS TL 6PR (option)	Farm Specialist 8.0-16 NHS TL 6PR (standard); Farm Specialist 7-16 NHS TL 6PR (option)
R1 Agricultural - Rear	Farm Specialist 12.4-24 NHS TL 6PR (standard); Farm Specialist 11.2-24 NHS TL 6PR (option)	Farm Specialist 12.4-24 NHS TL 6PR (standard); Farm Specialist 11.2-24 NHS TL 6PR (option)
R3 Turf - Front	Multi-Trac CS 27x10.5-15 NHS TL 4PR (standard); Multi-Trac CS 27x8.50-15 NHS TL 4PR (option)	Multi-Trac CS 27x10.5-15 NHS TL 4PR (standard); Multi-Trac CS 27x8.50-15 NHS TL 4PR (option)
R3 Turf - Rear	12.5x20 (standard); Multi-Trac CS 41x14.00-20 NHS TL 4PR (option)	12.5x20 (standard); Multi-Trac CS 41x14.00-20 NHS TL 4PR (option)
R4 Industrial - Front	Trac Chief 10-16.50 NHS TL 6PR	Trac Chief 10-16.50 NHS TL 6PR
R4 Industrial - Rear	Xtra Grip 43x16.00-20 NHS TL 6PR	Xtra Grip 43x16.00-20 NHS TL 6PR
▶Loader & Attachments
Quick Attach Loader System	TX47: skid type quick attach (TX47-E: Euro type)	TX47: Quick attach mechanism
Loader Model	TX47	TX47
Loader Lift Height	TX47: 105.6 in	TX47: 105.6 in
Loader Lift Capacity (Full Height)	TX47: 2,152 lb (at pivot pin)	TX47: 2,152 lb (at pivot pin)
Loader Breakout Force	TX47: 3,198 lb (at pivot pin, ground level)	TX47: 3,198 lb (at pivot pin, ground level)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 2,000 hours, parts and labor; non-commercial: powertrain 72 months or 3,000 hours; rental and commercial: powertrain 36 months or 2,000 hours; loaders and backhoes 12 months	Basic 24 months or 2,000 hours, parts and labor; non-commercial: powertrain 72 months or 3,000 hours; rental and commercial: powertrain 36 months or 2,000 hours; loaders and backhoes 12 months
▶ITC Company Accessories
Accessories that fit	TYM T474 Brush Guard Insert $249.99 A must have if you are working with brush. TYM T474 Hydraulic Valve Cover $184.99 Engineered to protect the exposed hydraulic valve. Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T474 Skid Plate $399.99 Major underside protection to save linkages, lines, valves, and filters.	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T474 Hydraulic Valve Cover $184.99 Engineered to protect the exposed hydraulic valve. TYM T474 Brush Guard Insert $249.99 A must have if you are working with brush.

Find a TYM dealer near you→

TYM T474 vs TYM T474C: Quick Answers

Which has more horsepower, the TYM T474 or the TYM T474C?

They are effectively tied: both machines are rated at 48.3 hp hp for engine hp.

Which has more PTO horsepower, the TYM T474 or the TYM T474C?

They are effectively tied: both machines are rated at 35.4 hp hp for pto hp.

Which is heavier, the TYM T474 or the TYM T474C?

The TYM T474C leads on weight at 3,607 lb lb, compared to 3,289 lb lb for the TYM T474.

Which has more loader lift capacity, the TYM T474 or the TYM T474C?

They are effectively tied: both machines are rated at 2,152 lb lb for loader lift.

Which has more three-point hitch lift capacity, the TYM T474 or the TYM T474C?

They are effectively tied: both machines are rated at 1,764 lb lb for 3-pt lift (24 in).
