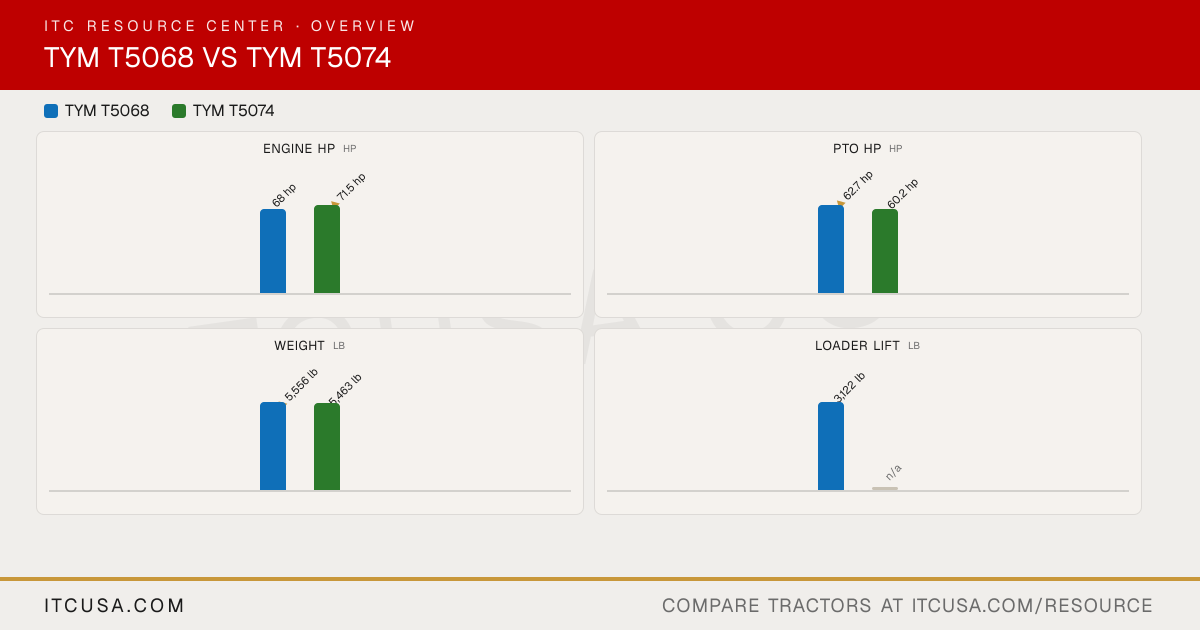

Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT5068
TYMT5074
Engine Manufacturer
Deutz
Yanmar
Engine Model
TCD 2.9
4TN98CT-7PKTF
Engine Type
4-cylinder, turbocharged diesel
4-cylinder, water-cooled, turbocharged diesel
No. of Cylinders
4
4
Displacement
177 in³
202.5 in³
Rated Engine Speed
2200 rpm
2400 rpm
Engine Power (Gross)
68 hp
71.5 hp
PTO Power
62.7 hp
60.2 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid-cooled
Water-cooled
Air Cleaner
Dual dry
PowerCore Type
Fuel System
CRDI
CRDI
Alternator
95 A, 12 V
70 A, 12 V
Pump Type
Dual gear pump
Dual gear pump
Implement Flow
10.3 gpm
10.3 gpm
Steering Flow
5.8 gpm
5.8 gpm
Total Hydraulic Flow
16.1 gpm
16.1 gpm
Overall Hydraulic Pump Flow
16.1 gpm
16.1 gpm
Hydraulic System Type
Not Published
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
6 (Floating/Regen); 4 (Spring/Floating)
Not Published
No. of Optional Remote Valves
Not Published
Not Published
Fuel Tank Capacity
18.5 gal
19 gal
Coolant Capacity
2.8 gal
3 gal
Crankcase Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
11.1 gal
13.7 gal
Front Axle Fluid Capacity
4.3 gal
2.4 gal
PTO Type
Independent
Independent
PTO Rear
540/750 rpm
540/750 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category II
Category II
Hitch Lift Capacity
4,270 lb
4,329 lb
Hitch Lift Capacity (at 24”)
3,153 lb
3,159 lb
Lift Control Type
Position/Draft
Position/Draft
Transmission Type
Synchro or power shuttle
Power shuttle
No. of Speeds
Not Published
F12 x R12
Max Travel Speed (Forward)
23 mph
13.5 mph
Max Travel Speed (Reverse)
Not Published
Not Published
Clutch
M: Dry Single Plate; PS: Wet Multi Plate
Wet Multi Plate
Differential Lock & Limited Slip Options
Not Published
Not Published
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic
Brakes
Wet disc
Wet disc
Seat Suspension & Adjustability
Suspension seat
Adjustable sliding seat with backrest angle and cushion firmness adjustment
Front Axle Type
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Width
72.4 in
81.4 in
Wheelbase
84.7 in
84.6 in
Ground Clearance
17.1 in
17.6 in
Min. Turn Radius without Brakes
162.2 in
164.2 in; 169.3 in
Height to Top of ROPS
Not Published
106.8 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
103 in
Not Published
Overall Length
155.6 in (with 3-point hitch)
148.1 in (with 3-point hitch)
Tractor Weight (Base)
5,556 lb (with cab)
5,463 lb (with ROPS)
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Not Published
Not Published
R1 Agricultural - Front
9.5R20
11.2-24
R1 Agricultural - Rear
Not Published
16.9-30
R3 Turf - Front
Not Published
Not Published
R3 Turf - Rear
Not Published
Not Published
R4 Industrial - Front
Not Published
15-19.5
R4 Industrial - Rear
18.4-24
18.4-24
Quick Attach Loader System
Not Published
Not Published
Loader Model
L5068SL
L5074SL
Loader Lift Height
L5068SL: 124.8 in
Not Published
Loader Lift Capacity (Full Height)
L5068SL: 3,122 lb (at pivot pin)
Not Published
Loader Breakout Force
L5068SL: 5,225 lb (at pivot pin, ground level)
Not Published
Warranty Length & Coverage
Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months
Basic 24 months or 2,000 hours, parts and labor; loaders, backhoes and mid-mount mowers 12 months
