TYM T5068 vs TYM T654
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 9 measurable specs, the TYM T5068 leads 4 categories to 0 (5 tied). Machine pages: TYM T5068 and TYM T654.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

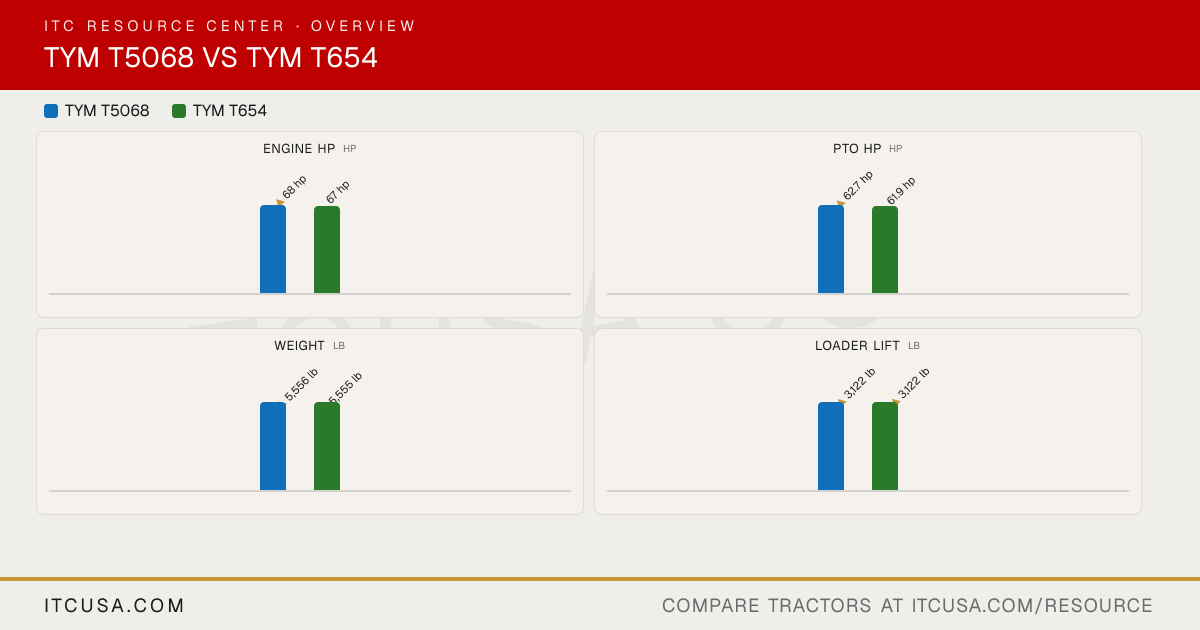

Category Verdict
| Spec | TYM T5068 | TYM T654 |
|---|---|---|
| Engine HP (hp) | ▲ 68 hp | 67 hp |
| PTO HP (hp) | ▲ 62.7 hp | 61.9 hp |
| Weight (lb) | ▲ 5,556 lb | 5,555 lb |
| Loader Lift (lb) | 3,122 lb | 3,122 lb |
| 3-Pt Lift (24 in) (lb) | 3,153 lb | 3,153 lb |
| Lift Height (in) | 124.8 in | 124.8 in |
| Breakout Force (lbf) | 5,225 lbf | 5,225 lbf |
| Hydraulic Flow (gpm) | 16.1 gpm | 16.1 gpm |
| Travel Speed (mph) | ▲ 23 mph | 20.2 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | TYMT5068 | TYMT654 |
|---|
| Engine Manufacturer | Deutz | Deutz |
|---|---|---|
| Engine Model | TCD 2.9 | TCD2.9L4 |
| Engine Type | 4-cylinder, turbocharged diesel | 4-cylinder, turbocharged, liquid-cooled diesel |
| No. of Cylinders | 4 | 4 |
| Displacement | 177 in³ | 177 in³ |
| Rated Engine Speed | 2200 rpm | 2200 rpm |
| Engine Power (Gross) | 68 hp | 67 hp |
| PTO Power | 62.7 hp | 61.9 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Liquid-cooled | Liquid-cooled |
| Air Cleaner | Dual dry | Dual dry |
| Fuel System | CRDI | CRDI |
| Alternator | 95 A, 12 V | 95 A, 12 V |
TYM T5068 vs TYM T654: Quick Answers
- Which has more horsepower, the TYM T5068 or the TYM T654?
- The TYM T5068 leads on engine hp at 68 hp hp, compared to 67 hp hp for the TYM T654.
- Which has more PTO horsepower, the TYM T5068 or the TYM T654?
- The TYM T5068 leads on pto hp at 62.7 hp hp, compared to 61.9 hp hp for the TYM T654.
- Which is heavier, the TYM T5068 or the TYM T654?
- The TYM T5068 leads on weight at 5,556 lb lb, compared to 5,555 lb lb for the TYM T654.
- Which has more loader lift capacity, the TYM T5068 or the TYM T654?
- They are effectively tied: both machines are rated at 3,122 lb lb for loader lift.
- Which has more three-point hitch lift capacity, the TYM T5068 or the TYM T654?
- They are effectively tied: both machines are rated at 3,153 lb lb for 3-pt lift (24 in).
