TYM T5074 vs TYM T654
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 6 measurable specs, the TYM T654 leads 3 categories to 2 (1 tied). Machine pages: TYM T5074 and TYM T654.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

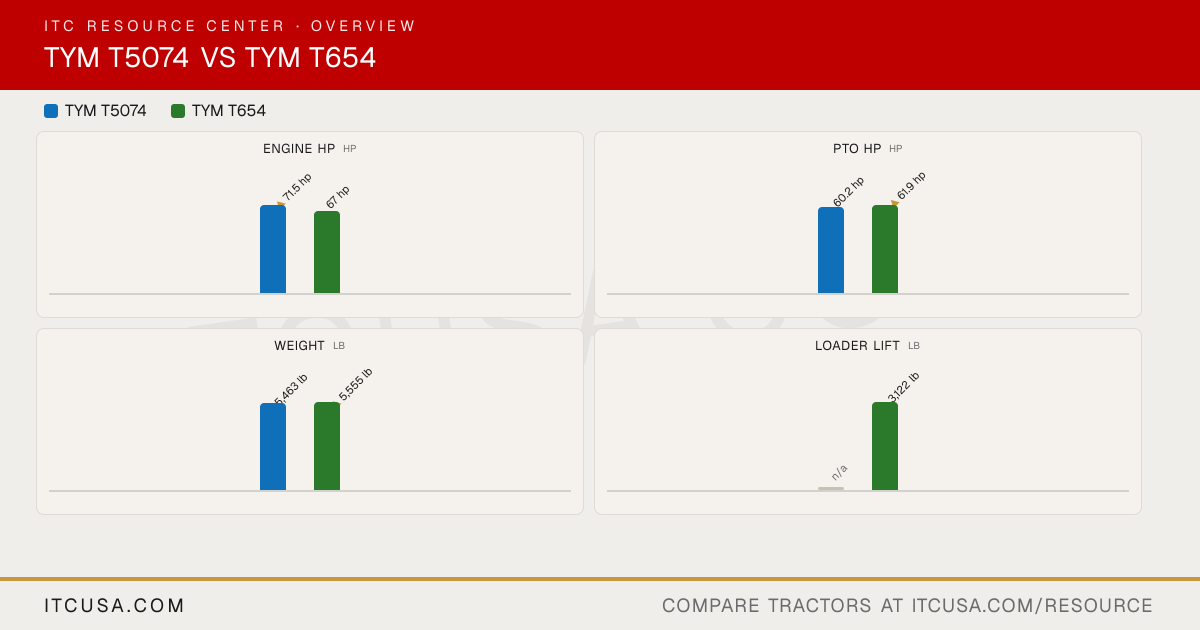

Category Verdict
| Spec | TYM T5074 | TYM T654 |
|---|---|---|
| Engine HP (hp) | ▲ 71.5 hp | 67 hp |
| PTO HP (hp) | 60.2 hp | ▲ 61.9 hp |
| Weight (lb) | 5,463 lb | ▲ 5,555 lb |
| Loader Lift (lb) | n/a | 3,122 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 3,159 lb | 3,153 lb |
| Lift Height (in) | n/a | 124.8 in |
| Breakout Force (lbf) | n/a | 5,225 lbf |
| Hydraulic Flow (gpm) | 16.1 gpm | 16.1 gpm |
| Travel Speed (mph) | 13.5 mph | ▲ 20.2 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | TYMT5074 | TYMT654 |
|---|
| Engine Manufacturer | Yanmar | Deutz |
|---|---|---|
| Engine Model | 4TN98CT-7PKTF | TCD2.9L4 |
| Engine Type | 4-cylinder, water-cooled, turbocharged diesel | 4-cylinder, turbocharged, liquid-cooled diesel |
| No. of Cylinders | 4 | 4 |
| Displacement | 202.5 in³ | 177 in³ |
| Rated Engine Speed | 2400 rpm | 2200 rpm |
| Engine Power (Gross) | 71.5 hp | 67 hp |
| PTO Power | 60.2 hp | 61.9 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Water-cooled | Liquid-cooled |
| Air Cleaner | PowerCore Type | Dual dry |
| Fuel System | CRDI | CRDI |
| Alternator | 70 A, 12 V | 95 A, 12 V |
TYM T5074 vs TYM T654: Quick Answers
- Which has more horsepower, the TYM T5074 or the TYM T654?
- The TYM T5074 leads on engine hp at 71.5 hp hp, compared to 67 hp hp for the TYM T654.
- Which has more PTO horsepower, the TYM T5074 or the TYM T654?
- The TYM T654 leads on pto hp at 61.9 hp hp, compared to 60.2 hp hp for the TYM T5074.
- Which is heavier, the TYM T5074 or the TYM T654?
- The TYM T654 leads on weight at 5,555 lb lb, compared to 5,463 lb lb for the TYM T5074.
- Which has more three-point hitch lift capacity, the TYM T5074 or the TYM T654?
- The TYM T5074 leads on 3-pt lift (24 in) at 3,159 lb lb, compared to 3,153 lb lb for the TYM T654.
