Which has more horsepower, the TYM T554 or the TYM T574?

The TYM T554 leads on engine hp at 55.9 hp hp, compared to 55 hp hp for the TYM T574.

Which has more PTO horsepower, the TYM T554 or the TYM T574?

The TYM T554 leads on pto hp at 45.6 hp hp, compared to 44.7 hp hp for the TYM T574.

Which is heavier, the TYM T554 or the TYM T574?

The TYM T554 leads on weight at 5,075 lb lb, compared to 5,007 lb lb for the TYM T574.

Which has more loader lift capacity, the TYM T554 or the TYM T574?

The TYM T574 leads on loader lift at 2,790 lb lb, compared to 2,478 lb lb for the TYM T554.

Which has more three-point hitch lift capacity, the TYM T554 or the TYM T574?

The TYM T574 leads on 3-pt lift (24 in) at 3,050.6 lb lb, compared to 2,945 lb lb for the TYM T554.

TYM T554 vs TYM T574

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the TYM T574 leads 5 categories to 4. Machine pages: TYM T554 and TYM T574.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	TYM T554	TYM T574
Engine HP (hp)	▲ 55.9 hp	55 hp
PTO HP (hp)	▲ 45.6 hp	44.7 hp
Weight (lb)	▲ 5,075 lb	5,007 lb
Loader Lift (lb)	2,478 lb	▲ 2,790 lb
3-Pt Lift (24 in) (lb)	2,945 lb	▲ 3,050.6 lb
Lift Height (in)	109.1 in	▲ 109.4 in
Breakout Force (lbf)	4,938 lbf	▲ 5,316 lbf
Hydraulic Flow (gpm)	▲ 14.1 gpm	11.9 gpm
Travel Speed (mph)	18.4 mph	▲ 18.6 mph

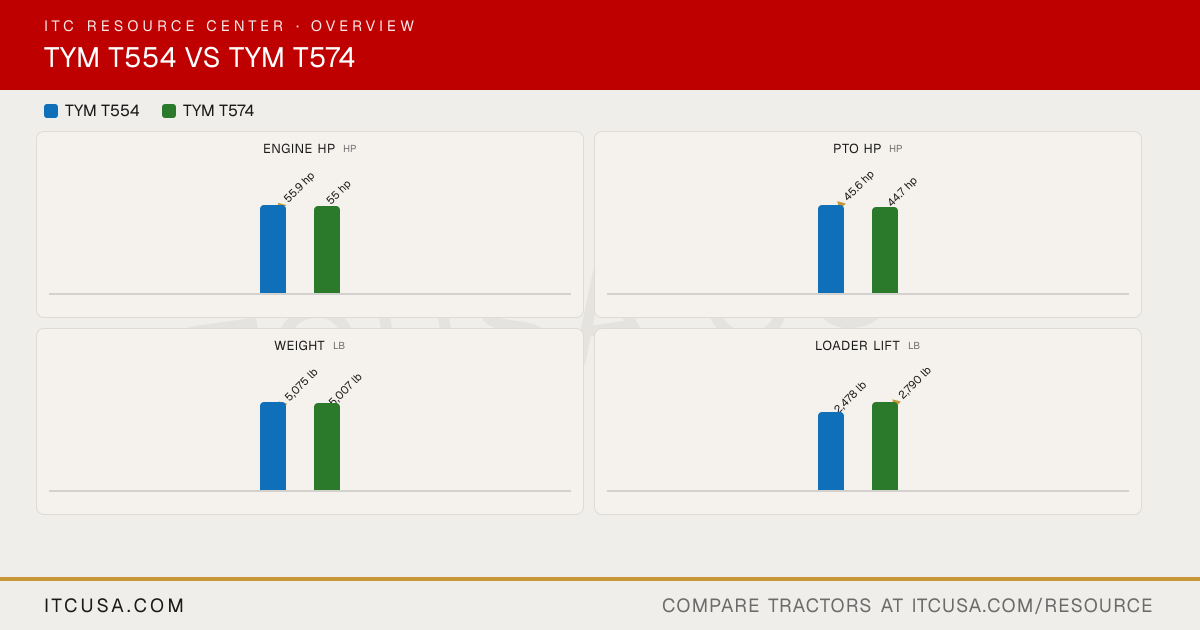

The headline numbers at a glance.

TYM T554TYM T574

Engine HPhp

▲55.9 hp

55 hp

PTO HPhp

▲45.6 hp

44.7 hp

Weightlb

▲5,075 lb

5,007 lb

Loader Liftlb

2,478 lb

▲2,790 lb

3-Pt Lift (24 in)lb

2,945 lb

▲3,050.6 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYMT554	TYMT574


PTO Power	45.6 hp	44.7 hp
Alternator	70 A, 12 V	70 A, 12 V
Air Cleaner	Dual dry	Single dry
Engine Type	4-cylinder, turbocharged diesel	4-cylinder, turbocharged diesel
Fuel System	CRDI	IDI
Displacement	127.6 in³	139.5 in³
No. of Cylinders	4	4
Rated Engine Speed	2800 rpm	2600 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	Yanmar	TYM
Engine Power (Gross)	55.9 hp	55 hp
Engine Emissions Constraints	Not Published	Tier 4

Weight with ROPS and Loader	5,075 lb	5,007 lb
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Dual gear pump	Dual gear pump
Steering Flow	4.6 gpm	4.3 gpm
Implement Flow	9.5 gpm	7.7 gpm
Total Hydraulic Flow	14.1 gpm	11.9 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	14.1 gpm	11.9 gpm
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	2	2

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position/Draft	Position/Draft
Hitch Lift Capacity	3,314 lb	3,822 lb
Mid-PTO Availability	Not Published	Available (Mid-PTO kit)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	2,945 lb	3,050.6 lb

R3 Turf - Rear	Multi-Trac CS 44x18.00-20 NHS TL 4PR	Multi-Trac CS 44x18.00-20 NHS TL 4PR
R3 Turf - Front	Multi-Trac CS 27x10.50-15 NHS TL 4PR	Multi-Trac CS 27x10.50-15 NHS TL 4PR
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Xtra Grip 4.6 gal-24 NHS TL 6PR	Xtra Grip 17.5Lx24 NHS TL 6PR
R4 Industrial - Front	Trac Chief 12-16.5 NHS TL 6PR	Trac Chief 12-16.5 NHS TL 6PR
R1 Agricultural - Rear	Farm Specialist 13.6-26 NHS TL 6PR	Farm Specialist 13.6-26 NHS TL 6PR
R1 Agricultural - Front	Farm Specialist 9.5-16 NHS TL 6PR	Farm Specialist 9.5-16 NHS TL 6PR

Coolant Capacity	9 qt	6.9 qt
Crankcase Capacity	7.1 qt	6.8 qt
Fuel Tank Capacity	17.0 gal	17.0 gal
Front Axle Fluid Capacity	10.5 qt	10.5 qt
Transmission / Hydraulic System Capacity	9.2 gal	9.2 gal

Loader Lift Height	109.1 in	109.4 in
Loader Breakout Force	4,938 lb	5,316 lb
Quick Attach Loader System	TX55: Quick attach mechanism	TX57: Quick attachment (Skid/Euro type)
Loader Lift Capacity (Full Height)	2,478 lb	2,790 lb

Clutch	Dry single plate	Dry single plate
No. of Speeds	F16 x R16	F8 x R8
Transmission Type	Synchro-Shuttle	Synchro-shuttle
Max Travel Speed (Forward)	18.4 mph	18.6 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published

Brakes	Wet disc	Wet disc
Steering	Hydrostatic	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	76.2 in	76.2 in
Overall Width	63.8 in	63.8 in
Ground Clearance	13.8 in	13.8 in
Height to Top of ROPS	102.1 in	141.3 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	150.4 in	131.5 in
Overall Length with 3-Point Hitch	141.3 in	141.3 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T454 T554 Rural King RK55 Brush Screen Insert $249.99	TYM T494 / T574 Extended Brush Screen Insert $299.99 A must have when working with brush. TYM T494 / T574 Hydraulic Valve Cover $299.99 TYM T494 / T574 Rubber Hose Protector $47.99 TYM T494 / T574 HD Protection Package $1250.00 TYM T494 / T574 Fuel Tank Cover $214.99 TYM T494 / T574 Skid Plate only $714.99

TYM T554 vs TYM T574: Quick Answers

Which has more horsepower, the TYM T554 or the TYM T574?: The TYM T554 leads on engine hp at 55.9 hp hp, compared to 55 hp hp for the TYM T574.
Which has more PTO horsepower, the TYM T554 or the TYM T574?: The TYM T554 leads on pto hp at 45.6 hp hp, compared to 44.7 hp hp for the TYM T574.
Which is heavier, the TYM T554 or the TYM T574?: The TYM T554 leads on weight at 5,075 lb lb, compared to 5,007 lb lb for the TYM T574.
Which has more loader lift capacity, the TYM T554 or the TYM T574?: The TYM T574 leads on loader lift at 2,790 lb lb, compared to 2,478 lb lb for the TYM T554.
Which has more three-point hitch lift capacity, the TYM T554 or the TYM T574?: The TYM T574 leads on 3-pt lift (24 in) at 3,050.6 lb lb, compared to 2,945 lb lb for the TYM T554.
