Which has more horsepower, the TYM T554 or the TYM T754?

The TYM T754 leads on engine hp at 74 hp hp, compared to 55.9 hp hp for the TYM T554.

Which has more PTO horsepower, the TYM T554 or the TYM T754?

The TYM T754 leads on pto hp at 64.1 hp hp, compared to 45.6 hp hp for the TYM T554.

Which is heavier, the TYM T554 or the TYM T754?

The TYM T754 leads on weight at 7,904 lb lb, compared to 5,075 lb lb for the TYM T554.

Which has more loader lift capacity, the TYM T554 or the TYM T754?

The TYM T754 leads on loader lift at 3,325 lb lb, compared to 2,478 lb lb for the TYM T554.

Which has more three-point hitch lift capacity, the TYM T554 or the TYM T754?

The TYM T754 leads on 3-pt lift (24 in) at 3,418 lb lb, compared to 2,945 lb lb for the TYM T554.

TYM T554 vs TYM T754

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the TYM T754 leads 9 categories to 0. Machine pages: TYM T554 and TYM T754.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	TYM T554	TYM T754
Engine HP (hp)	55.9 hp	▲ 74 hp
PTO HP (hp)	45.6 hp	▲ 64.1 hp
Weight (lb)	5,075 lb	▲ 7,904 lb
Loader Lift (lb)	2,478 lb	▲ 3,325 lb
3-Pt Lift (24 in) (lb)	2,945 lb	▲ 3,418 lb
Lift Height (in)	109.1 in	▲ 133.8 in
Breakout Force (lbf)	4,938 lbf	▲ 5,485 lbf
Hydraulic Flow (gpm)	14.1 gpm	▲ 16.1 gpm
Travel Speed (mph)	18.4 mph	▲ 24.1 mph

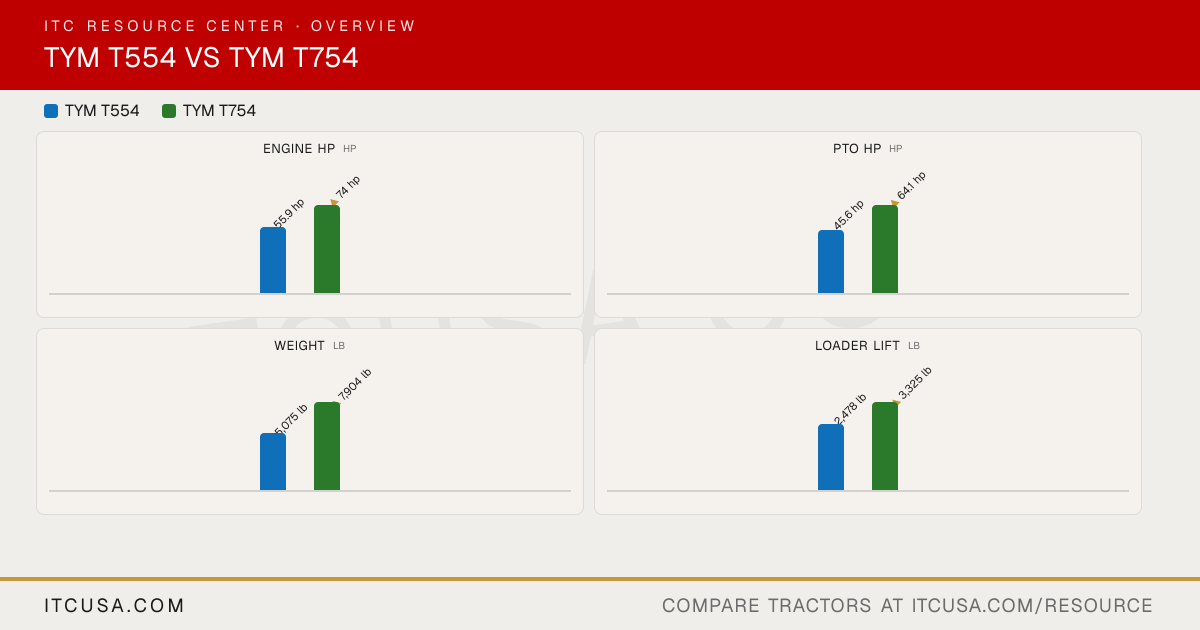

The headline numbers at a glance.

TYM T554TYM T754

Engine HPhp

55.9 hp

▲74 hp

PTO HPhp

45.6 hp

▲64.1 hp

Weightlb

5,075 lb

▲7,904 lb

Loader Liftlb

2,478 lb

▲3,325 lb

3-Pt Lift (24 in)lb

2,945 lb

▲3,418 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYMT554	TYMT754


PTO Power	45.6 hp	64.1 hp
Alternator	70 A, 12 V	95 A, 12 V
Air Cleaner	Dual dry	Dual dry
Engine Type	4-cylinder, turbocharged diesel	4-cylinder, turbocharged diesel
Fuel System	CRDI	CRDI
Displacement	127.6 in³	177 in³
No. of Cylinders	4	4
Rated Engine Speed	2800 rpm	2200 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	Yanmar	Deutz
Engine Power (Gross)	55.9 hp	74 hp
Engine Emissions Constraints	Not Published	Diesel Oxidation Catalyst (DOC)

Weight with ROPS and Loader	5,075 lb	Not Applicable
Weight with Cab and Loader	Not Applicable	7,904 lb

Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Dual gear pump	Dual gear pump
Steering Flow	4.6 gpm	5.8 gpm
Implement Flow	9.5 gpm	10.3 gpm
Total Hydraulic Flow	14.1 gpm	16.1 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	14.1 gpm	16.1 gpm
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	2	2

PTO Rear	540 rpm	540/750 rpm; 540/1,000 rpm (Opt)
PTO Type	Independent	Independent
Lift Control Type	Position/Draft	Position/Draft/Elec
Hitch Lift Capacity	3,314 lb	5,115 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category II
Hitch Lift Capacity (at 24”)	2,945 lb	3,418 lb

R3 Turf - Rear	Multi-Trac CS 44x18.00-20 NHS TL 4PR	Not Published
R3 Turf - Front	Multi-Trac CS 27x10.50-15 NHS TL 4PR	Not Published
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R4 Industrial
R4 Industrial - Rear	Xtra Grip 4.6 gal-24 NHS TL 6PR	Xtra Grip 18.4-24 NHS TL 8PR
R4 Industrial - Front	Trac Chief 12-16.5 NHS TL 6PR	Trac Chief 15-19.5 NHS TL 6PR
R1 Agricultural - Rear	Farm Specialist 13.6-26 NHS TL 6PR	FSTR 420/85R30 TL (16.9R30)
R1 Agricultural - Front	Farm Specialist 9.5-16 NHS TL 6PR	FSTR 280/85R24 TL (11R24)

Coolant Capacity	9 qt	10.6 qt
Crankcase Capacity	7.1 qt	8.5 qt
Fuel Tank Capacity	17.0 gal	23.8 gal
Front Axle Fluid Capacity	10.5 qt	17.3 qt
Transmission / Hydraulic System Capacity	9.2 gal	18.0 gal

Loader Lift Height	109.1 in	133.8 in
Loader Breakout Force	4,938 lb	5,485 lb
Quick Attach Loader System	TX55: Quick attach mechanism	TX75SL: Quick attachment (Skid/Euro type)
Loader Lift Capacity (Full Height)	2,478 lb	3,325 lb

Clutch	Dry single plate	M: Dry Single Plate; PS: Wet Multi Plate
No. of Speeds	F16 x R16	F16 x R16 (Creep interlock)
Transmission Type	Synchro-Shuttle	Synchro-shuttle
Max Travel Speed (Forward)	18.4 mph	24.1 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published

Brakes	Wet disc	Wet disc
Steering	Hydrostatic	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Suspension seat

Wheelbase	76.2 in	86.1 in
Overall Width	63.8 in	76.4 in
Ground Clearance	13.8 in	18.3 in
Height to Top of ROPS	102.1 in	Not Applicable
Height to Top of Cab Model	Not Applicable	103.3 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	150.4 in	162.8 in
Overall Length with 3-Point Hitch	141.3 in	155.7 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T454 T554 Rural King RK55 Brush Screen Insert $249.99	None tagged yet

TYM T554 vs TYM T754: Quick Answers

Which has more horsepower, the TYM T554 or the TYM T754?: The TYM T754 leads on engine hp at 74 hp hp, compared to 55.9 hp hp for the TYM T554.
Which has more PTO horsepower, the TYM T554 or the TYM T754?: The TYM T754 leads on pto hp at 64.1 hp hp, compared to 45.6 hp hp for the TYM T554.
Which is heavier, the TYM T554 or the TYM T754?: The TYM T754 leads on weight at 7,904 lb lb, compared to 5,075 lb lb for the TYM T554.
Which has more loader lift capacity, the TYM T554 or the TYM T754?: The TYM T754 leads on loader lift at 3,325 lb lb, compared to 2,478 lb lb for the TYM T554.
Which has more three-point hitch lift capacity, the TYM T554 or the TYM T754?: The TYM T754 leads on 3-pt lift (24 in) at 3,418 lb lb, compared to 2,945 lb lb for the TYM T554.
