Across 8 measurable specs, the Yanmar SM475 leads 8 categories to 0. Machine pages: Yanmar SM475 and Yanmar YM359.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Yanmar SM475 | Yanmar YM359 |
|---|
| Engine HP (hp) | ▲ 74 hp | 58.9 hp |
| PTO HP (hp) | ▲ 64.1 hp | 47 hp |
| Weight (lb) | ▲ 6,052 lb | 4,158 lb |
| Loader Lift (lb) | ▲ 3,325 lb | 2,500 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 3,418 lb | 2,750 lb |
| Lift Height (in) | ▲ 133.8 in | 113 in |
| Breakout Force (lbf) | ▲ 5,485 lbf | 3,047 lbf |
| Hydraulic Flow (gpm) | ▲ 16.1 gpm | 15.9 gpm |
| Travel Speed (mph) | n/a | 18.5 mph |

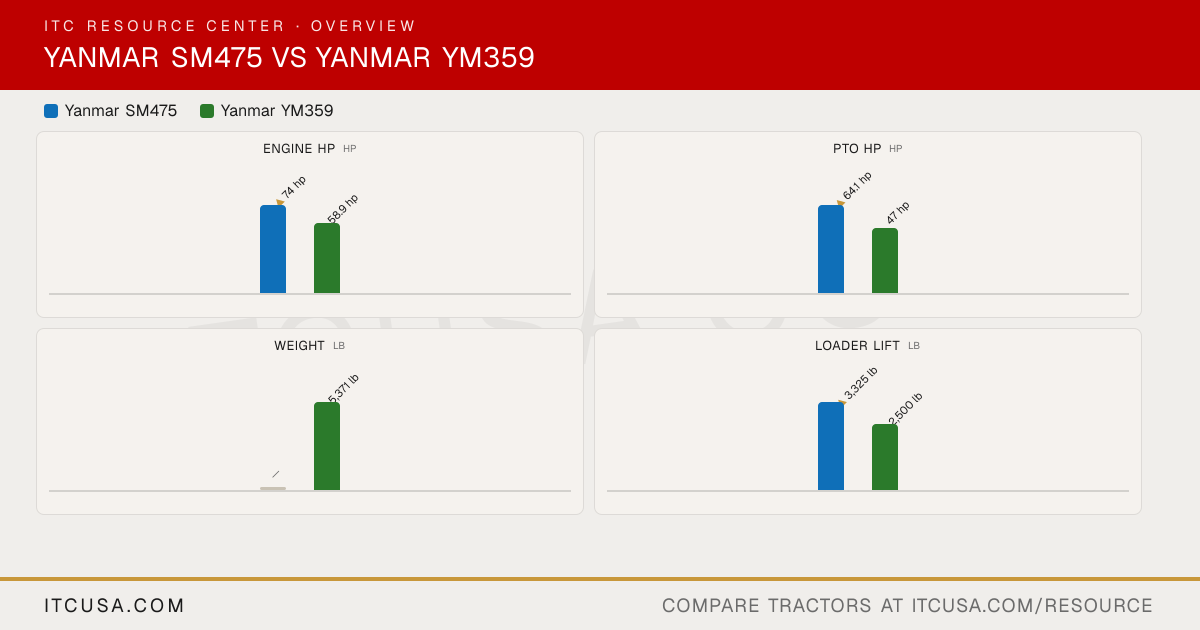

The headline numbers at a glance.
Yanmar SM475Yanmar YM359
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | YanmarSM475 | YanmarYM359 |
|---|
|
|---|
| Engine Manufacturer | Deutz | Yanmar |
|---|
| Engine Model | Not Published | 4TNV98C-XNITL |
|---|
| Engine Type | Not Published | 4-cylinder, liquid-cooled diesel |
|---|
| No. of Cylinders | Not Published | 4 |
|---|
| Displacement | Not Published | 202.4 in³ |
|---|
| Rated Engine Speed | 2200 rpm | 2500 rpm |
|---|
| Engine Power (Gross) | 74 hp | 58.9 hp |
|---|
| PTO Power | 64.1 hp | 47 hp |
|---|
| Engine Emissions Constraints | Not Published | Not Published |
|---|
| Cooling System Type | Not Published | Liquid cooled |
|---|
| Air Cleaner | Not Published | Dual air cleaner element |
|---|
| Fuel System | Not Published | Not Published |
|---|
| Alternator | Not Published | Not Published |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Implement Flow | 10.3 gpm | 10.2 gpm |
|---|
| Steering Flow | 5.8 gpm | 5.7 gpm |
|---|
| Total Hydraulic Flow | 16.1 gpm | 15.9 gpm |
|---|
| Overall Hydraulic Pump Flow | 16.1 gpm | 15.9 gpm |
|---|
| Hydraulic System Type | Not Published | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 2 | 1 |
|---|
| No. of Optional Remote Valves | Not Published | 2 |
|---|
|
|---|
| Fuel Tank Capacity | 23.8 gal | 13.2 gal |
|---|
| Coolant Capacity | Not Published | 8.1 qt |
|---|
| Crankcase Capacity | Not Published | 9.2 qt |
|---|
| Transmission / Hydraulic System Capacity | Not Published | 9.0 gal |
|---|
| Front Axle Fluid Capacity | Not Published | 2.4 gal |
|---|
|
|---|
| PTO Type | Independent | Independent |
|---|
| PTO Rear | 540 rpm | 540/540E rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II | Category I & II |
|---|
| Hitch Lift Capacity | 5,115 lb | 3,190 lb |
|---|
| Hitch Lift Capacity (at 24”) | 3,418 lb | 2,750 lb |
|---|
| Lift Control Type | Not Published | Not Published |
|---|
|
|---|
| Transmission Type | Power Shuttle | Synchronized shuttle shift |
|---|
| No. of Speeds | Not Published | F8-R8 |
|---|
| Max Travel Speed (Forward) | Not Published | 18.5 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Wet Multi Plate | Dry Single |
|---|
| Differential Lock & Limited Slip Options | Rear differential lock (foot pedal engagement) | Differential lock (foot pedal) |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Power steering with tilt | Power steering |
|---|
| Brakes | Not Published | Not Published |
|---|
| Seat Suspension & Adjustability | Mechanical suspension seat | Suspension seat |
|---|
| Front Axle Type | Selectable 2WD/4WD engagement | Selectable 2WD/4WD engagement |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Width | Not Published | 70.9 in (with R4 tires) |
|---|
| Wheelbase | Not Published | 77.5 in |
|---|
| Ground Clearance | 18.3 in | 15.5 in (with R3 tires) |
|---|
| Min. Turn Radius without Brakes | Not Published | 142 in |
|---|
| Height to Top of ROPS | Not Published | 98.0 in (with R4 tires) |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Published | Not Published |
|---|
| Overall Length | Not Published | 133.9 in (with 3-point hitch and R4 tires) |
|---|
|
|---|
| Tractor Weight (Base) | 6,052 lb | 4,158 lb |
|---|
| Weight with ROPS and Loader | Not Published | 5,371 lb (4,158 + 1,213, computed; YL605 loader) |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Not Published | R1 Agricultural; R3 Turf; R4 Industrial |
|---|
| R1 Agricultural - Front | Not Published | 210/95R16 (Radial) |
|---|
| R1 Agricultural - Rear | Not Published | 420/85R24 (Radial) |
|---|
| R3 Turf - Front | Not Published | 27.0 - 10.5 |
|---|
| R3 Turf - Rear | Not Published | 44 x 18 - 20.0 |
|---|
| R4 Industrial - Front | Not Published | 10.0 - 16.5 |
|---|
| R4 Industrial - Rear | Not Published | 16.9 - 24.0 |
|---|
|
|---|
| Quick Attach Loader System | Not Published | YL605: Skid steer quick attach |
|---|
| Loader Model | RL705 | YL605 |
|---|
| Loader Lift Height | RL705: 133.8 in (at pivot pin) | YL605: 113.0 in |
|---|
| Loader Lift Capacity (Full Height) | RL705: 3,325 lb (at pivot pin) | YL605: 2,500 lb (at pivot pin) |
|---|
| Loader Breakout Force | RL705: 5,485 lb (at pivot pin, ground level) | YL605: 3,047 lb |
|---|
|
|---|
| Warranty Length & Coverage | Basic 24 months or 2,000 hours; powertrain 10 years or 3,000 hours | Powertrain 10 years or 3,000 hours |
|---|
Yanmar SM475 vs Yanmar YM359: Quick Answers
- Which has more horsepower, the Yanmar SM475 or the Yanmar YM359?
- The Yanmar SM475 leads on engine hp at 74 hp hp, compared to 58.9 hp hp for the Yanmar YM359.
- Which has more PTO horsepower, the Yanmar SM475 or the Yanmar YM359?
- The Yanmar SM475 leads on pto hp at 64.1 hp hp, compared to 47 hp hp for the Yanmar YM359.
- Which is heavier, the Yanmar SM475 or the Yanmar YM359?
- The Yanmar SM475 leads on weight at 6,052 lb lb, compared to 4,158 lb lb for the Yanmar YM359.
- Which has more loader lift capacity, the Yanmar SM475 or the Yanmar YM359?
- The Yanmar SM475 leads on loader lift at 3,325 lb lb, compared to 2,500 lb lb for the Yanmar YM359.
- Which has more three-point hitch lift capacity, the Yanmar SM475 or the Yanmar YM359?
- The Yanmar SM475 leads on 3-pt lift (24 in) at 3,418 lb lb, compared to 2,750 lb lb for the Yanmar YM359.
