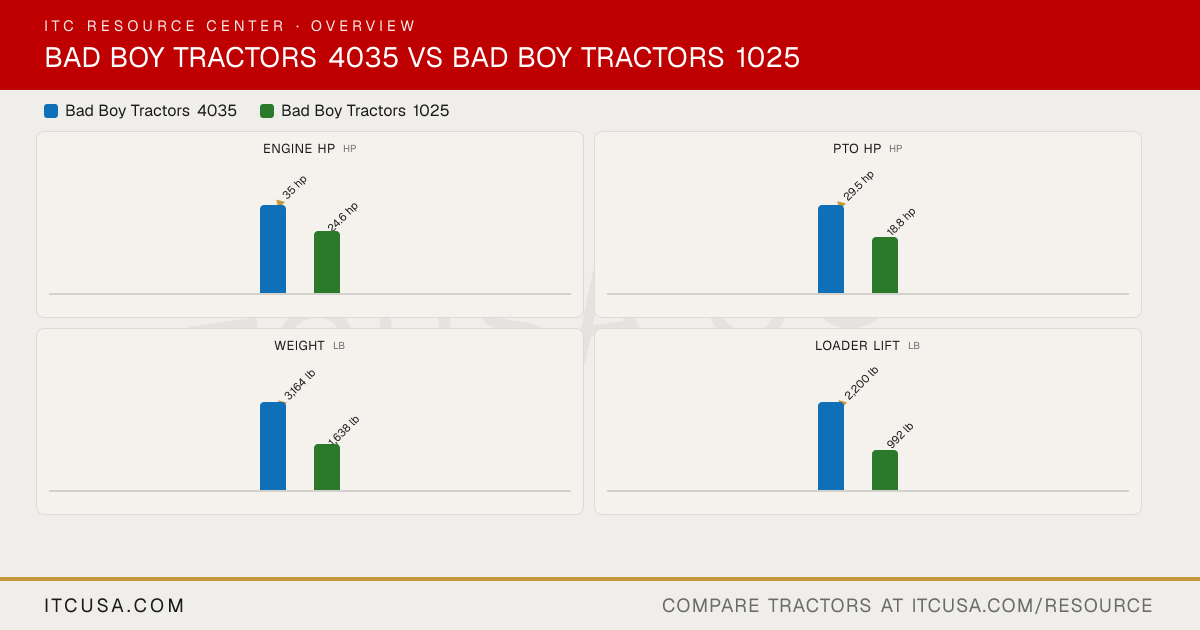

▶ EngineEngine Manufacturer TYM Yanmar Engine Model A1700N4-BUTR_4 3TNV80F Engine Type Vertical, 4-stroke, water-cooled diesel 3 Cylinder, Water-Cooled, Diesel No. of Cylinders 3 3 Displacement 104.5 in³ 77.3 in³ Rated Engine Speed 2600 rpm 3000 rpm Engine Power (Gross) 35 hp 24.6 hp PTO Power 29.5 hp 18.8 hp Engine Emissions Constraints EPA Final Tier4 Not Published Cooling System Type Water-cooled Water-cooled, forced circulation Air Cleaner Not Published Single element, dry Fuel System Not Published Indirect injection Alternator 50 A, 12 V 40 A, 12 V ▶ HydraulicsPump Type Not Published Gear pump Implement Flow 8.2 gpm 4.2 gpm Steering Flow 4.4 gpm 2.8 gpm Total Hydraulic Flow 12.6 gpm 7.0 gpm Overall Hydraulic Pump Flow 12.6 gpm 6.95 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Up to 2 Not Published ▶ Fluid CapacityFuel Tank Capacity 7.13 gal 5.8 gal Coolant Capacity 1.32 gal 0.95 gal Crankcase Capacity 1.14 gal 0.71 gal Transmission / Hydraulic System Capacity 9.77 gal 3.83 gal Front Axle Fluid Capacity 1.69 gal 0.85 gal ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Not Published Standard, 2,000 rpm Category, 3-Point Hitch Category I Category I (N) Hitch Lift Capacity 3,307 lb 1,323 lb Hitch Lift Capacity (at 24”) 2,425 lb 1,101 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Hydrostatic (HST), 3-range Hydrostatic (HST) with mechanical H/L constant-mesh range No. of Speeds 3 range (HST) 2 range (H/L) Max Travel Speed (Forward) 19.08 mph 10.5 mph (H range, Ag tires) Max Travel Speed (Reverse) 19.08 mph Not Published Clutch None (HST) None (HST) Differential Lock & Limited Slip Options Rear differential lock Rear differential lock (bevel gears with diff-lock) ▶ Chassis, Steering & ControlsFrame Type Not Published Sub-compact tractor; selectable 4WD Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet, multi-disc Wet disc, foot operated Seat Suspension & Adjustability Not Published Not Published Front Axle Type Selectable 4WD Selectable 4WD Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 56.7 in 45.8 in Wheelbase 65.7 in 57.5 in Ground Clearance 13.1 in 9.4 in Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 96.85 in 91.3 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 134.88 in 104 in ▶ WeightTractor Weight (Base) 3,164 lb 1,638 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 ag 8.0-16 / 12.4-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20 R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front 8.0-16 6-12 R1 Agricultural - Rear 12.4-24 9.5-16 R3 Turf - Front Not Published 20x8-10 R3 Turf - Rear Not Published 29x12.5-15 R4 Industrial - Front 28x8.50-15 23x8.5-12 R4 Industrial - Rear 43x16.00-20 12-16.5 ▶ Loader & AttachmentsQuick Attach Loader System SSQA Quick attach front loader Loader Model BBL400 BBL105 Loader Lift Height 104 in 75.5 in Loader Lift Capacity (Full Height) 2,200 lb (at pivot pin) 992 lb (at pivot pin) Loader Breakout Force 3,660 lb 1,531 lbf ▶ WarrantyWarranty Length & Coverage Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours Basic 24 months or 1,000 hours; powertrain 84 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours ▶ ITC Company AccessoriesAccessories that fit None tagged yet
