Bad Boy Tractors 1025 vs Bad Boy Tractors 4035

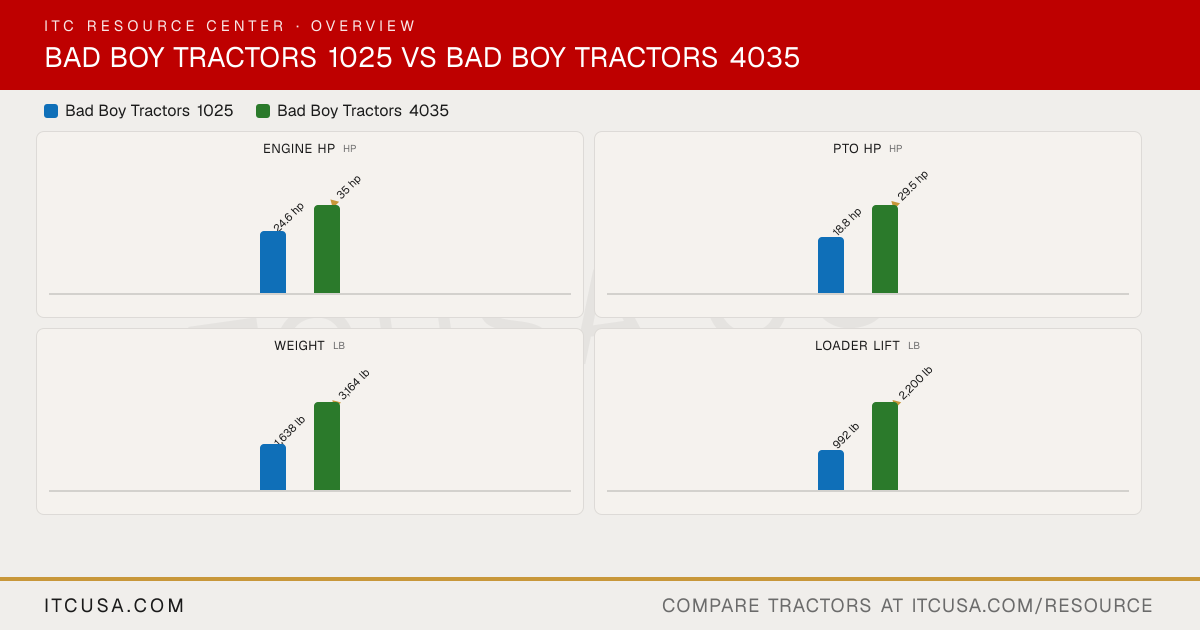

Across 9 measurable specs, the Bad Boy Tractors 4035 leads 9 categories to 0. Machine pages: Bad Boy Tractors 1025 and Bad Boy Tractors 4035.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1025	Bad Boy Tractors4035

▶Engine
Engine Manufacturer	Yanmar	TYM
Engine Model	3TNV80F	A1700N4-BUTR_4
Engine Type	3 Cylinder, Water-Cooled, Diesel	Vertical, 4-stroke, water-cooled diesel
No. of Cylinders	3	3
Displacement	77.3 in³	104.5 in³
Rated Engine Speed	3000 rpm	2600 rpm
Engine Power (Gross)	24.6 hp	35 hp
PTO Power	18.8 hp	29.5 hp
Engine Emissions Constraints	Not Published	EPA Final Tier4
Cooling System Type	Water-cooled, forced circulation	Water-cooled
Air Cleaner	Single element, dry	Not Published
Fuel System	Indirect injection	Not Published
Alternator	40 A, 12 V	50 A, 12 V
▶Hydraulics
Pump Type	Gear pump	Not Published
Implement Flow	4.2 gpm	8.2 gpm
Steering Flow	2.8 gpm	4.4 gpm
Total Hydraulic Flow	7.0 gpm	12.6 gpm
Overall Hydraulic Pump Flow	6.95 gpm	12.6 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Up to 2
▶Fluid Capacity
Fuel Tank Capacity	5.8 gal	7.13 gal
Coolant Capacity	0.95 gal	1.32 gal
Crankcase Capacity	0.71 gal	1.14 gal
Transmission / Hydraulic System Capacity	3.83 gal	9.77 gal
Front Axle Fluid Capacity	0.85 gal	1.69 gal
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard, 2,000 rpm	Not Published
Category, 3-Point Hitch	Category I (N)	Category I
Hitch Lift Capacity	1,323 lb	3,307 lb
Hitch Lift Capacity (at 24”)	1,101 lb	2,425 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST) with mechanical H/L constant-mesh range	Hydrostatic (HST), 3-range
No. of Speeds	2 range (H/L)	3 range (HST)
Max Travel Speed (Forward)	10.5 mph (H range, Ag tires)	19.08 mph
Max Travel Speed (Reverse)	Not Published	19.08 mph
Clutch	None (HST)	None (HST)
Differential Lock & Limited Slip Options	Rear differential lock (bevel gears with diff-lock)	Rear differential lock
▶Chassis, Steering & Controls
Frame Type	Sub-compact tractor; selectable 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc, foot operated	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	Selectable 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	45.8 in	56.7 in
Wheelbase	57.5 in	65.7 in
Ground Clearance	9.4 in	13.1 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	91.3 in	96.85 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	104 in	134.88 in
▶Weight
Tractor Weight (Base)	1,638 lb	3,164 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 ag 8.0-16 / 12.4-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20
R1 Agricultural - Front	6-12	8.0-16
R1 Agricultural - Rear	9.5-16	12.4-24
R3 Turf - Front	20x8-10	Not Published
R3 Turf - Rear	29x12.5-15	Not Published
R4 Industrial - Front	23x8.5-12	28x8.50-15
R4 Industrial - Rear	12-16.5	43x16.00-20
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	SSQA
Loader Model	BBL105	BBL400
Loader Lift Height	75.5 in	104 in
Loader Lift Capacity (Full Height)	992 lb (at pivot pin)	2,200 lb (at pivot pin)
Loader Breakout Force	1,531 lbf	3,660 lb
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 84 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00

Find a Bad Boy dealer near you→

Bad Boy Tractors 1025 vs Bad Boy Tractors 4035: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1025 or the Bad Boy Tractors 4035?

The Bad Boy Tractors 4035 leads on engine hp at 35 hp hp, compared to 24.6 hp hp for the Bad Boy Tractors 1025.

Which has more PTO horsepower, the Bad Boy Tractors 1025 or the Bad Boy Tractors 4035?

The Bad Boy Tractors 4035 leads on pto hp at 29.5 hp hp, compared to 18.8 hp hp for the Bad Boy Tractors 1025.

Which is heavier, the Bad Boy Tractors 1025 or the Bad Boy Tractors 4035?

The Bad Boy Tractors 4035 leads on weight at 3,164 lb lb, compared to 1,638 lb lb for the Bad Boy Tractors 1025.

Which has more loader lift capacity, the Bad Boy Tractors 1025 or the Bad Boy Tractors 4035?

The Bad Boy Tractors 4035 leads on loader lift at 2,200 lb lb, compared to 992 lb lb for the Bad Boy Tractors 1025.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 1025 or the Bad Boy Tractors 4035?

The Bad Boy Tractors 4035 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,101 lb lb for the Bad Boy Tractors 1025.
