Bad Boy Tractors 3026 vs Bad Boy Tractors 4035

Across 9 measurable specs, the Bad Boy Tractors 4035 leads 9 categories to 0. Machine pages: Bad Boy Tractors 3026 and Bad Boy Tractors 4035.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

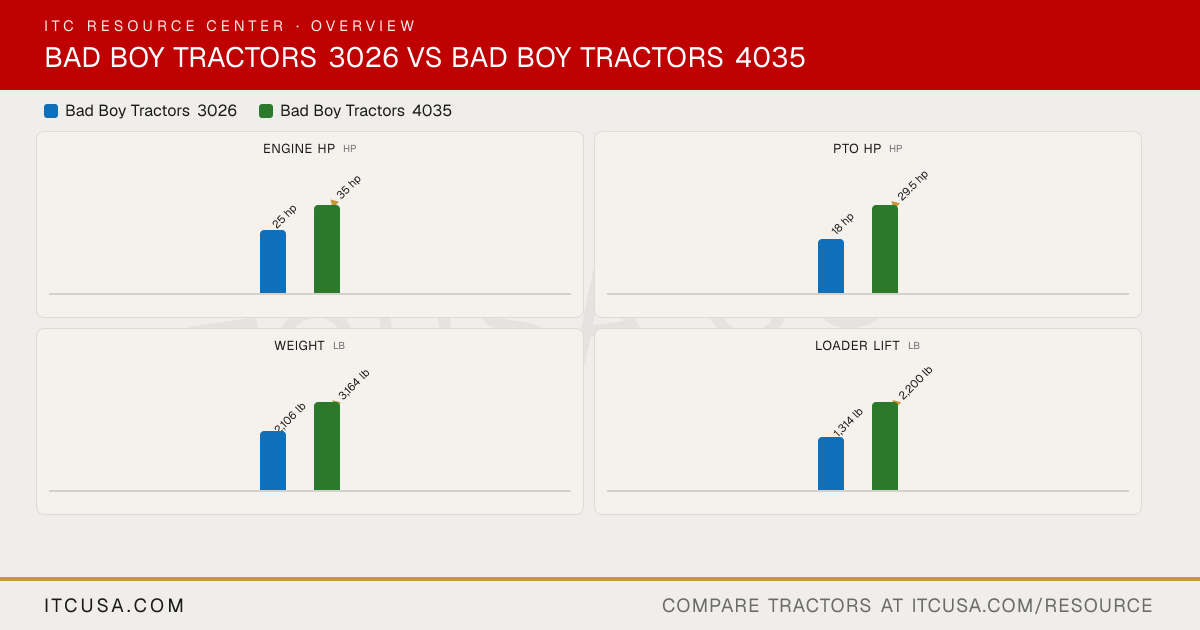

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	Bad Boy Tractors4035

▶Engine
Engine Manufacturer	TYM	TYM
Engine Model	A1100N2	A1700N4-BUTR_4
Engine Type	3 cylinder, water-cooled diesel, natural aspiration, swirl chamber	Vertical, 4-stroke, water-cooled diesel
No. of Cylinders	3	3
Displacement	71.7 in³	104.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	25 hp	35 hp
PTO Power	18 hp	29.5 hp
Engine Emissions Constraints	Tier 4	EPA Final Tier4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry element	Not Published
Fuel System	Indirect injection (swirl chamber)	Not Published
Alternator	50 A, 12 V	50 A, 12 V
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Not Published
Implement Flow	4.3 gpm	8.2 gpm
Steering Flow	3.1 gpm	4.4 gpm
Total Hydraulic Flow	7.4 gpm	12.6 gpm
Overall Hydraulic Pump Flow	7.7 gpm	12.6 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	Up to 2
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	7.13 gal
Coolant Capacity	1.21 gal	1.32 gal
Crankcase Capacity	0.79 gal	1.14 gal
Transmission / Hydraulic System Capacity	2.90 gal	9.77 gal
Front Axle Fluid Capacity	0.79 gal	1.69 gal
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Independent
PTO Rear	540 / 960 rpm	Not Published
Mid-PTO Availability	Optional, 2,500 rpm	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	3,307 lb
Hitch Lift Capacity (at 24”)	974 lb	2,425 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Hydrostatic (HST), 3-range
No. of Speeds	3 range (L/M/H)	3 range (HST)
Max Travel Speed (Forward)	14.8 mph	19.08 mph
Max Travel Speed (Reverse)	14.8 mph	19.08 mph
Clutch	Dry, single plate	None (HST)
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc	Wet, multi-disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Not Published
Front Axle Type	Selectable 4WD	Selectable 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	110 in	134.88 in
Overall Width	53.8 in	56.7 in
Wheelbase	65.7 in	65.7 in
Ground Clearance	16.4 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	91.4 in	96.85 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,106 lb	3,164 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 front / 14x17.5 rear)	R1 ag 8.0-16 / 12.4-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20
R1 Agricultural - Front	7-16 6PR	8.0-16
R1 Agricultural - Rear	11.2-20	12.4-24
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	25x8.50-14	28x8.50-15
R4 Industrial - Rear	14x17.5	43x16.00-20
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	SSQA
Loader Model	BBL300	BBL400
Loader Lift Height	86 in	104 in
Loader Lift Capacity (Full Height)	1,314 lb	2,200 lb (at pivot pin)
Loader Breakout Force	1,960 lbf	3,660 lb
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00

Find a Bad Boy dealer near you→

Bad Boy Tractors 3026 vs Bad Boy Tractors 4035: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the Bad Boy Tractors 4035?

The Bad Boy Tractors 4035 leads on engine hp at 35 hp hp, compared to 25 hp hp for the Bad Boy Tractors 3026.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the Bad Boy Tractors 4035?

The Bad Boy Tractors 4035 leads on pto hp at 29.5 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the Bad Boy Tractors 4035?

The Bad Boy Tractors 4035 leads on weight at 3,164 lb lb, compared to 2,106 lb lb for the Bad Boy Tractors 3026.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the Bad Boy Tractors 4035?

The Bad Boy Tractors 4035 leads on loader lift at 2,200 lb lb, compared to 1,314 lb lb for the Bad Boy Tractors 3026.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Bad Boy Tractors 4035?

The Bad Boy Tractors 4035 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
