Which has more horsepower, the Bad Boy Tractors 4035 or the Bad Boy Tractors 4035 Cab?

The Bad Boy Tractors 4035 leads on engine hp at 34.9 hp hp, compared to 24.5 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 4035 or the Bad Boy Tractors 4035 Cab?

The Bad Boy Tractors 4035 Cab leads on pto hp at 39.6 hp hp, compared to 30 hp hp for the Bad Boy Tractors 4035.

Which is heavier, the Bad Boy Tractors 4035 or the Bad Boy Tractors 4035 Cab?

They are effectively tied: both machines are rated at 3,496.5 lb lb for weight.

Which has more loader lift capacity, the Bad Boy Tractors 4035 or the Bad Boy Tractors 4035 Cab?

They are effectively tied: both machines are rated at 2,200 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the Bad Boy Tractors 4035 Cab?

They are effectively tied: both machines are rated at 2,425 lb lb for 3-pt lift (24 in).

Bad Boy Tractors 4035 vs Bad Boy Tractors 4035 Cab

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Bad Boy Tractors 4035 leads 2 categories to 1 (6 tied). Machine pages: Bad Boy Tractors 4035 and Bad Boy Tractors 4035 Cab.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 4035	Bad Boy Tractors 4035 Cab
Engine HP (hp)	▲ 34.9 hp	24.5 hp
PTO HP (hp)	30 hp	▲ 39.6 hp
Weight (lb)	3,496.5 lb	3,496.5 lb
Loader Lift (lb)	2,200 lb	2,200 lb
3-Pt Lift (24 in) (lb)	2,425 lb	2,425 lb
Lift Height (in)	104 in	104 in
Breakout Force (lbf)	3,660 lbf	3,660 lbf
Hydraulic Flow (gpm)	12.6 gpm	12.6 gpm
Travel Speed (mph)	▲ 19.1 mph	18.2 mph

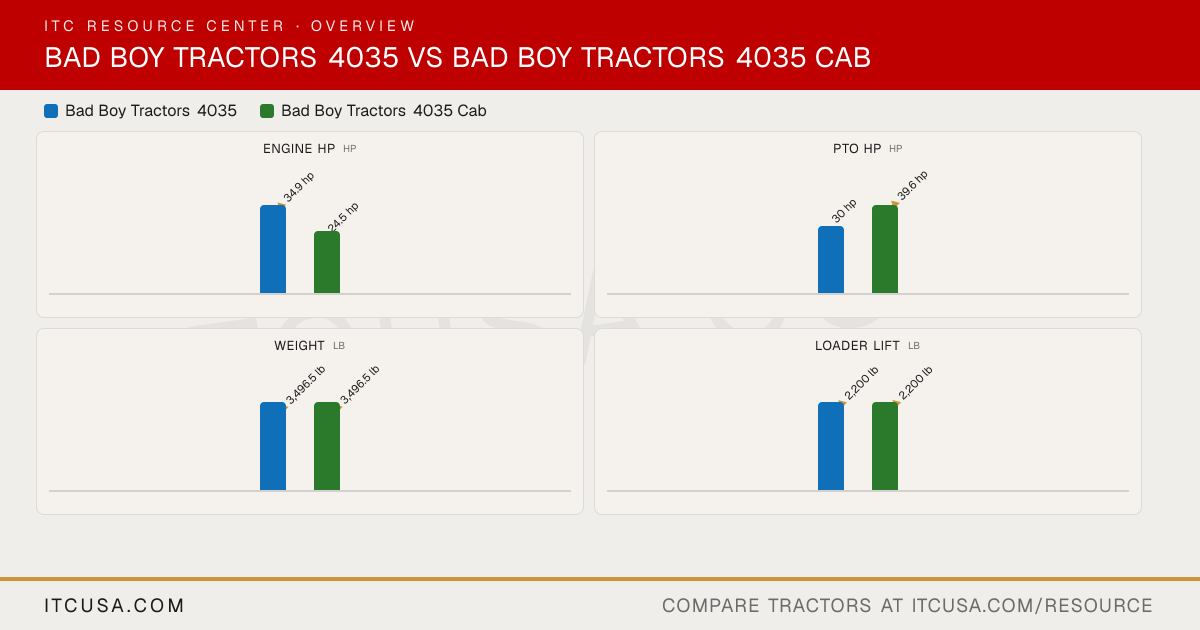

The headline numbers at a glance.

Bad Boy Tractors 4035Bad Boy Tractors 4035 Cab

Engine HPhp

▲34.9 hp

24.5 hp

PTO HPhp

30 hp

▲39.6 hp

Weightlb

▲3,496.5 lb

Loader Liftlb

▲2,200 lb

3-Pt Lift (24 in)lb

▲2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035	Bad Boy Tractors4035 Cab


PTO Power	30 hp	39.6 hp
Alternator	50 A, 12 V	50 A, 12 V
Air Cleaner	Not Published	Not Published
Engine Type	3 Cylinder, Water-Cooled, Diesel	Vertical, water cooled 4-cycle, diesel engine
Fuel System	Diesel fuel	Diesel fuel
Displacement	104.7 in³	104.6 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2100 rpm
Cooling System Type	Water cooled	Pressurized Radiator
Engine Manufacturer	A1700N4-BUTC_4	Not specified in source
Engine Power (Gross)	34.9 hp	24.5 hp
Engine Emissions Constraints	EPA Final Tier4	Not Published

Tractor Weight (Base)	3,496.5 lb (3,497 lbs) for ROPS MODEL; 3,728 lb (3,728 lbs) for CABIN MODEL	4025H: 3,496.5 lb (3,497 lbs), ROPS: 3,496.5 lb (3,497 lbs), Cabin: 3,728 lb (3,728 lbs)
Weight with ROPS and Loader	3163 lbs	Not Applicable
Weight with Cab and Loader	3,728 lbs	3,551 lb (tractor only)

Warranty Length & Coverage	6-year powertrain warranty	6-year powertrain warranty

Pump Type	Not Published	Not Published
Steering Flow	4.4 gpm	4.4 gpm
Implement Flow	8.2 gpm	8.2 gpm
Total Hydraulic Flow	12.6 gpm (4.4+8.2)	12.6 gpm (4.4+8.2)
Hydraulic System Type	Open Center	Not Published
System Operating Pressure	180 - 407.9 lbf/cm² for control valve	396.8 lbf/cm² (control valve), 286.6 lbf/cm² (PST valve relief)
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	12.6 gpm
No. of Optional Remote Valves	Optional (up to 2)	Optional (Up to 2)
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 RPM	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position Control	Position control
Hitch Lift Capacity	3,306.9 lb	3,306.9 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Cat 1	Cat 1
Hitch Lift Capacity (at 24”)	2,425 lb	2,425 lb

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Std (manual): 8.0-16 / 12.4-24; IND (website): 28X8.50-15 / 43X16.00-20	R1 (manual): 7-16 / 11.2-24; R4 (website): 28X8.50-15 / 43X16.00-20
R4 Industrial - Rear	43X16.00-20	43X16.00-20
R4 Industrial - Front	28X8.50-15	28X8.50-15
R1 Agricultural - Rear	12.4-24 6PR	11.2-24 8PR
R1 Agricultural - Front	8.0-16 4PR	7-16 6PR

Coolant Capacity	1.32 gal	5.0 ℓ (1.32 u.s. gal)
Crankcase Capacity	1.14 gal	4.3 ℓ (1.14 u.s. gal)
Fuel Tank Capacity	7.13 gal	27 ℓ (7.13 u.s. gal)
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	9.77 u.s. gal (37 ℓ) HST	HST: 9.77 gal

Loader Lift Height	104 in	104 in
Loader Breakout Force	3,660 lb	3,660 lb
Quick Attach Loader System	SSQA	SSQA
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	2,200 lb (at pivot pin)

Clutch	None (HST)	None (HST)
No. of Speeds	3 Range	3 Range
Transmission Type	HST (3-range)	HST (Hydrostatic Transmission) with range shift
Max Travel Speed (Forward)	19.08 mph (range C)	18.21 mph (range C)
Max Travel Speed (Reverse)	19.08 mph (range C)	18.21 mph
Differential Lock & Limited Slip Options	Differential lock	Differential lock

Brakes	Wet multi-disc	Wet multi-disc
Steering	Fully hydraulic power steering	Fully hydraulic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Cast Iron	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	65.7 in	65.79 in
Overall Width	56.7 in	ROPS: 57.13 in, Cabin: 55.63 in
Overall Length	134.88 in.	134.88 in
Ground Clearance	15 in	ROPS: 13.19 in, Cabin: 13.50 in
Height to Top of ROPS	96.85 in	ROPS: 104.06 in, Cabin: 88.9 in
Height to Top of Cab Model	Not Applicable	86 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	134.88 in	134.88 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Bad Boy Tractors 4035 vs Bad Boy Tractors 4035 Cab: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 or the Bad Boy Tractors 4035 Cab?: The Bad Boy Tractors 4035 leads on engine hp at 34.9 hp hp, compared to 24.5 hp hp for the Bad Boy Tractors 4035 Cab.
Which has more PTO horsepower, the Bad Boy Tractors 4035 or the Bad Boy Tractors 4035 Cab?: The Bad Boy Tractors 4035 Cab leads on pto hp at 39.6 hp hp, compared to 30 hp hp for the Bad Boy Tractors 4035.
Which is heavier, the Bad Boy Tractors 4035 or the Bad Boy Tractors 4035 Cab?: They are effectively tied: both machines are rated at 3,496.5 lb lb for weight.
Which has more loader lift capacity, the Bad Boy Tractors 4035 or the Bad Boy Tractors 4035 Cab?: They are effectively tied: both machines are rated at 2,200 lb lb for loader lift.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the Bad Boy Tractors 4035 Cab?: They are effectively tied: both machines are rated at 2,425 lb lb for 3-pt lift (24 in).
