Which has more horsepower, the Bad Boy Tractors 4025 or the Bad Boy Tractors 4035 Cab?

They are effectively tied: both machines are rated at 24.5 hp hp for engine hp.

Which is heavier, the Bad Boy Tractors 4025 or the Bad Boy Tractors 4035 Cab?

They are effectively tied: both machines are rated at 3,496.5 lb lb for weight.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the Bad Boy Tractors 4035 Cab?

They are effectively tied: both machines are rated at 2,200 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the Bad Boy Tractors 4035 Cab?

They are effectively tied: both machines are rated at 2,425 lb lb for 3-pt lift (24 in).

Bad Boy Tractors 4025 vs Bad Boy Tractors 4035 Cab

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Bad Boy Tractors 4035 Cab leads 1 categories to 0 (6 tied). Machine pages: Bad Boy Tractors 4025 and Bad Boy Tractors 4035 Cab.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 4025	Bad Boy Tractors 4035 Cab
Engine HP (hp)	24.5 hp	24.5 hp
PTO HP (hp)	—	39.6 hp
Weight (lb)	3,496.5 lb	3,496.5 lb
Loader Lift (lb)	2,200 lb	2,200 lb
3-Pt Lift (24 in) (lb)	2,425 lb	2,425 lb
Lift Height (in)	104 in	104 in
Breakout Force (lbf)	3,660 lbf	3,660 lbf
Hydraulic Flow (gpm)	11.5 gpm	▲ 12.6 gpm
Travel Speed (mph)	—	18.2 mph

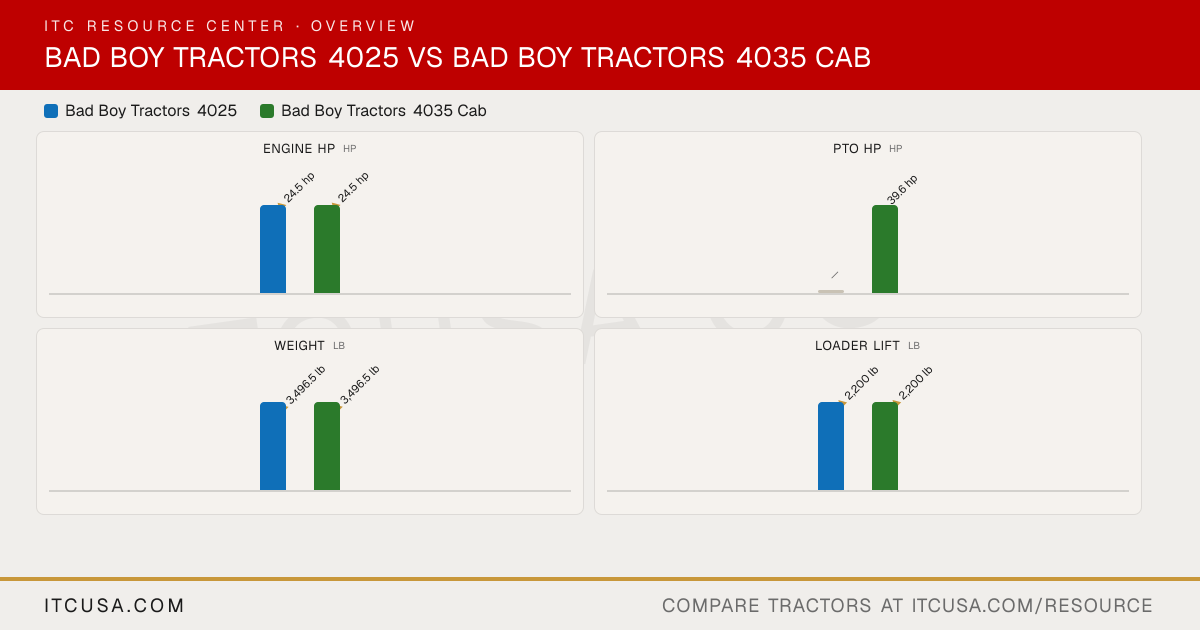

The headline numbers at a glance.

Bad Boy Tractors 4025Bad Boy Tractors 4035 Cab

Engine HPhp

▲24.5 hp

PTO HPhp

—

39.6 hp

Weightlb

▲3,496.5 lb

Loader Liftlb

▲2,200 lb

3-Pt Lift (24 in)lb

▲2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	Bad Boy Tractors4035 Cab


PTO Power	540 rpm, 1st stage	39.6 hp
Alternator	50 A, 12 V	50 A, 12 V
Air Cleaner	Present (standard equipment)	Not Published
Engine Type	Vertical, water cooled 4-cycle, diesel engine	Vertical, water cooled 4-cycle, diesel engine
Fuel System	Diesel fuel system with fuel injection pump	Diesel fuel
Displacement	104.6 in³	104.6 in³
No. of Cylinders	3	3
Rated Engine Speed	2100 rpm	2100 rpm
Cooling System Type	Pressurized Radiator	Pressurized Radiator
Engine Manufacturer	A1700N6, A1700N5, A1700N4	Not specified in source
Engine Power (Gross)	24.5 hp	24.5 hp
Engine Emissions Constraints	Not Published	Not Published

Tractor Weight (Base)	3,496.5 lb (3,497 lbs), 3,728 lb (3,728 lbs)	4025H: 3,496.5 lb (3,497 lbs), ROPS: 3,496.5 lb (3,497 lbs), Cabin: 3,728 lb (3,728 lbs)
Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Published	3,551 lb (tractor only)

Warranty Length & Coverage	6-year powertrain warranty	6-year powertrain warranty

Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Not Published
Steering Flow	4.0 gpm	4.4 gpm
Implement Flow	7.5 gpm	8.2 gpm
Total Hydraulic Flow	11.5 gpm (4.0 + 7.5)	12.6 gpm (4.4+8.2)
Hydraulic System Type	Not Published	Not Published
System Operating Pressure	463 lbf/cm² maximum	396.8 lbf/cm² (control valve), 286.6 lbf/cm² (PST valve relief)
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	11.5 gpm	12.6 gpm
No. of Optional Remote Valves	Optional (Up to 2)	Optional (Up to 2)
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control type	Position control
Hitch Lift Capacity	2,425 lb @ 24 in behind lift point	3,306.9 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Cat 1
Hitch Lift Capacity (at 24”)	2,425 lb @ 24 in behind lift point	2,425 lb

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	OEM website lists IND tires 25X8.50-14 / 15-19.5; Operator Manual spec based on 8.0-16 / 12.4-24	R1 (manual): 7-16 / 11.2-24; R4 (website): 28X8.50-15 / 43X16.00-20
R4 Industrial - Rear	15-19.5	43X16.00-20
R4 Industrial - Front	25X8.50-14	28X8.50-15
R1 Agricultural - Rear	12.4-24 6PR	11.2-24 8PR
R1 Agricultural - Front	8.0-16 4PR	7-16 6PR

Coolant Capacity	5.0 ℓ (1.32 u.s. gal)	5.0 ℓ (1.32 u.s. gal)
Crankcase Capacity	4.3 ℓ (1.14 u.s. gal)	4.3 ℓ (1.14 u.s. gal)
Fuel Tank Capacity	27 ℓ (7.13 u.s. gal)	27 ℓ (7.13 u.s. gal)
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	HST: 9.77 gal	HST: 9.77 gal

Loader Lift Height	104 in	104 in
Loader Breakout Force	3,660 lb	3,660 lb
Quick Attach Loader System	SSQA	SSQA
Loader Lift Capacity (Full Height)	2,200 lb (pivot pin)	2,200 lb (at pivot pin)

Clutch	None (HST)	None (HST)
No. of Speeds	3 Range	3 Range
Transmission Type	HST (Hydrostatic Transmission) with shuttle type	HST (Hydrostatic Transmission) with range shift
Max Travel Speed (Forward)	Not Published	18.21 mph (range C)
Max Travel Speed (Reverse)	Not Published	18.21 mph
Differential Lock & Limited Slip Options	Differential lock	Differential lock

Brakes	Wet, Multi-Disc	Wet multi-disc
Steering	Hydrostatic power steering	Fully hydraulic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	65.8 in (65.79 in.)	65.79 in
Overall Width	57.1 in (57.13 in.) [ROPS Model], 55.6 in (55.63 in.) [Cabin Model]	ROPS: 57.13 in, Cabin: 55.63 in
Overall Length	134.9 in (134.88 in.)	134.88 in
Ground Clearance	13.2 in (13.19 in.) [ROPS Model], 13.5 in (13.50 in.) [Cabin Model]	ROPS: 13.19 in, Cabin: 13.50 in
Height to Top of ROPS	104.1 in (104.06 in.) [ROPS Model], 88.9 in (88.9 in.) [Cabin Model]	ROPS: 104.06 in, Cabin: 88.9 in
Height to Top of Cab Model	Not Published	86 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	134.88 in	134.88 in
