Bad Boy Tractors 3026 vs Bad Boy Tractors 4025

Across 8 measurable specs, the Bad Boy Tractors 4025 leads 7 categories to 0 (1 tied). Machine pages: Bad Boy Tractors 3026 and Bad Boy Tractors 4025.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

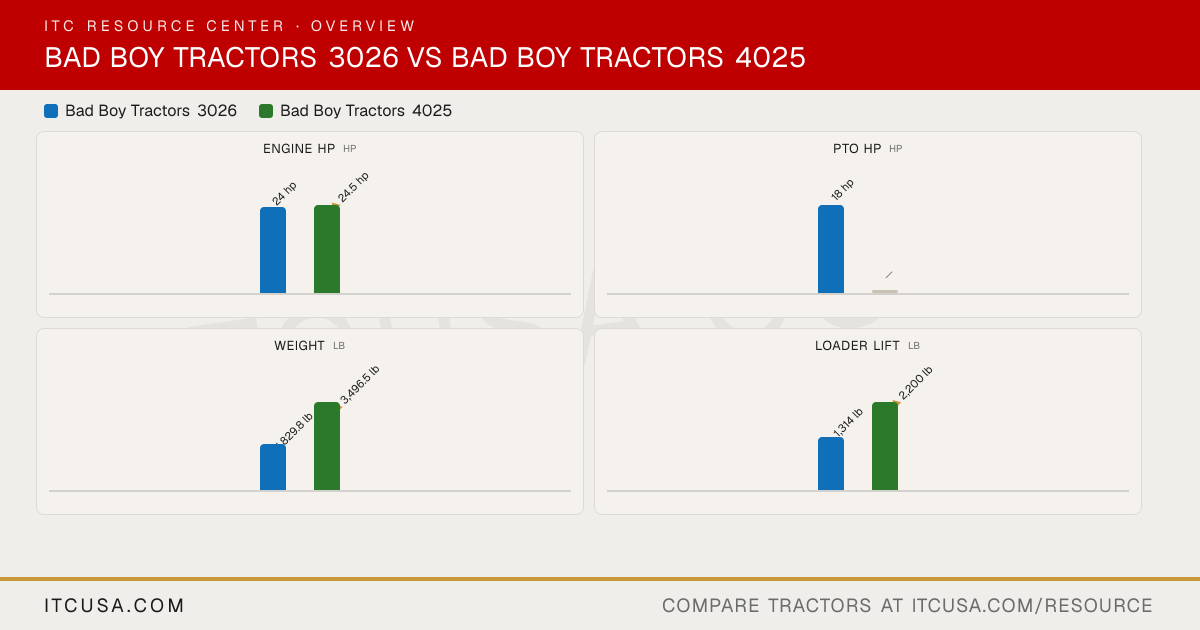

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	Bad Boy Tractors4025

▶Engine
Engine Manufacturer	TYM	TYM
Engine Model	A1100N2	A1700N6-BUTR_3
Engine Type	3 cylinder, water-cooled diesel, natural aspiration, swirl chamber	Vertical, 4-stroke, water-cooled diesel
No. of Cylinders	3	3
Displacement	71.7 in³	104.5 in³
Rated Engine Speed	2600 rpm	2100 rpm
Engine Power (Gross)	25 hp	25 hp
PTO Power	18 hp	19.1 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry element	Dry
Fuel System	Indirect injection (swirl chamber)	Not Published
Alternator	50 A, 12 V	50 A, 12 V
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)
Implement Flow	4.3 gpm	7.5 gpm
Steering Flow	3.1 gpm	4 gpm
Total Hydraulic Flow	7.4 gpm	11.5 gpm
Overall Hydraulic Pump Flow	7.7 gpm	11.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	Up to 2
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	7.13 gal
Coolant Capacity	1.21 gal	1.32 gal
Crankcase Capacity	0.79 gal	1.14 gal
Transmission / Hydraulic System Capacity	2.90 gal	9.77 gal
Front Axle Fluid Capacity	0.79 gal	Not Published
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Independent
PTO Rear	540 / 960 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	3,307 lb
Hitch Lift Capacity (at 24”)	974 lb	2,425 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Hydrostatic (HST)
No. of Speeds	3 range (L/M/H)	3 range (A/B/C)
Max Travel Speed (Forward)	14.8 mph	Not Published
Max Travel Speed (Reverse)	14.8 mph	Not Published
Clutch	Dry, single plate	None (HST)
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Heavy-duty steel frame with cast iron axles
Steering	Hydrostatic power steering	Fully hydraulic power steering
Brakes	Wet disc	Wet multi-disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Not Published
Front Axle Type	Selectable 4WD	Selectable 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	53.8 in	56.7 in
Wheelbase	65.7 in	65.7 in
Ground Clearance	16.4 in	13.1 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	91.4 in	104.06 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	110 in	134.88 in
▶Weight
Tractor Weight (Base)	2,106 lb	2,970 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 front / 14x17.5 rear)	R4 Industrial (25x8.50-14 / 15-19.5)
R1 Agricultural - Front	7-16 6PR	8.0-16
R1 Agricultural - Rear	11.2-20	12.4-24
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	14x17.5	15-19.5
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Quick attach front loader
Loader Model	BBL300	BBL400
Loader Lift Height	86 in	104 in
Loader Lift Capacity (Full Height)	1,314 lb (at pivot pin)	2,200 lb (at pivot pin)
Loader Breakout Force	1,960 lbf	3,660 lbf
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00

Find a Bad Boy dealer near you→

Bad Boy Tractors 3026 vs Bad Boy Tractors 4025: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the Bad Boy Tractors 4025?

They are effectively tied: both machines are rated at 25 hp hp for engine hp.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the Bad Boy Tractors 4025?

The Bad Boy Tractors 4025 leads on pto hp at 19.1 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the Bad Boy Tractors 4025?

The Bad Boy Tractors 4025 leads on weight at 2,970 lb lb, compared to 2,106 lb lb for the Bad Boy Tractors 3026.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the Bad Boy Tractors 4025?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 1,314 lb lb for the Bad Boy Tractors 3026.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Bad Boy Tractors 4025?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
