Bad Boy Tractors 3026 vs Bobcat CT1021

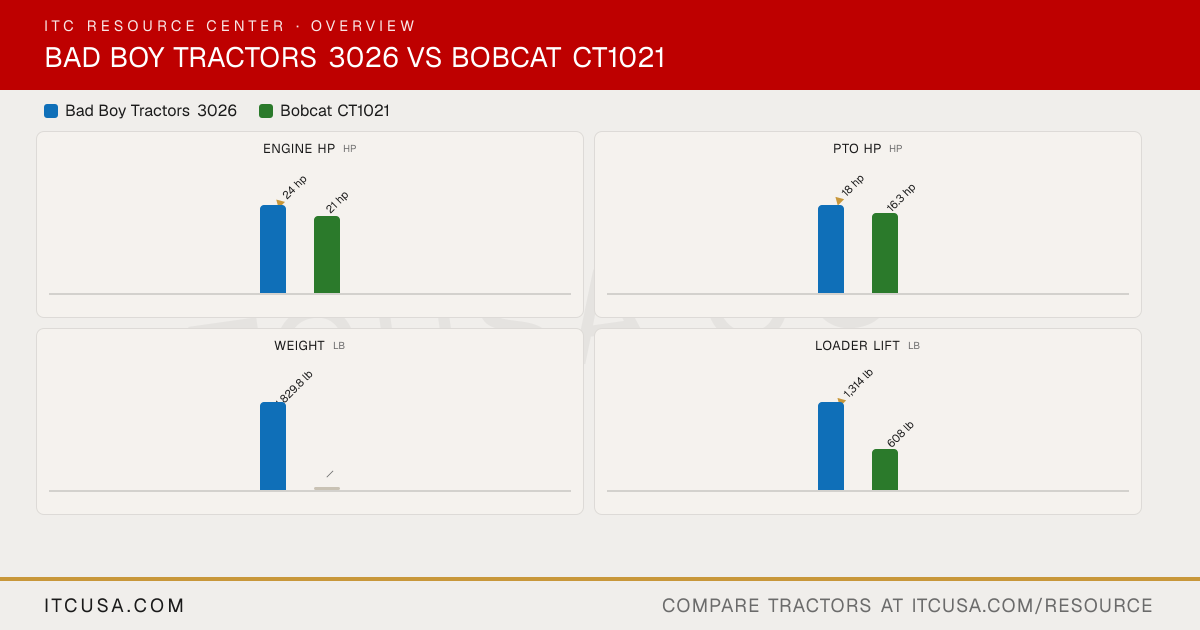

Across 9 measurable specs, the Bad Boy Tractors 3026 leads 9 categories to 0. Machine pages: Bad Boy Tractors 3026 and Bobcat CT1021.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	BobcatCT1021

▶Engine
Engine Manufacturer	TYM	Daedong
Engine Model	A1100N2	3C100LWH-U2
Engine Type	3 cylinder, water-cooled diesel, natural aspiration, swirl chamber	Diesel
No. of Cylinders	3	3
Displacement	71.7 in³	61.5 in³
Rated Engine Speed	2600 rpm	3200 rpm
Engine Power (Gross)	25 hp	21 hp
PTO Power	18 hp	16.3 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Not Published
Air Cleaner	Dry element	Not Published
Fuel System	Indirect injection (swirl chamber)	Not Published
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Not Published
Implement Flow	4.3 gpm	Not Published
Steering Flow	3.1 gpm	Not Published
Total Hydraulic Flow	7.4 gpm	7.2 gpm
Overall Hydraulic Pump Flow	7.7 gpm	7.2 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	None (rear hydraulics optional)
No. of Optional Remote Valves	1	1 pair
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	6.7 gal
Coolant Capacity	1.21 gal	Not Published
Crankcase Capacity	0.79 gal	Not Published
Transmission / Hydraulic System Capacity	2.90 gal	Not Published
Front Axle Fluid Capacity	0.79 gal	Not Published
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Independent
PTO Rear	540 / 960 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Standard: 2200 rpm
Category, 3-Point Hitch	Category I	Category I Limited
Hitch Lift Capacity	1,433 lb	Not Published
Hitch Lift Capacity (at 24”)	974 lb	700 lb
Lift Control Type	Position control	Hydraulic Position Control System
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	2-Range HST
No. of Speeds	3 range (L/M/H)	Infinite forward and reverse (2-range)
Max Travel Speed (Forward)	14.8 mph	11.1 mph
Max Travel Speed (Reverse)	14.8 mph	7.6 mph
Clutch	Dry, single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc	Wet multi-disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Adjustable seat (standard)
Front Axle Type	Selectable 4WD	Four-wheel drive (standard)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	53.8 in	45.7 in (with industrial tires)
Wheelbase	65.7 in	55.1 in
Ground Clearance	16.4 in	6.3 in
Min. Turn Radius without Brakes	Not Published	8.4 ft
Height to Top of ROPS	91.4 in	87.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	110 in	99.3 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	2,106 lb	1,521 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 front / 14x17.5 rear)	Turf, Industrial, Agricultural
R1 Agricultural - Front	7-16 6PR	18x8.5-10
R1 Agricultural - Rear	11.2-20	26x12.00-12
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	25x8.50-14	18x8.5-10
R4 Industrial - Rear	14x17.5	26x12.00-12
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Standard quick attach mounting system
Loader Model	BBL300	FL6
Loader Lift Height	86 in	71.9 in (to pivot pin)
Loader Lift Capacity (Full Height)	1,314 lb (at pivot pin)	608 lb
Loader Breakout Force	1,960 lbf	1,554 lb (at pivot pin)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Basic 24 months or 1,500 hours, on all components; powertrain 48 months, unlimited hours, for consumer purchasers, or 36 months or 2,000 hours for commercial purchasers
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a dealer near you→

Bad Boy Tractors 3026 vs Bobcat CT1021: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the Bobcat CT1021?

The Bad Boy Tractors 3026 leads on engine hp at 25 hp hp, compared to 21 hp hp for the Bobcat CT1021.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the Bobcat CT1021?

The Bad Boy Tractors 3026 leads on pto hp at 18 hp hp, compared to 16.3 hp hp for the Bobcat CT1021.

Which is heavier, the Bad Boy Tractors 3026 or the Bobcat CT1021?

The Bad Boy Tractors 3026 leads on weight at 2,106 lb lb, compared to 1,521 lb lb for the Bobcat CT1021.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the Bobcat CT1021?

The Bad Boy Tractors 3026 leads on loader lift at 1,314 lb lb, compared to 608 lb lb for the Bobcat CT1021.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Bobcat CT1021?

The Bad Boy Tractors 3026 leads on 3-pt lift (24 in) at 974 lb lb, compared to 700 lb lb for the Bobcat CT1021.
