24 months / 1,500 hours (whichever occurs first) - covers defects in material and workmanship
Pump Type
Single Gear Pump with Flow Divider
Gear
Steering Flow
2.11 gpm
N/A
Implement Flow
4.17 (15.8)
6.5 gpm (24.5 Lpm)
Total Hydraulic Flow
6.97 (26.4)
7.2 gpm
Hydraulic System Type
Not Published
Open Center
Rear Remote Hydraulic Flow
Not Published
NOT FOUND
Overall Hydraulic Pump Flow
6.97 gpm (max total flow)
7.2 gpm
No. of Optional Remote Valves
Up to 1
1 Pair
No. of Standard Remote Valves
Not Published
1
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Independent
Lift Control Type
Position
Hydraulic Position Control System
Hitch Lift Capacity
1,100 lb
700 lb.
Mid-PTO Availability
Optional (2,500 rpm)
Standard: 2200 rpm
Category, 3-Point Hitch
Category I (N)
Category 1 Limited
Hitch Lift Capacity (at 24”)
679 lb
700 lb
R3 Turf - Rear
TURF R 16X12.00-12
26X12.00-12
R3 Turf - Front
TURF F 16X7.50-8
18X8.5-10
Tire Size & Options
R1 (BAR) / R3 (TURF) / R4 (IND)
Front AG. (TURF, INDUSTRIAL) 18X8.5-10; Rear AG. (TURF, INDUSTRIAL) 26X12.00-12
R4 Industrial - Rear
26X12-12
26X12.00-12
R4 Industrial - Front
18X8.50-10
18X8.5-10
R1 Agricultural - Rear
BAR R 24X12.00-12
26X12.00-12
R1 Agricultural - Front
BAR F 16X7.50-9
18X8.5-10
Coolant Capacity
0.9 gal
2.0 (1.9) qts (L)
Crankcase Capacity
0.48 gal
5.2 (4.9) qts (L)
Fuel Tank Capacity
6.6 gal
6.7 gal.
Front Axle Fluid Capacity
2.6 qt
NOT FOUND
Transmission / Hydraulic System Capacity
3.6 gal
NOT FOUND
Loader Lift Height
72.7 in (under level bucket); 78.5 in (pivot pin)
71.9 in.
Loader Breakout Force
1,531 lb (at pivot pin, ground level)
1554 lb.
Quick Attach Loader System
SSQA
Standard Quick Attach Mounting System
Loader Lift Capacity (Full Height)
992 lb (at pivot pin)
608 lb.
Loader Model
—
FL6
Clutch
Dry single plate
Clutch-free (Hydrostatic)
No. of Speeds
2 Range
2
Transmission Type
Hydrostatic transmission (HST)
2-Range HST
Max Travel Speed (Forward)
7.8 mph
11.1 mph (17.8 km/hr.)
Max Travel Speed (Reverse)
Not Published
7.6 mph (12.2 km/hr.)
Differential Lock & Limited Slip Options
Mechanical rear differential lock
Std
Brakes
Wet disc
Wet Multi-disc
Steering
Hydrostatic
Hydrostatic Power Steering
Frame Type
Sub-compact tractor, 4WD
Not Published
Front Axle Type
Center pin front axle
Not Published
Drawbar Capacity
Not Published
7.7 kN / 1730 lb
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Standard adjustable seat
Suspension Seat ■
Wheelbase
53.1 (1,350)
55.1 in.
Overall Width
44.5 (1,130)
46.0 in.
Overall Length
94.2 (2,394)
—
Ground Clearance
8.3 in.
6.3 in.
Height to Top of ROPS
86.6 (2,200)
87.6 in.
Height to Top of Cab Model
Not Published
NOT FOUND — no source lists a cab-model height. The CT1021 is an open-station (two-post folding ROPS) machine; a Field Cab is a dealer-installed option only, and no cab height spec was found in any source.
Height to Top of ROPS (folded)
Not Published
NOT FOUND — no source explicitly lists the folded ROPS height. The only height figure available across all sources is Height (ROPS) [upright]: 87.6 in (2225 mm)
Min. Turn Radius without Brakes
86.6 (2,200)
100.0 in.
Overall Length with 3-Point Hitch
94.2 in
99.3 in.

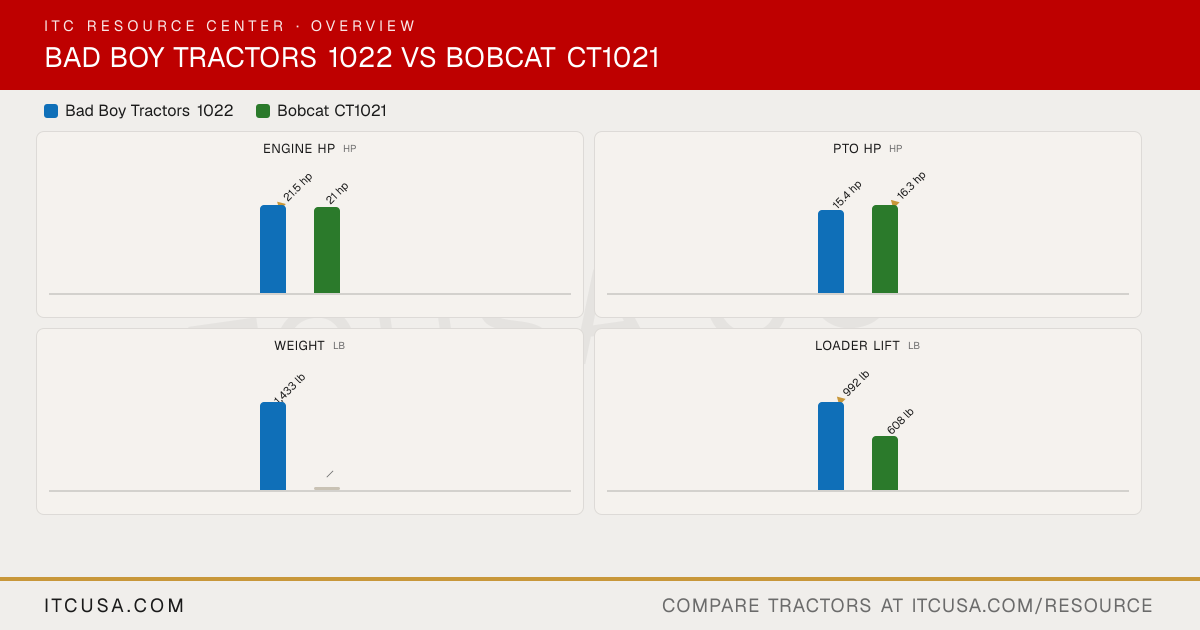

Bad Boy Tractors 1022 vs Bobcat CT1021: Quick Answers
Which has more horsepower, the Bad Boy Tractors 1022 or the Bobcat CT1021?
The Bad Boy Tractors 1022 leads on engine hp at 21.5 hp hp, compared to 21 hp hp for the Bobcat CT1021.
Which has more PTO horsepower, the Bad Boy Tractors 1022 or the Bobcat CT1021?
The Bobcat CT1021 leads on pto hp at 16.3 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.
Which has more loader lift capacity, the Bad Boy Tractors 1022 or the Bobcat CT1021?
The Bad Boy Tractors 1022 leads on loader lift at 992 lb lb, compared to 608 lb lb for the Bobcat CT1021.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the Bobcat CT1021?
The Bobcat CT1021 leads on 3-pt lift (24 in) at 700 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022.
